2-power 2P-LQ156M1JW01 - beeldscherm - 39,6 cm (15.6) - Full HD

Laptop technicians and repair specialists often need a dependable replacement screen for common 15.6-inch notebooks. The 2-POWER 2P-LQ156M1JW01 display panel steps in as a direct-fit solution for many popular models, bringing back crisp Full HD visuals without the cost of a new machine. Its matte surface keeps reflections at bay, making it suitable for offices, classrooms, and field work alike.

Key specifications

• Screen size: 15.6 inches (39.6 cm) diagonal
• Resolution: 1920 x 1080 (Full HD)
• Panel technology: TN (Twisted Nematic)
• Backlight: LED
• Surface: Matte (anti-glare)

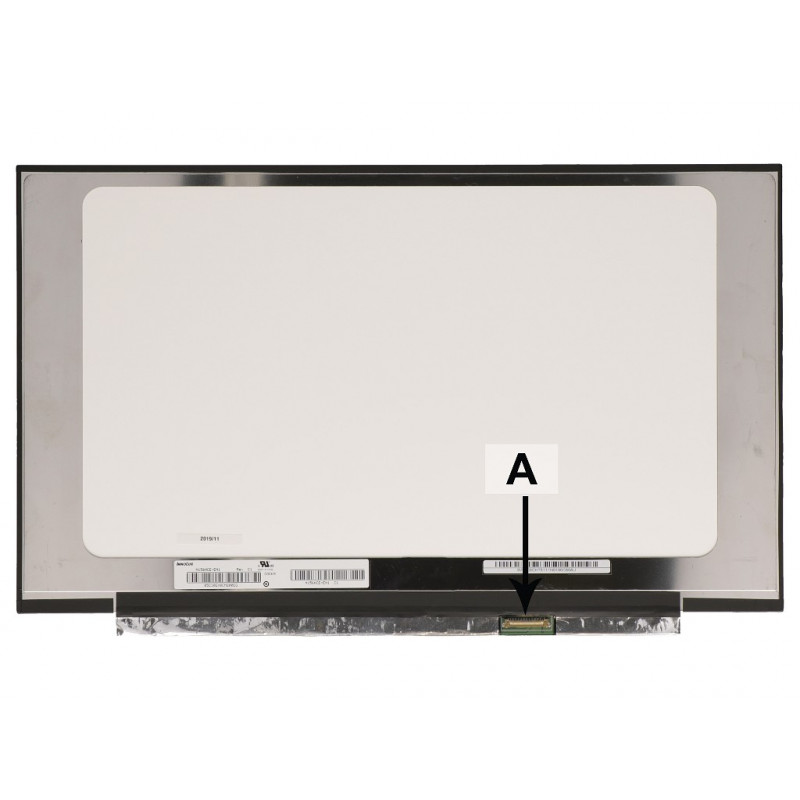

• Connector: 30-pin eDP (Embedded DisplayPort)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Response time: 8 ms
• Colour gamut: 45% NTSC
• Pixel density: ~141 PPI
• Touchscreen: No

Why choose it

This panel is engineered for straightforward installation, with a standard 30-pin eDP connector that matches a wide range of laptop motherboards. The LED backlight delivers consistent brightness and energy efficiency, while the matte coating reduces glare for comfortable viewing in varied lighting. TN technology offers fast response times, making it a practical choice for everyday productivity and multimedia.

Ideal use cases

• Replacing a cracked or faulty laptop screen
• Upgrading a laptop from HD to Full HD (if compatible)
• Refurbishing used notebooks for resale
• Building custom portable monitors with eDP driver boards

Good to know

Before ordering, confirm your laptop's original panel part number and connector type. This display is not a universal fit; compatibility depends on the exact model and mounting brackets. The 2-POWER 2P-LQ156M1JW01 is a bare panel only—no cables, bezel, or mounting hardware are included. Professional installation is recommended to avoid damage to the fragile connector and glass.
