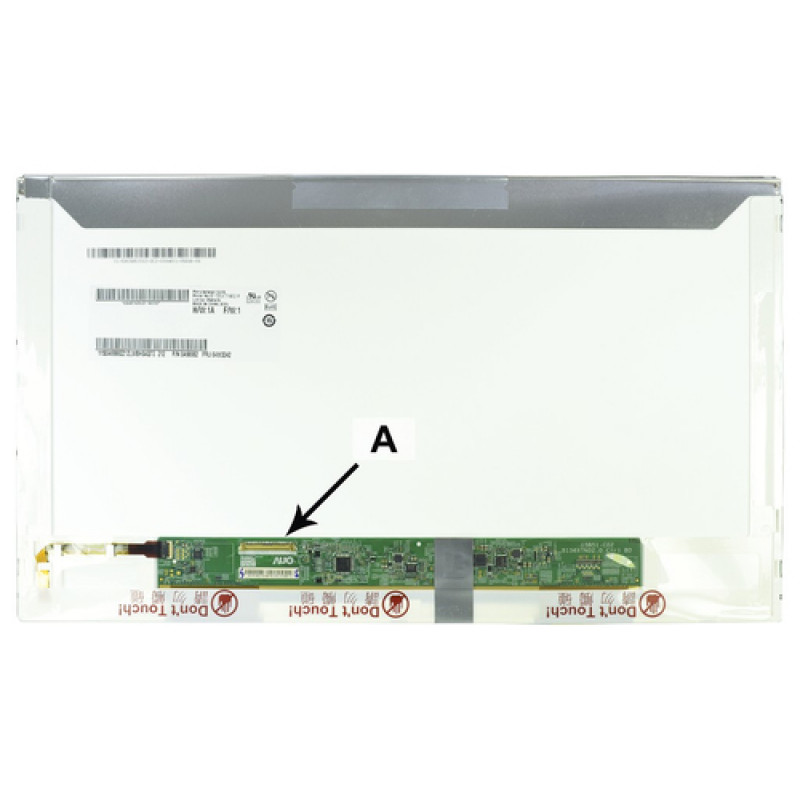

2-power 2P-LTN156AT02-D01 - beeldscherm - 39,6 cm (15,6 inch) - WXGA

Replacing a laptop display often means compromising on brightness or viewing angles, but the 2-POWER 2P-LTN156AT02-D01 sidesteps that trade-off with a 15.6-inch WXGA panel tuned for everyday clarity. Its LED backlight delivers a typical 200 cd/m², and the glossy TN surface keeps text and icons crisp under normal indoor lighting. The 40-pin LVDS connector makes it a direct fit for many notebooks originally equipped with an LTN156AT02 series panel, reducing guesswork during repairs.

Highlights

• 15.6-inch diagonal with 1366 x 768 WXGA resolution and 16:9 aspect ratio
• LED backlight for consistent brightness and lower power draw
• Glossy TN panel with 500:1 typical contrast ratio
• 40-pin LVDS interface for straightforward integration
• 60 Hz refresh rate and 8 ms typical response time
• 45% NTSC colour gamut for accurate everyday colour

In daily use

This panel suits office work, web browsing, and video playback where a standard 15.6-inch form factor is required. The 45°/45° horizontal and 20°/40° vertical viewing angles are typical for TN technology, so the image remains readable from a centred position. The glossy finish enhances perceived contrast in controlled lighting, while the LED backlight helps extend battery runtime compared to older CCFL panels.

Full specifications

• Display size: 15.6 inches
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Backlight technology: LED
• Surface type: Glossy
• Panel type: TN (Twisted Nematic)
• Connector type: 40-pin LVDS
• Refresh rate: 60 Hz
• Brightness (typical): 200 cd/m²
• Contrast ratio (typical): 500:1
• Response time (typical): 8 ms
• Viewing angle (H/V): 45°/45° left/right, 20°/40° up/down
• Colour gamut: 45% NTSC

Final note

The 2-POWER 2P-LTN156AT02-D01 is a dependable replacement screen for compatible 15.6-inch laptops, balancing standard WXGA resolution with LED efficiency and a common LVDS connection.
