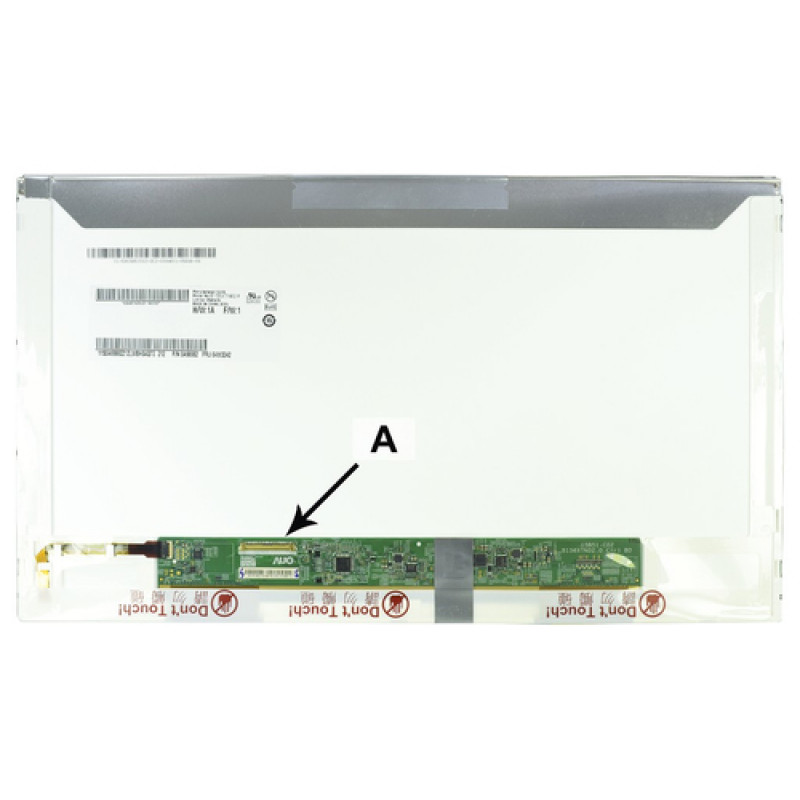

2-power 2P-LTN156AT22-001 - 39,6 cm (15,6) - WXGA

When a laptop screen cracks or fails, a direct replacement panel restores the device to full functionality. The 2-POWER 2P-LTN156AT22-001 is a 15.6-inch WXGA display engineered for notebooks that originally shipped with the Samsung LTN156AT22-001 panel. It suits technicians, IT departments, and individual users who need a dependable screen swap without compromising on clarity or colour.

Key specifications

• Screen size: 15.6 inches (39.6 cm) diagonal
• Resolution: WXGA 1366 x 768, 16:9 aspect ratio
• Panel type: TFT-LCD (TN) with LED backlight
• Surface: Glossy finish for vibrant visuals
• Connector: 40-pin LVDS
• Brightness: 220 cd/m² typical
• Contrast ratio: 500:1 typical
• Response time: 8 ms typical
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Colour gamut: 45% NTSC
• Refresh rate: 60 Hz
• Pixel density: ~100 PPI
• Mounting: Side brackets

Why choose it

This panel matches the original Samsung LTN156AT22-001 specification, ensuring a straightforward installation and consistent image quality. The glossy coating enhances contrast and colour saturation, making it ideal for everyday productivity, web browsing, and video playback. With a standard 40-pin LVDS interface, it integrates seamlessly into compatible laptop chassis.

Ideal use cases

• Replacing a damaged or dead screen in laptops using Samsung LTN156AT22-001 or equivalent 15.6" WXGA panels
• Refurbishing business notebooks for resale or internal redeployment
• Upgrading a matte display to a glossy one for improved media viewing
• DIY repair projects where a reliable, cost-effective panel is required

Good to know

The panel is compatible with a range of laptop models that utilise the Samsung LTN156AT22-001 or compatible 15.6-inch WXGA screens. Always verify the original panel model and connector type before ordering. The side brackets allow for secure mounting in most standard 15.6-inch laptop lids. No additional cables or adapters are included; the existing LVDS cable from the laptop is reused.
