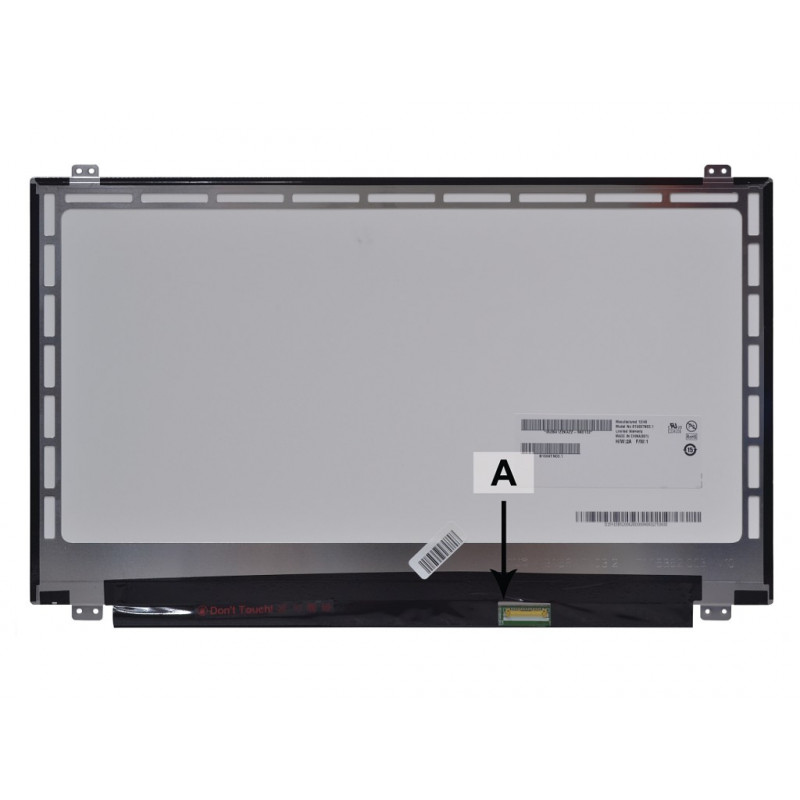

2-power 2P-LTN156AT33 - beeldscherm - 39,6 cm (15,6) - WXGA

When your laptop screen cracks or fades, a direct replacement panel restores clarity and keeps your workflow moving. The 2-Power 2P-LTN156AT33 is a 15.6-inch WXGA display built for Samsung LTN156AT33-compatible notebooks, delivering a bright 200 cd/m² image with a glossy finish that makes colours pop in everyday office and home environments.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD), 16:9 aspect ratio
• Panel technology: TN, a-Si TFT-LCD, LED backlight
• Surface: Glossy (glare)
• Brightness: 200 cd/m² typical
• Contrast ratio: 500:1 typical
• Response time: 8 ms typical
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Colour support: 262K (6-bit)
• Connector: 40-pin LVDS, bottom left position
• Refresh rate: 60 Hz
• Power consumption: 4.5 W typical
• Mounting: side brackets with screw holes

Why choose it

This panel is a cost-effective way to bring a damaged laptop back to life. The LED backlight offers consistent brightness and energy efficiency, while the glossy coating enhances perceived contrast for sharper text and vivid images. Installation is straightforward thanks to standard side mounting brackets and a 40-pin LVDS connector that matches many Samsung-based laptops.

Ideal use cases

• Replacing a cracked or dim original screen in Samsung LTN156AT33 laptops
• Upgrading a compatible notebook to a brighter, glossy display
• Refurbishing used laptops for resale or internal redeployment
• DIY repair projects where a reliable, exact-fit panel is needed

Good to know

The 2-Power 2P-LTN156AT33 is a direct replacement for the Samsung LTN156AT33 panel and equivalent models. Always verify your laptop's original screen model and connector position before ordering. The panel does not include a cable or inverter; reuse your existing hardware. Handle with care — LCD panels are fragile and sensitive to static discharge.
