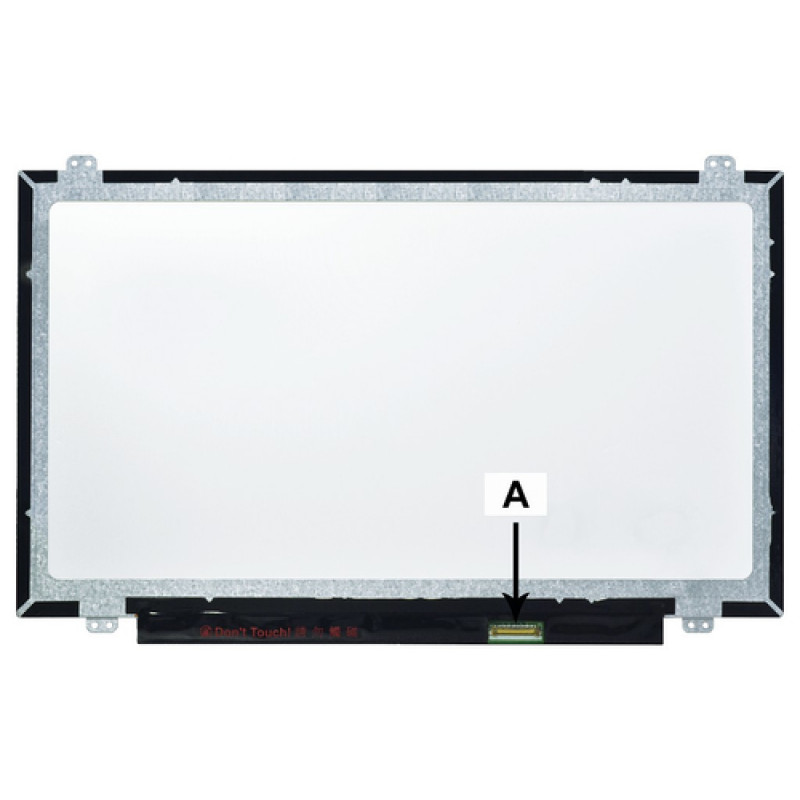

2-power 2P-M2JM1 - 35,6 cm (14) - WXGA

A 14-inch WXGA laptop display panel delivering crisp, bright visuals with a 1366x768 native resolution and LED backlighting. This TN panel offers a 60 Hz refresh rate, 200 cd/m² brightness, and a 400:1 contrast ratio, making it a reliable replacement for compatible notebooks. The 40-pin LVDS connector ensures straightforward installation, while the glossy finish enhances colour vibrancy for everyday computing.

Advantages

The LED backlight provides energy efficiency and consistent brightness across the screen. With a 6-bit colour depth, it reproduces 262,144 colours for clear images and text. The 16:9 aspect ratio is ideal for widescreen content, and the 8 ms response time reduces motion blur during video playback. The universal 40-pin LVDS interface simplifies compatibility with a wide range of laptops.

Suitable for

• Replacing damaged or faulty 14-inch WXGA laptop screens
• Upgrading older laptops to a brighter LED-backlit panel
• DIY repairs and professional refurbishment projects
• Systems requiring a standard 40-pin LVDS connection

Key specifications

• Screen size: 14 inches (35.6 cm)
• Native resolution: 1366 x 768 (WXGA)
• Panel type: TN with LED backlight
• Connector: 40-pin LVDS
• Surface: Glossy
• Brightness: 200 cd/m²
• Contrast ratio: 400:1
• Response time: 8 ms
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Colour support: 262,144 colours (6-bit)

Recommendations

Before ordering, verify your laptop's screen size, resolution, and connector type. This panel is compatible with many 14-inch WXGA models using a 40-pin LVDS interface. Handle the display by its edges and use proper anti-static precautions during installation.
