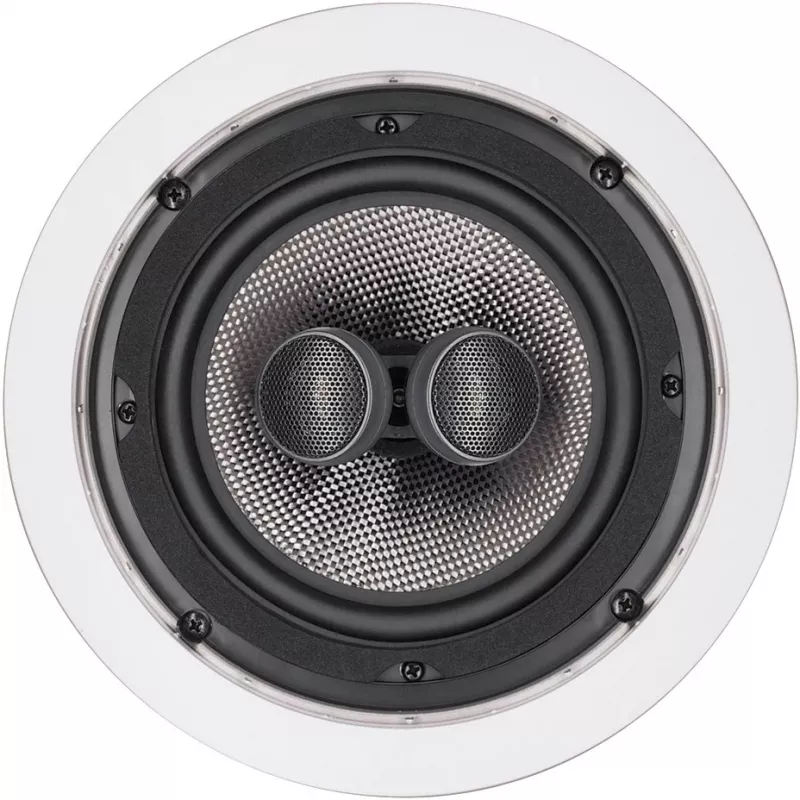

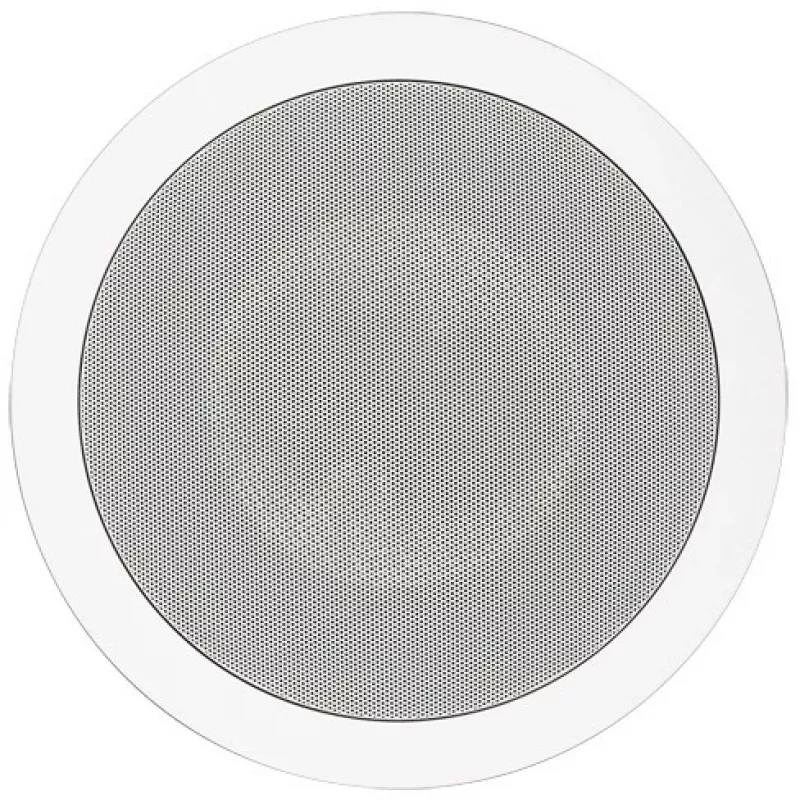

2-weg luidspreker Magnat Interior IC 62 75 W

The Magnat Interior IC 62 is a compact 2-way built-in ceiling loudspeaker designed for clear and balanced sound in residential and commercial interiors. It delivers 75 W RMS power via a wired connection and covers a frequency range of 35–35,000 Hz with an impedance of 8 Ω and 90 dB sensitivity. The bass/midrange cone uses a carbon–glass-fibre mix for high stability and dynamic reproduction, and the white finish integrates unobtrusively into most ceilings.

Advantages

The coaxial design with three drivers produces coherent, well-defined sound across frequencies while the carbon–glass-fibre bass/mid-range cone improves stability and transient response. Two built-in coaxial tweeters allow selection between wider dispersion or more focused sound direction. The speaker mounts quickly and securely using a simple, sophisticated fastening system.

Suitable for

• Background and foreground music in homes
• Multi-room audio and ceiling installations
• Retail spaces, offices and hospitality areas
• Areas requiring discreet, in-ceiling loudspeakers

Key specifications

• Type: 2-way built-in ceiling loudspeaker
• Power (RMS): 75 W
• Frequency response: 35–35,000 Hz
• Impedance: 8 Ω
• Sensitivity: 90 dB
• Drivers: three drivers including coaxial tweeter configuration
• Connectivity: Wired
• Colour: White

How to use

Plan the ceiling cut-out and wiring route according to room layout and amplifier requirements. Connect the speaker to a compatible amplifier or multi-room system using the wired terminals, observing correct polarity. Choose the desired tweeter circuit configuration to obtain either broader sound dispersion or more focused directionality. Insert the speaker into the ceiling aperture and secure it with the integrated fastening system until the unit is locked in place.

Recommendations

For best results, pair the Magnat Interior IC 62 with an amplifier that matches the 75 W RMS nominal power and 8 Ω impedance. Position speakers to achieve even coverage and avoid placing them too close to large reflective surfaces; use the adjustable tweeter setting to optimise sound distribution for the room.
