2N Telecommunications 2N - bedieningspaneel - bekabeld - zwart

Engineered for secure access control, this 2N keypad module delivers reliable PIN-based entry with a rugged IP54 and IK08 rated build. The 12-key numeric pad features white LED backlighting for clear visibility in low-light conditions, while the high-durability plastic housing withstands harsh environments from -40°C to +60°C. Designed as a seamless expansion for 2N Access Unit frames, it connects via the internal bus—no external power supply needed.

Overview

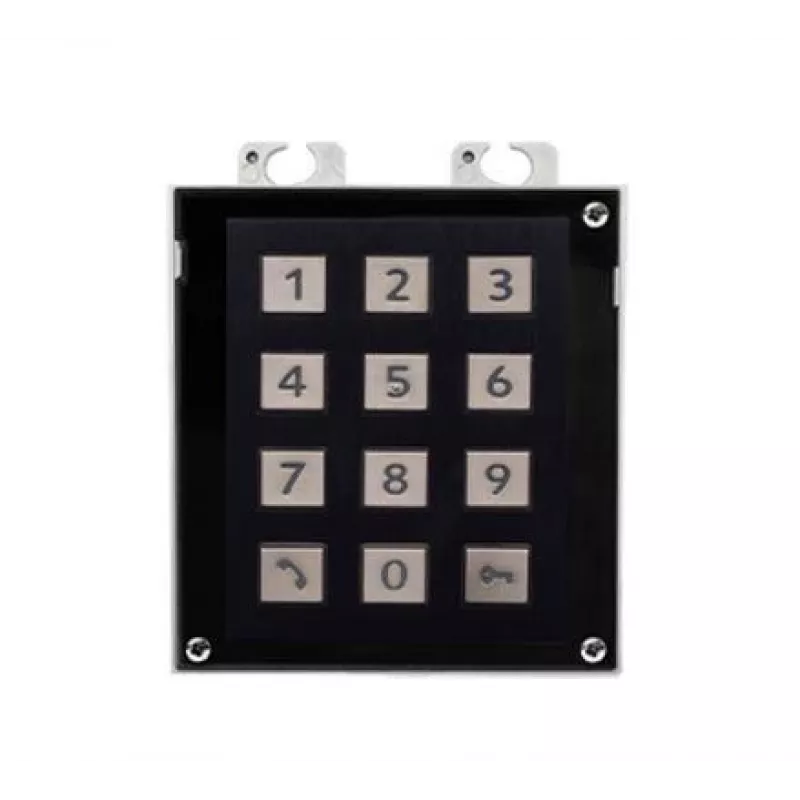

The 2N Access Unit Keypad Module (MPN 9155031B) is a wired access control keypad that integrates directly into compatible 2N Access Unit frames. It provides a tactile numeric interface for PIN code authentication, supporting silent alarm functionality for discreet duress signaling. The module is intended for indoor or outdoor installation within a suitable 2N frame, offering both flush and surface mounting options depending on the frame configuration.

What stands out

• Rugged IP54 and IK08 protection against dust, water, and impact
• White LED backlit keys for enhanced visibility in dark environments
• Powered directly by the 2N Access Unit main unit—no separate PSU required
• Supports silent alarm for covert emergency signaling
• Wide operating temperature range from -40°C to +60°C

Technical details

• Type: Access control keypad module
• Connectivity: Wired (internal 2N Access Unit bus)
• Keypad: 12 numeric keys with white LED backlighting
• Ingress protection: IP54
• Impact protection: IK08
• Operating temperature: -40°C to +60°C
• Power supply: From 2N Access Unit main unit
• Material: High-durability plastic
• Compatibility: 2N Access Unit frames
• Authentication: PIN code entry, silent alarm support
• Mounting: Flush or surface mount (requires appropriate 2N frame)

Our verdict

A robust and reliable keypad module for expanding 2N access systems, offering excellent durability and seamless integration. Ideal for both indoor and outdoor installations where secure PIN entry is required.
