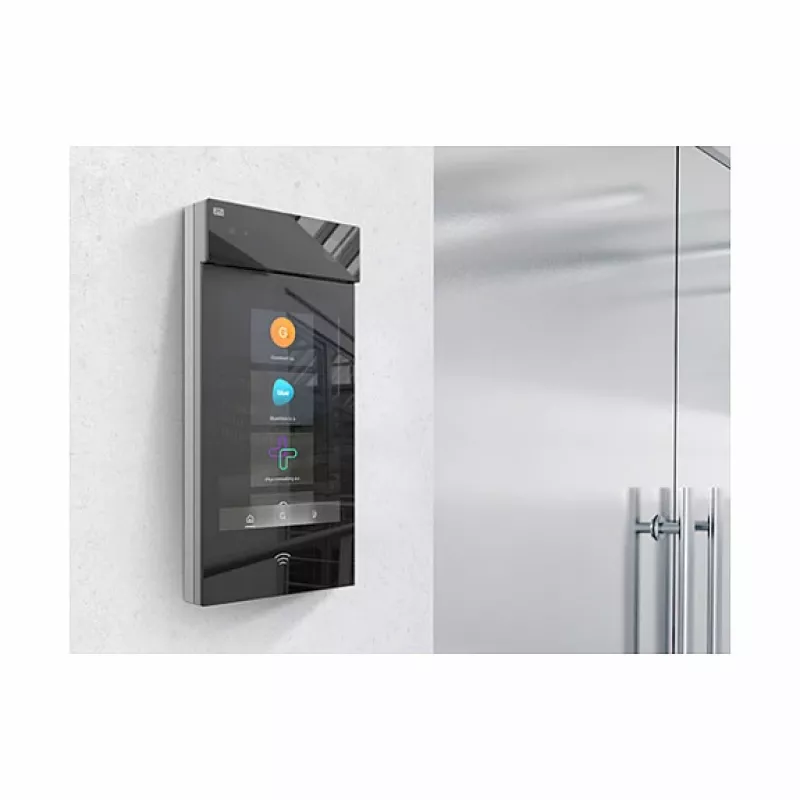

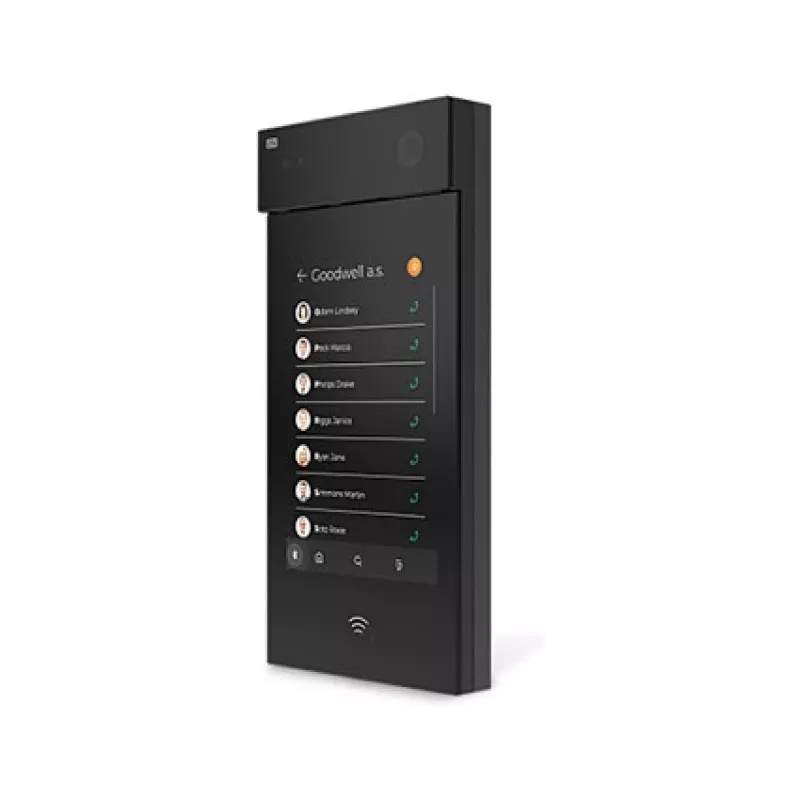

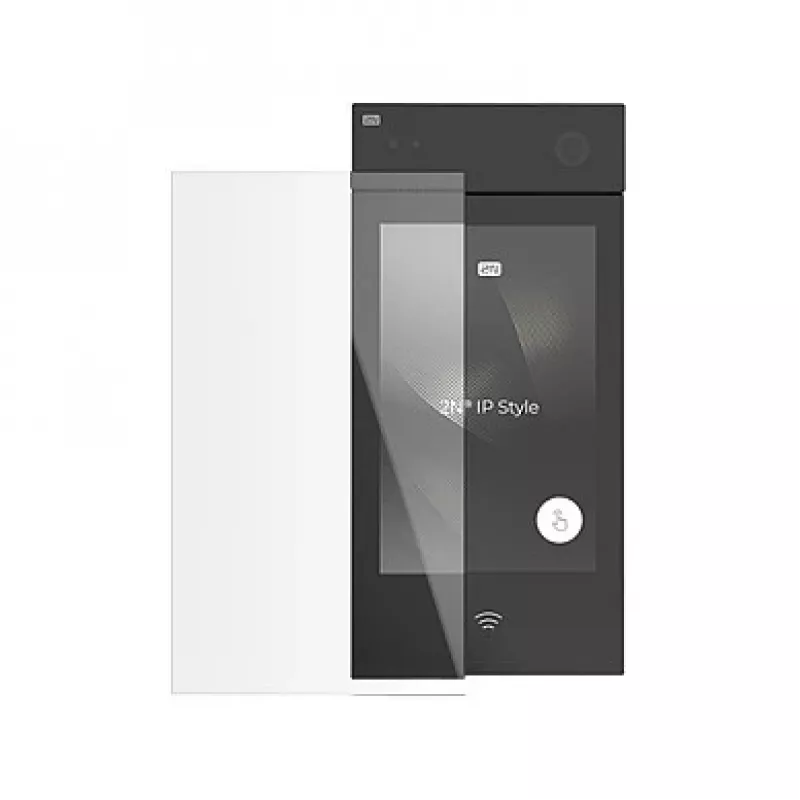

Videodeurintercom 2N IP STYLE 10,1 inch zwart IPS-display 1280x800

The 2N IP STYLE video intercom system features a 10.1" IPS display with 1280 x 800 pixel resolution and supports high-definition video up to 2560 x 1920 at 30 fps. Designed for both indoor and sheltered outdoor installation, the unit delivers clear visual identification and two-way communication. Built to withstand daily use, the device combines modern touchscreen operation with network connectivity options suitable for residential buildings, offices, and multi-tenant entrances.

Advantages

The 10.1" IPS display provides wide viewing angles and consistent color reproduction for reliable identification in varied lighting. High-definition video support allows integration with high-resolution cameras and monitoring systems. The unit is rated IP65 for dust and water resistance and IK08 for impact protection, increasing durability in public access areas. Integrated audio with a 4W speaker and support for multiple voice codecs ensures intelligible voice communication across network environments. Network-capable features enable remote access, system integration, and compatibility with standard VoIP infrastructures.

Suitable for

• Residential building entrances and lobby reception
• Apartment complexes and multi-tenant access control
• Office buildings and business reception areas
• Secure entry points requiring visual identification and recording
• Retrofit projects replacing legacy intercoms with IP-based systems

Key specifications

• Display: 10.1" IPS, 1280 x 800 pixels
• Video support: up to 2560 x 1920 pixels at 30 fps
• Durability ratings: IP65 dust/water resistance, IK08 impact protection
• Audio: integrated 4W speaker; wide codec support for VoIP
• User interface: capacitive touchscreen with responsive controls
• Network: IP-based connectivity with support for standard SIP/VoIP protocols
• Power options: PoE support (Power over Ethernet) and auxiliary power input

How to use

Mount the unit according to installation guidelines for wall or panel mounting, ensuring network and power connections are available. Configure network settings and SIP/VoIP accounts through the device web interface or accompanying management software. Pair the intercom with cameras, access controllers, and monitoring systems as needed. Use the touchscreen to accept calls, view live video, and control access functions. Regularly verify firmware and configuration backups to maintain system reliability.

Recommendations

Install the device in a sheltered location or use compatible weather protection when placed in exposed areas. For best video quality, connect to a stable network with sufficient bandwidth and use supported high-resolution cameras. Regular maintenance checks of seals and cable entries are advised to preserve IP65 and IK08 protection levels.
