3,5-inch inbouwframe-uitbreiding Sharkoon zwart

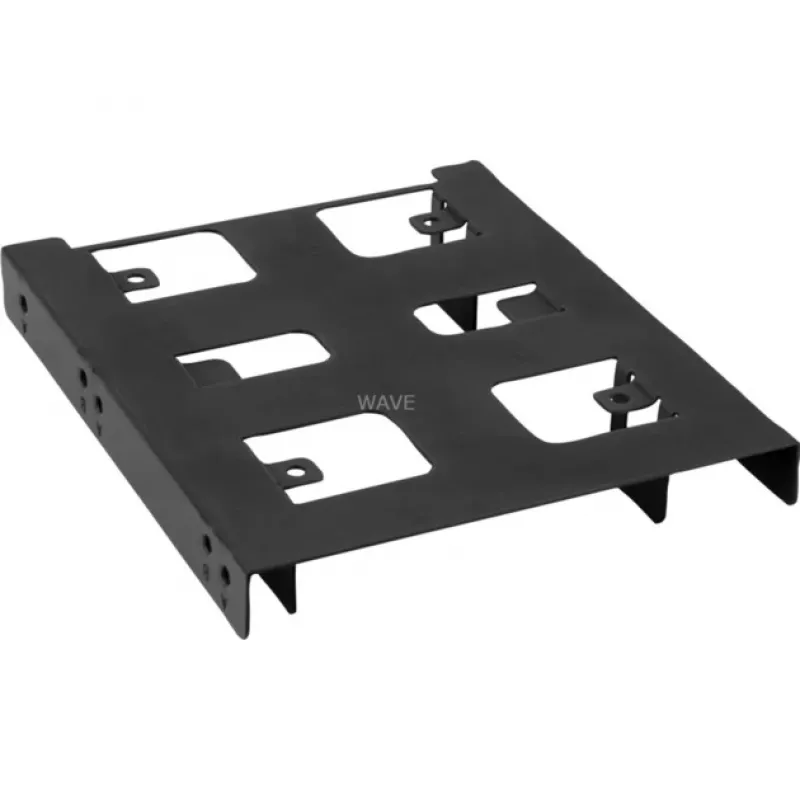

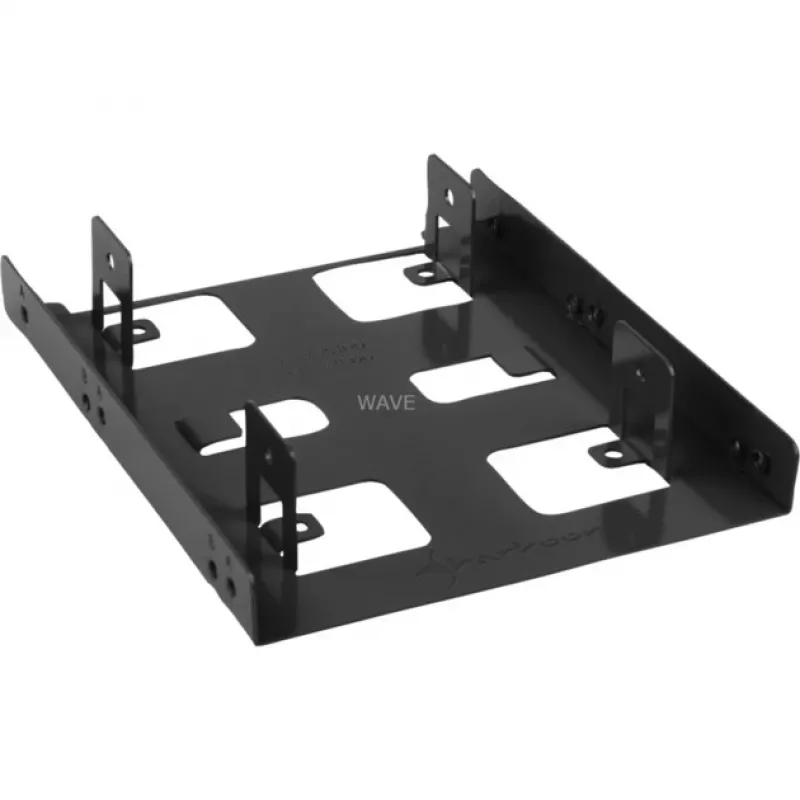

The 3.5" BayExtension is a metal mounting frame that lets you install up to two 2.5" hard drives or SSDs into a 3.5" drive bay of a PC case. It fits standard internal 3.5" hard drive bays as well as bays intended for floppy or card readers and is compatible with most quick-lock systems. The frame's underside is shortened to avoid interference with tilted SATA plugs, ensuring proper connection to installed drives.

Advantages

The metal construction provides stable support for two 2.5" drives while taking up a single 3.5" bay. Compatibility with a wide range of drive bays and quick-lock systems simplifies installation. The shortened underside design prevents problems with angled SATA connectors, allowing secure cable connection without modification.

Suitable for

• Installing two 2.5" HDDs or SSDs into one 3.5" bay
• Upgrading storage in desktop PCs with limited drive bays
• Using bays originally intended for floppy drives or card readers

Key specifications

• Manufacturer: Sharkoon
• Product name: 3.5" BayExtension Sharkoon Black
• Material: Metal mounting frame
• Supported drives: Up to two 2.5" HDD/SSD
• Fits: 3.5" internal drive bays (including floppy/card reader bays)
• Compatibility: Most quick-lock systems
• Product colour: Black
• Weight: 0.088 kg
• MPN/EAN: 4044951013586

How to use

Mount the 2.5" drives to the BayExtension using the appropriate screws or tool-free fittings, then insert the assembled frame into a free 3.5" bay in the PC case. Secure the frame in the bay following your case's mounting method or quick-lock system. Connect SATA data and power cables to each installed drive; the shortened underside accommodates angled SATA plugs to ensure unobstructed connections.

Recommendations

When installing drives, power off the PC and ground yourself to prevent electrostatic discharge. Verify the orientation of SATA connectors before final insertion and ensure the frame is firmly fixed in the 3.5" bay to avoid vibration.
