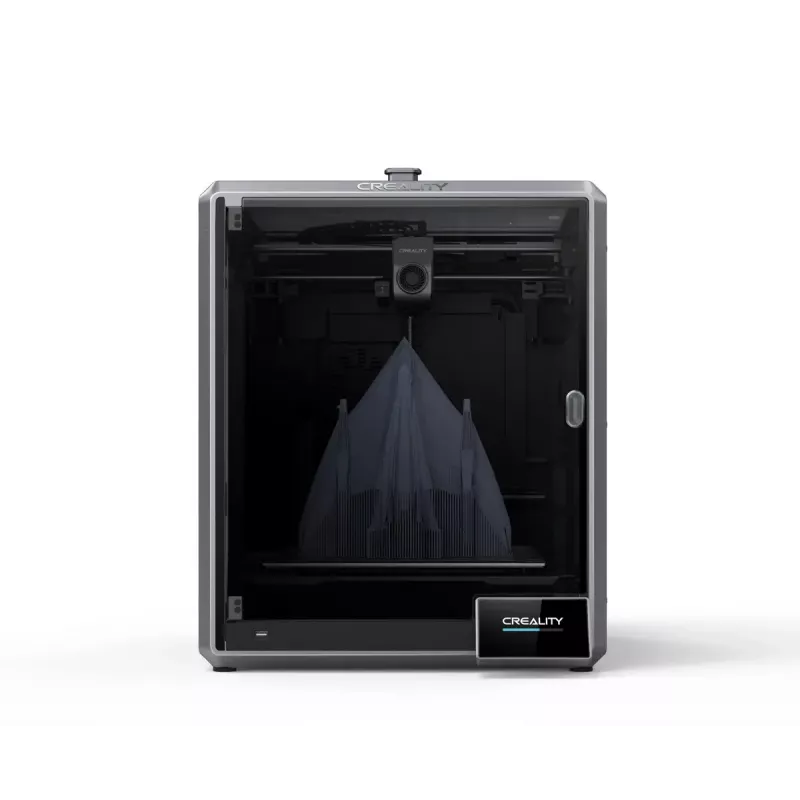

3D-printer Creality K1 Max – bouwvolume 300×300×300 mm, laagdikte 0,10–0,35 mm, touchbediening, zwart

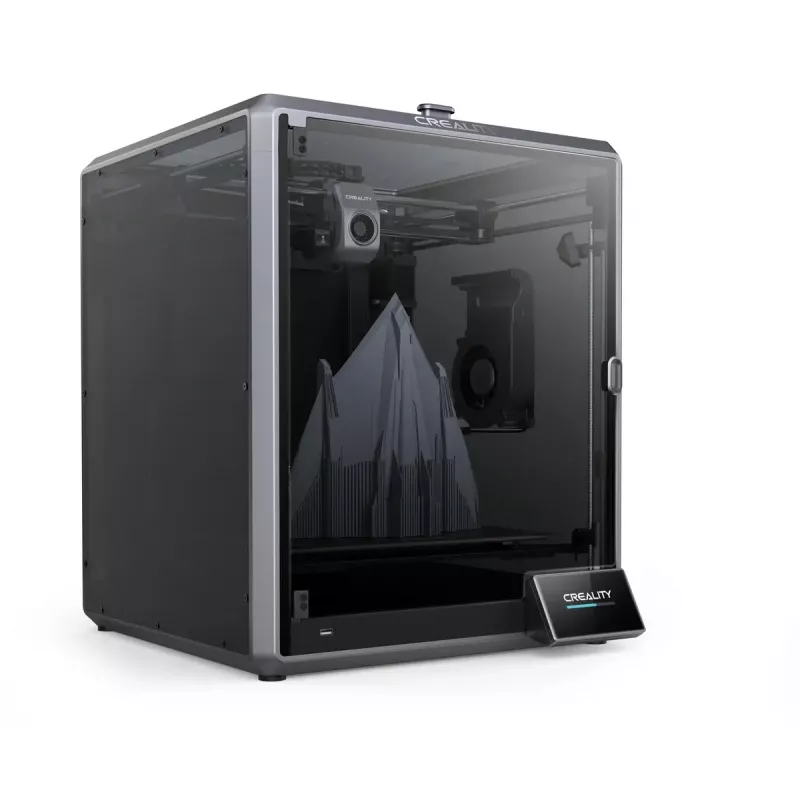

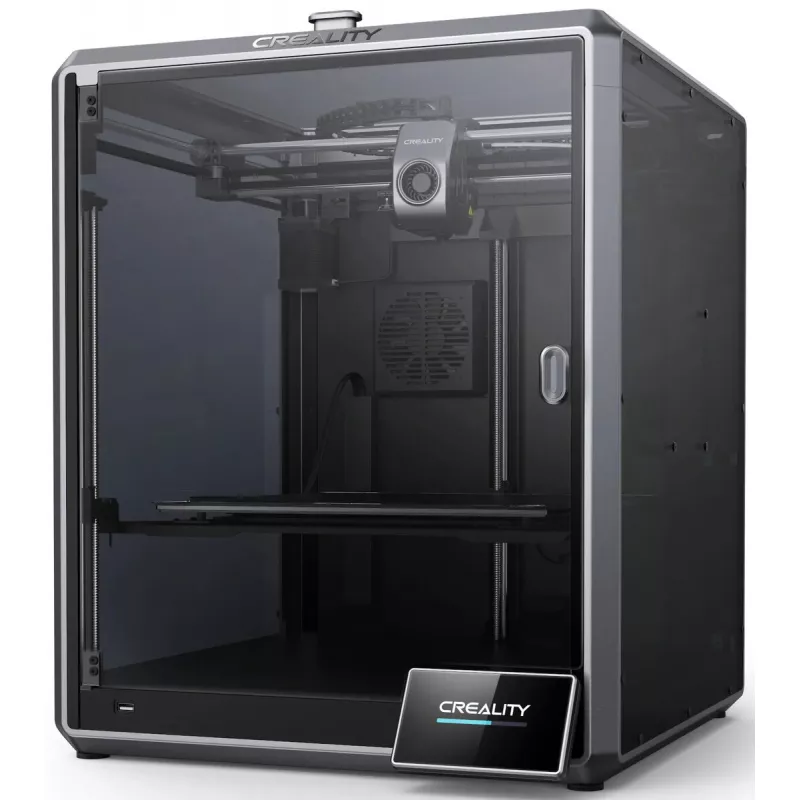

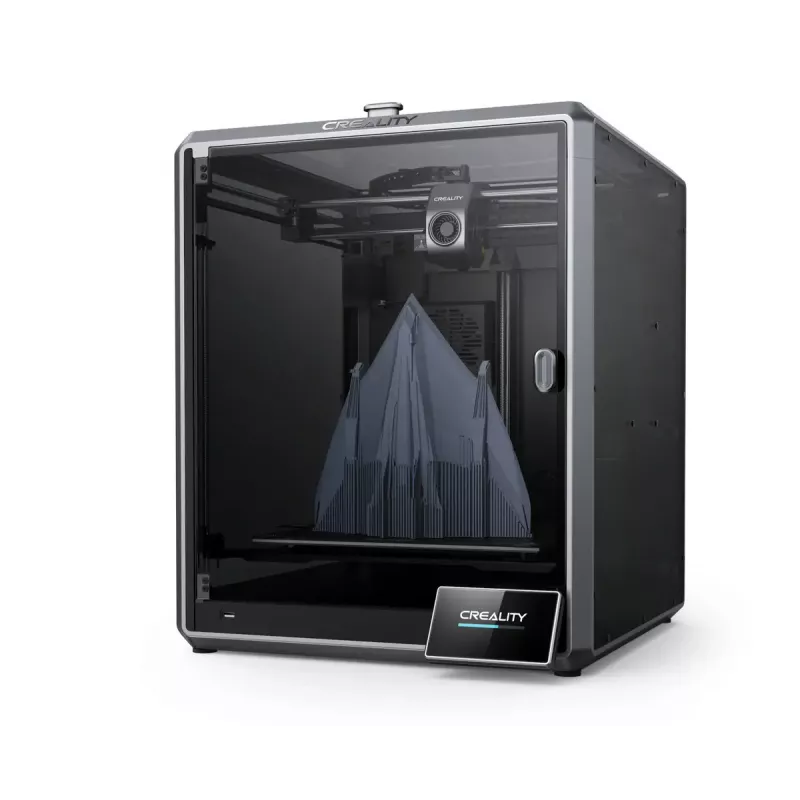

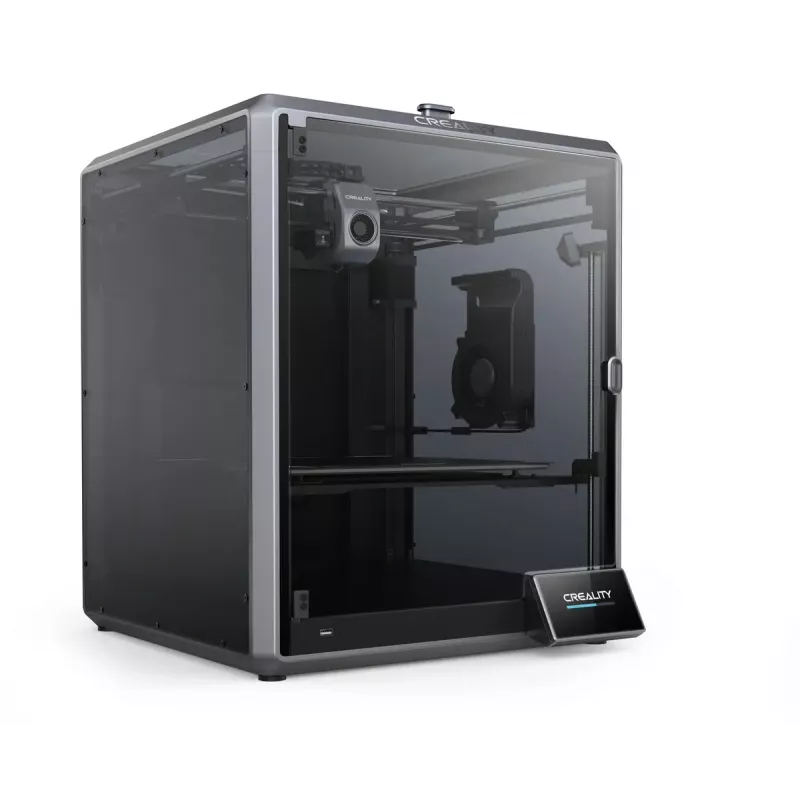

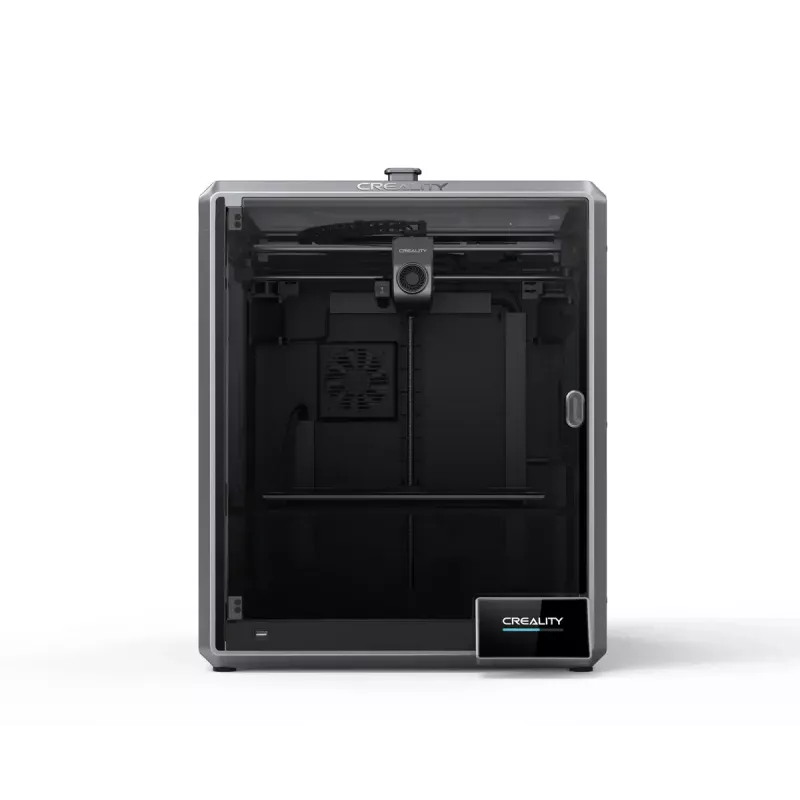

Creality K1 Max is a desktop FDM 3D printer with a large 300×300×300 mm build volume and a layer thickness range from 0.10 to 0.35 mm. Designed for high-speed production, the K1 Max pairs a Core XY motion system and a lightweight 190 g printhead to achieve very fast travel and extrusion, while a rigid die-cast aluminum alloy frame maintains stability and print quality. The printer includes an AI LiDAR for automatic first-layer scanning, an AI camera for real-time monitoring and error alerts, a touch control panel, and built-in connectivity for networked operation.

Advantages

The K1 Max delivers exceptional printing speed with a top travel velocity of up to 600 mm/s and a reported high volumetric flow capability, supported by a ceramic heater and a dual-gear direct extruder capable of strong extrusion force. Fast heating of the hotend (to 200°C in about 40 s), a titanium-alloy heatbreak and copper-alloy nozzle extend material compatibility up to 300°C. Dual fans provide targeted model cooling to reduce stringing and warping, enabling better bridging and overhang performance. Built-in AI features (LiDAR and camera) reduce setup errors and provide automated alerts, while Creality OS and Creality Print 4.3 streamline slicing, monitoring and remote control.

Suitable for

• Rapid prototyping and design verification
• Functional parts and mechanical components
• Hobbyist and maker projects requiring large build volume
• Small-batch production and clustered print farms

Key specifications

• Build volume: 300 × 300 × 300 mm
• Layer thickness: 0.10–0.35 mm
• Typical power consumption: 1000 W (AC 100–240 V, 50–60 Hz)
• Printhead mass: ~190 g (lightweight design for reduced inertia)
• Maximum supported nozzle temperature: up to 300°C
• Filament diameter: 1.75 mm
• Motion system: Core XY
• Cooling: dual fans (printhead fan with ducts + 18 W chamber fan)
• Frame: unibody die-cast aluminum alloy
• Onboard storage: 8 GB ROM (stores model files locally)
• Connectivity: touch display, Wi‑Fi, RJ45 Ethernet, USB
• Printer dimensions (approx.): 435 × 462 × 526 mm
• Weight: 18 kg
• Colour: Black

How to use

Install the printer on a stable, level surface and connect it to power and your local network via Wi‑Fi or Ethernet if remote monitoring is required. Load 1.75 mm filament into the dual‑gear direct extruder following the manufacturer’s loading procedure, set the desired print parameters in Creality Print 4.3 or a compatible slicer, and begin a print from the touchscreen, USB or via Creality Cloud. Allow the AI LiDAR to perform the first‑layer scan and let the system complete any automatic adjustments before starting high‑speed prints. Monitor prints using the integrated AI camera or the Creality app when available.

Recommendations

For reliable high-speed results, use quality filament suited to higher extrusion temperatures, ensure the printhead and build chamber are free of obstructions, and verify the first-layer scan completes successfully before long runs. When running multiple printers in a clustered setup, keep firmware and Creality Print software updated and maintain a stable network connection for consistent remote management.
