3M warmtekrimp kabelverbindingsset 91-AHSC 16/5N 1 set

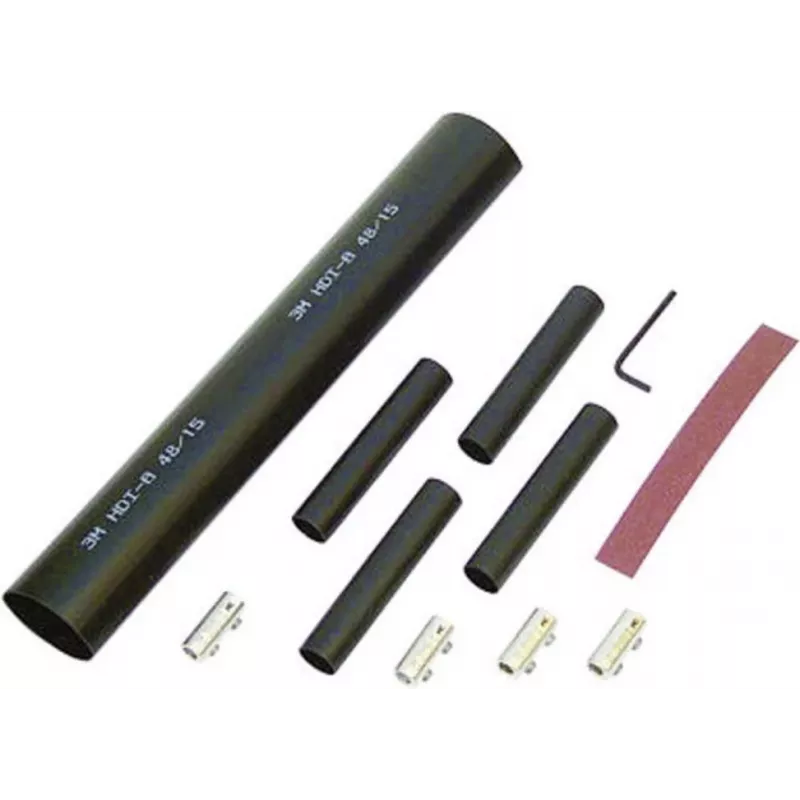

The 3M Heat Shrink Cable Joint Kit 91-AHSC 16/5N is a professional-grade solution for low voltage power cable joints. Designed for 3, 4, or 5-core cables with conductor cross-sections from 16 to 50 mm², this kit includes mechanical screw connectors (shear bolt type) and heat shrink tubing for a moisture-proof, water-tight seal. Suitable for indoor, outdoor, and direct burial applications, it meets CENELEC HD 623 S1 and VDE 0278 standards.

Advantages

Reliable and easy to install, the kit provides a durable joint that withstands harsh environmental conditions. The heat shrink tubing offers UV and chemical resistance, while the shear bolt connectors ensure a secure mechanical connection without special tools.

Suitable for

• Low voltage power cables (0.6/1 kV)
• PVC, XLPE, and EPR insulated cables
• Indoor, outdoor, and direct burial installations
• Straight joints for 3, 4, or 5-core cables

Key specifications

• Product Type: Heat Shrink Cable Joint Kit
• Voltage Rating: 0.6/1 kV
• Conductor Cross-Section: 16 - 50 mm²
• Number of Cores: 3, 4, 5
• Connector Type: Mechanical Screw Connectors (Shear Bolt)
• Material: Cross-linked Polyolefin (Heat Shrink Tubing)
• Operating Temperature: -20°C to +90°C
• Standards: CENELEC HD 623 S1, VDE 0278
• Quantity per Pack: 1 joint kit

Recommendations

For best results, follow the installation instructions provided. Ensure cables are clean and dry before application. Use a heat gun for uniform shrinking.
