A-LAN uitgebreide netwerkkabeltester met PoE-, tracing-, lengtemeting- en doorgangstestfuncties met display ALANTEC

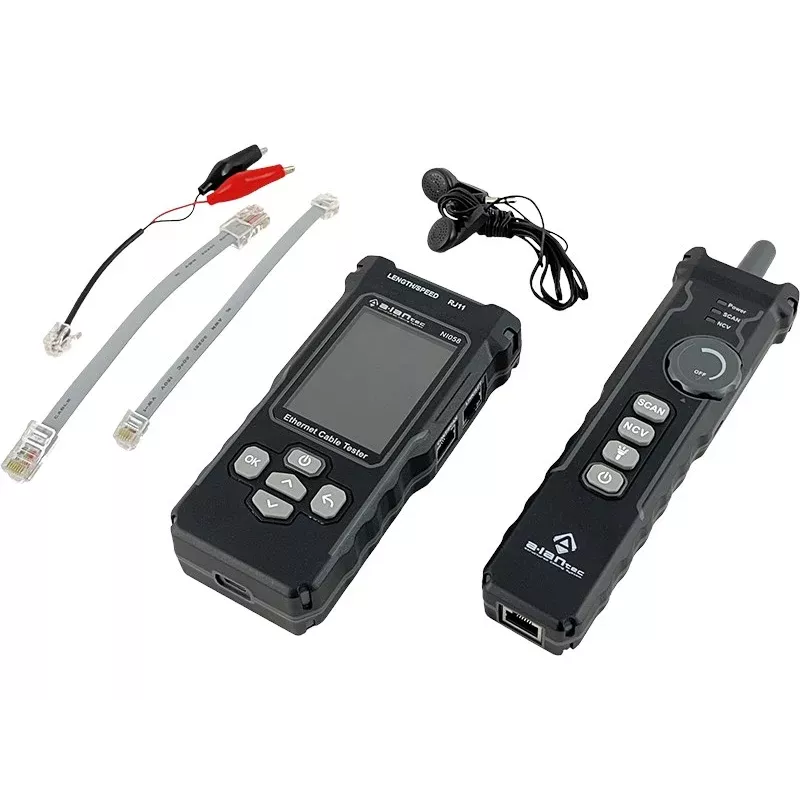

Network cable tester with PoE detection, tracing, length measurement and continuity testing. This advanced tool from A-LAN ALANTEC verifies RJ45, RJ11 and BNC cabling with precision, identifying wiremap faults, measuring cable length up to 300 meters, and detecting PoE parameters such as voltage and polarity. Its backlit LCD and audible alarms make it indispensable for installers and network administrators.

Advantages

The ALANTEC tester combines multiple functions in one portable device, eliminating the need for separate tools. It quickly locates cable faults, verifies PoE availability, and traces cables using a 1 kHz tone generator. Auto power-off after 10 minutes preserves battery life, while the included remote unit and carrying case enhance field usability.

Suitable for

• Network installation and maintenance technicians
• IT support staff troubleshooting Ethernet and telephone lines
• Security system installers working with coaxial cables
• PoE device deployment and verification

Key specifications

• Tests UTP/STP (RJ45), RJ11/RJ12, and coaxial (BNC) cables
• Wiremap: detects open, short, cross, split, and reverse pairs
• Length measurement: 1–300 m (3–984 ft) with ±2 m accuracy
• PoE detection: IEEE 802.3af/at, voltage, polarity, PSE type
• Cable tracing: digital and analog tone at 1 kHz
• Backlit LCD display with audible alarm
• Voltage protection up to 60V DC
• Powered by 3x AAA (main) and 1x 9V (remote) batteries (not included)

Recommendations

For reliable network diagnostics, pair this tester with quality patch cables and keep spare batteries on hand. The included carrying case protects the device during transport, making it a smart investment for professionals who demand accuracy and durability.
