Aansluitdoos Hikvision DS-1280ZJ-DM46 (zwart)

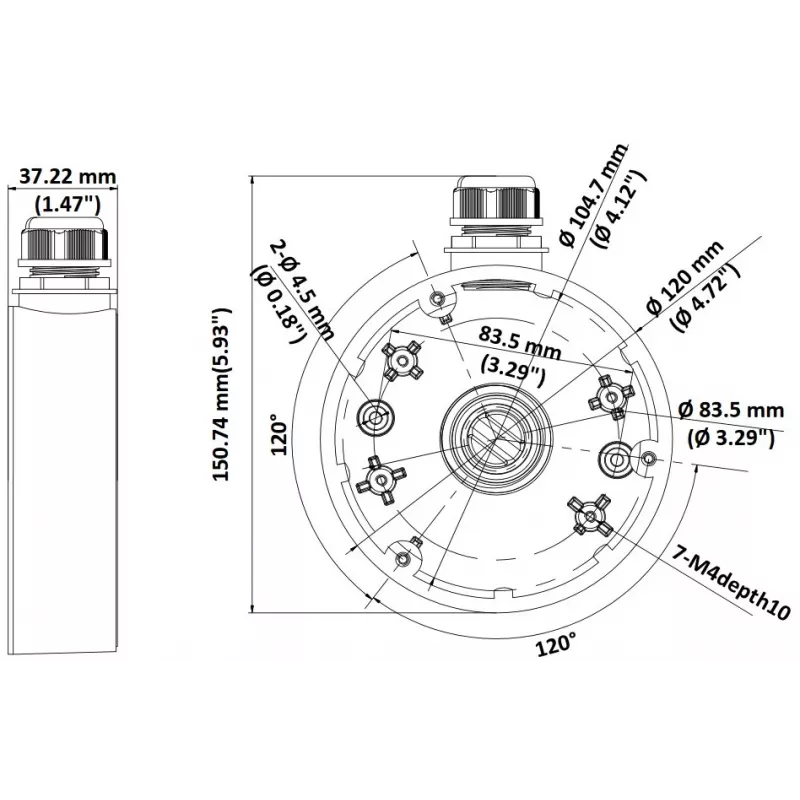

The Hikvision DS-1280ZJ-DM46(Black) junction box is a compact outdoor mounting accessory designed to support and protect surveillance devices. Constructed to accommodate a maximum load of 4.5 kg, the unit has a diameter of 12 cm, a height of 36.2 mm and a net weight of approximately 250 g. Its black finish provides a discrete appearance for exterior camera installations while the shape and size are intended for straightforward attachment to compatible mounting surfaces and accessories.

Advantages

The junction box combines a compact footprint with sufficient load capacity for many dome and small bullet cameras. Its lightweight construction simplifies handling during installation and reduces the load on mounting points. The black color allows the junction box to blend with many camera housings and outdoor environments. Dimensioning is suited for cable routing and connection concealment, providing a tidy installation with reduced exposure of wiring.

Suitable for

• Mounting and concealing camera connections on outdoor walls and poles
• Use with small to medium dome or bullet surveillance cameras up to the specified weight
• Professional CCTV installations where compact external junction boxes are required

Key specifications

• Maximum supported device weight: 4.5 kg
• Outer diameter: 12 cm
• Height: 36.2 mm
• Net weight: 250 g (approx.)
• Color: Black
• Suitable for outdoor use when installed with appropriate sealing and mounting hardware

How to use

Position the junction box on the chosen mounting surface and mark drilling points according to the box dimensions. Route camera and power cables through the entry points, taking care to use appropriate grommets or sealants for outdoor installations. Secure the box to the wall or pole using suitable screws and anchors for the surface type, then connect camera cabling and connectors inside the box. After wiring is complete, close and fasten the cover to protect connections from weather exposure.

Recommendations

For reliable outdoor performance, use compatible mounting brackets and weatherproof sealant where cables enter the junction box. Verify that the combined weight of camera and accessories does not exceed the 4.5 kg limit and choose corrosion-resistant fasteners for long-term installations.
