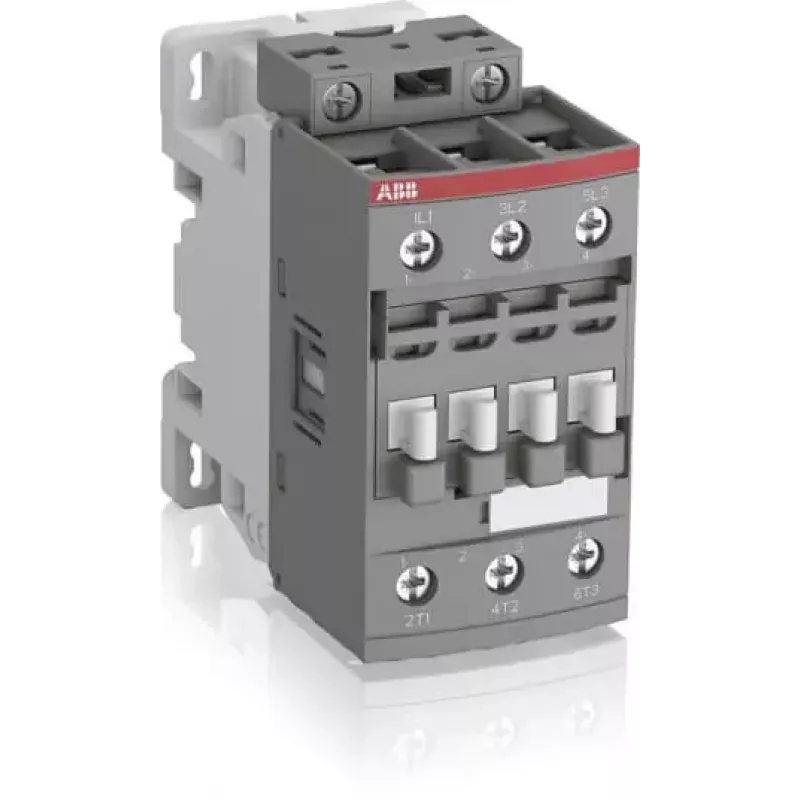

ABB AF26-30-00-13 3-polig relais 100-250V AC/DC spoel 26A 11kW

With a rated operational current of 26 A (AC-3) and a coil voltage range of 100-250 V AC/DC, this ABB AF26-30-00-13 contactor delivers reliable switching for motors up to 11 kW at 400 V. The wide coil voltage range eliminates the need for separate control transformers, simplifying installation and reducing inventory.

Overview

The ABB AF26-30-00-13 is a 3-pole contactor with 3 normally open (NO) main contacts and no built-in auxiliary contacts. It is designed for demanding industrial applications, offering high electrical and mechanical durability. The contactor can be mounted on a DIN rail or with screws, and it features screw terminals for secure wiring.

What stands out

• Wide coil voltage range: 100-250 V AC/DC, suitable for various control circuits.
• High electrical durability: 1.5 million operations (AC-3) and mechanical durability of 10 million operations.
• Rated insulation voltage of 1000 V and impulse withstand voltage of 8 kV ensure safe operation in harsh environments.
• Compact design with IP20 protection, ideal for panel mounting.

Technical details

• Rated operational current (AC-3, ≤440 V): 26 A
• Rated operational current (AC-1, ≤690 V, 40°C): 45 A
• Rated operational power (AC-3, 400 V): 11 kW
• Rated operational voltage: 690 V AC / 220 V DC
• Number of poles: 3
• Main contacts: 3 NO
• Auxiliary contacts: 0 NO + 0 NC (built-in)
• Terminal type: Screw terminals
• Mounting: DIN rail or screw mounting
• Operating temperature: -40 to +70 °C
• Degree of protection: IP20
• Standards: IEC 60947-1, IEC 60947-4-1, UL 60947-1, UL 60947-4-1
• Power loss per pole (AC-3): 1.5 W

Our verdict

The ABB AF26-30-00-13 contactor is a robust and versatile choice for motor control applications. Its wide coil voltage range and high durability make it a cost-effective solution for industrial automation.
