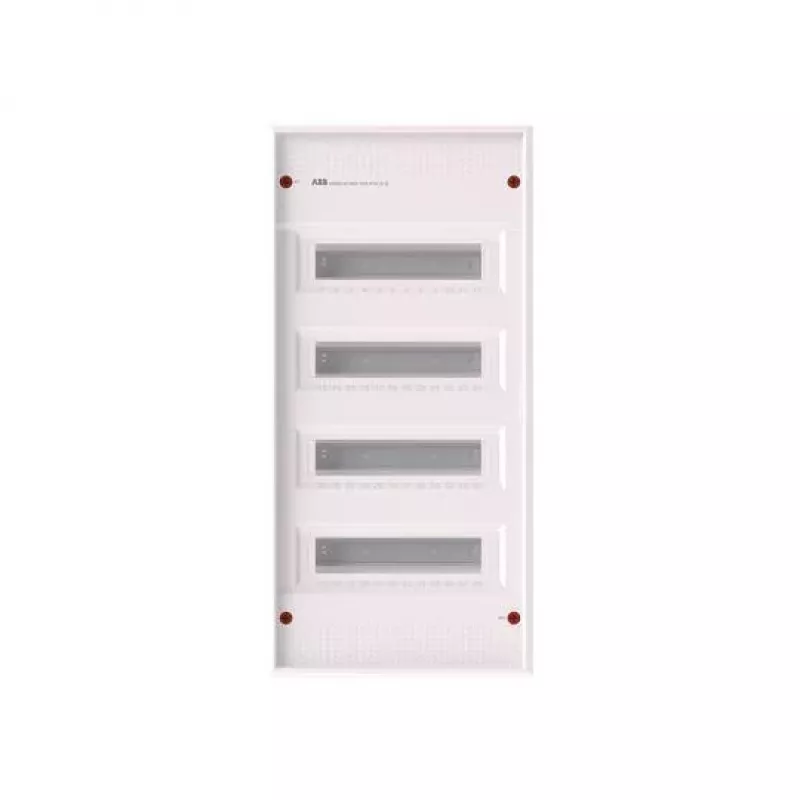

ABB AP verdelervak AK648N4 opbouw 48 PLE 4 rijen zonder deur

The ABB AP Distribution Board AK648N4 is a high-quality surface-mounted distribution board designed for residential, commercial, and light industrial applications. With 48 module units (PLE) arranged in 4 rows, it provides ample space for circuit protection devices. The board is made of durable thermoplastic in light grey (RAL 7035) and offers IP44 protection, making it suitable for indoor and outdoor use. It comes without a door, allowing for flexible customization.

Advantages

This distribution board offers easy installation and maintenance thanks to its surface-mounted design. The thermoplastic material ensures high impact resistance (IK07) and is halogen-free, contributing to safety. The board includes N and PE terminal blocks, simplifying wiring. It complies with DIN VDE 0603-1 and EN 61439-3 standards, guaranteeing reliability.

Suitable for

• Residential electrical distribution
• Commercial building installations
• Light industrial power distribution
• Applications requiring IP44 protection

Key specifications

• Mounting Type: Surface-mounted (AP)
• Number of Rows: 4
• Module Units (PLE): 48 (12 per row)
• Door Included: No
• Protection Class: IP44
• Material: Thermoplastic
• Colour: Light Grey (RAL 7035)
• Rated Current: Up to 63 A
• Rated Voltage: 230/400 V AC
• Insulation Class: II (Double Insulated)
• Glow Wire Test: 650 °C
• Halogen-free: Yes
• Standards: DIN VDE 0603-1, EN 61439-3
• Terminal Blocks: N and PE terminals
• Impact Resistance: IK07

Recommendations

For optimal performance, use with ABB circuit breakers and accessories. Ensure proper installation by a qualified electrician. This board is ideal for projects requiring a robust, customizable distribution solution.
