ABB MS132-0.25 motorbeveiligingsschakelaar - 0,16-0,25 A, 3-polig, klasse 10, 690V

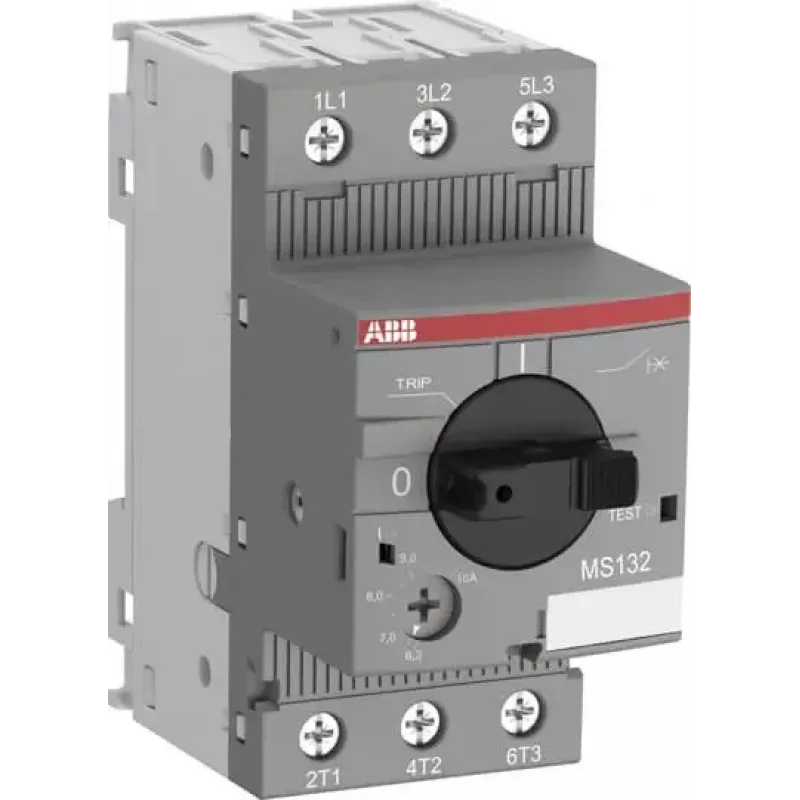

Protecting small motors from overload and short circuits is critical in industrial control panels. The ABB MS132-0.25 manual motor starter delivers reliable protection for motors up to 0.06 kW at 400 V, with a precise thermal overload setting range of 0.16 to 0.25 A. Its compact 45 mm width saves space on the DIN rail while offering robust performance.

Who is it for

This motor starter is ideal for panel builders, maintenance technicians, and OEMs who need a compact, high-breaking-capacity protection device for small three-phase motors in applications such as pumps, fans, conveyors, and machine tools. It is suitable for use in industrial environments where reliable motor protection and quick installation are essential.

Main features

• Thermal overload protection with adjustable setting range 0.16–0.25 A, trip class 10
• Fixed short-circuit release at approximately 13 x Ie for fast fault clearing
• High short-circuit breaking capacity: 100 kA at 400 V AC
• Three-pole switching with screw terminals for secure wiring
• DIN rail or screw mounting for flexible installation
• IP20 protection on main circuit terminals
• Wide operating temperature range: -25 to +70 °C

Specifications

• Product type: Manual motor starter (motor protection switch)
• Rated operational current Ie: 0.16–0.25 A
• Rated operational voltage Ue: 690 V AC
• Rated insulation voltage Ui: 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Number of poles: 3
• Short-circuit breaking capacity Ics at 400 V AC: 100 kA
• Degree of protection: IP20 (main circuit terminals)
• Mounting: DIN rail or screw
• Terminal type: screw terminals
• Electrical durability: 100,000 operations
• Mechanical durability: 100,000 operations
• Standards: IEC/EN 60947-1, 60947-2, 60947-4-1
• Suitable for motor power at 400 V: 0.06 kW

Tips

Always set the thermal overload dial to the motor's full-load current as indicated on its nameplate. For reliable protection, ensure the short-circuit current at the installation point does not exceed the device's breaking capacity. Use appropriate screwdrivers and torque settings when connecting conductors to maintain IP20 protection and prevent overheating.
