ABB STOTZ-KONTAKT E91/32PV zekeringlastscheider, 2-polig, 32 A, 1000 V DC, gPV cilindrisch 10x38 mm, DIN-rail 2CSM204713R1801

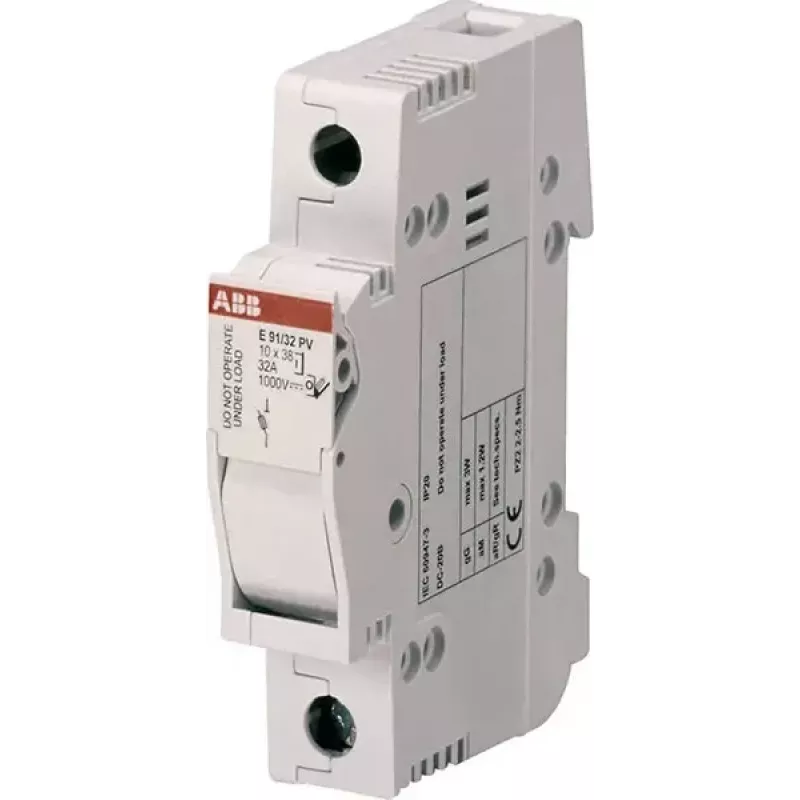

Rated for 1000 V DC and 32 A, the ABB E91/32PV is a two-pole fuse switch disconnector built for photovoltaic string protection. It accepts 10 x 38 mm cylindrical gPV fuses and mounts on a standard DIN rail, making it a direct fit for solar combiner boxes and inverter DC inputs.

Overview

The E91/32PV combines a load-break switch with a fuse holder in a compact 3-module housing. It provides visible fuse status indication, so a blown fuse is immediately apparent without disassembly. The unit is designed for use in PV systems up to 1000 V DC, where reliable isolation and overcurrent protection are critical.

What stands out

• High DC voltage rating: 1000 V DC, suitable for modern PV strings.
• Compatible with 10 x 38 mm gPV cylindrical fuses, a common PV fuse size.
• Visual fuse status indication for quick fault identification.
• DIN rail mounting (EN 60715) for easy installation in standard enclosures.
• High mechanical durability: 8500 cycles, ensuring long service life.

Technical details

• Number of poles: 2
• Rated current (In): 32 A
• Rated voltage (Un): 1000 V DC
• Fuse type: cylindrical gPV
• Fuse size: 10 x 38 mm
• Rated insulation voltage (Ui): 1000 V DC
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail (EN 60715)
• Degree of protection (terminals): IP20
• Degree of protection (enclosure): IP40
• Operating temperature range: -25 to +70 °C
• Terminal capacity (flexible): 1.5 ... 16 mm²
• Terminal capacity (rigid): 1.5 ... 25 mm²
• Standards: IEC/EN 60947-3, IEC/EN 60269-1, IEC 60269-6
• Application: photovoltaic (PV) systems
• Module width: 3 modules (52.5 mm)
• Electrical durability: 1500 cycles
• Mechanical durability: 8500 cycles
• Power loss per pole: 3.5 W
• Fuse status indication: visual

Our verdict

A robust and reliable DC disconnect solution for PV applications, the ABB E91/32PV delivers high-voltage performance and user-friendly fuse monitoring in a compact DIN rail package.
