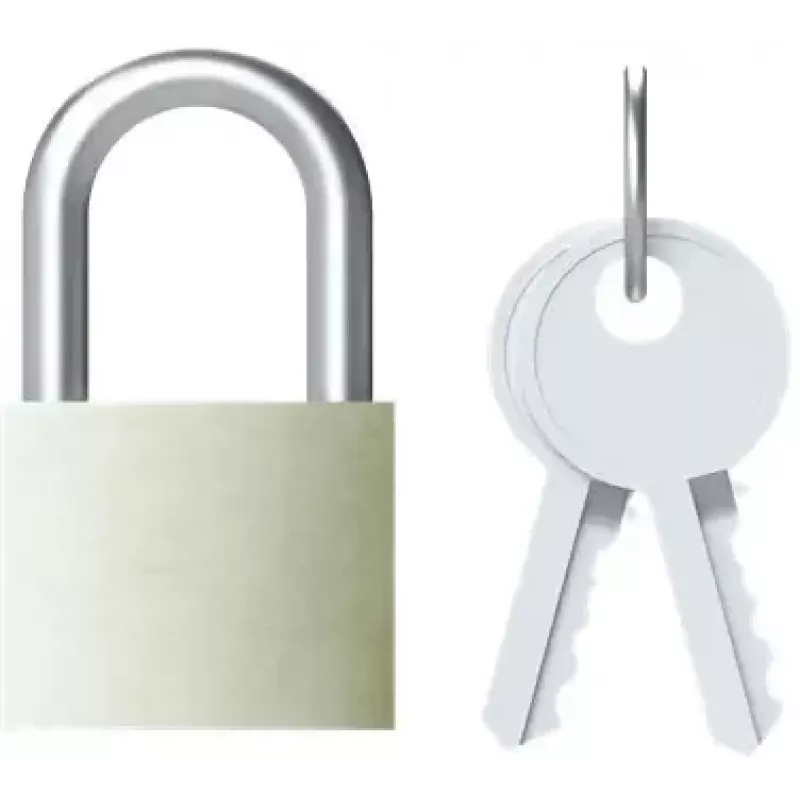

ABB STOTZ-KONTAKT hangslot met 2 sleutels SA 2 (GJF1101903R0002)

The ABB SA 2 padlock provides a simple mechanical locking solution for modular electrical devices, helping to prevent unauthorized operation. With a compact brass body and steel shackle, it offers basic security for low-risk applications.

Highlights

• Supplied with two keys for convenience
• Steel shackle with 3.5 mm diameter for secure attachment
• Brass body for corrosion resistance
• Designed for locking ABB S200 MCBs, F200 RCDs, and similar modular devices

In daily use

This padlock is intended for lockout/tagout procedures or to prevent tampering with circuit breakers and residual current devices. Its compact size fits standard locking points on ABB modular devices, and the two included keys allow access for authorized personnel.

Full specifications

• Number of keys included: 2
• Shackle diameter: 3.5 mm
• Shackle material: Steel
• Body material: Brass
• Keying type: Standard
• Compatibility: ABB S200 Series MCBs, F200 Series RCDs, and other modular devices
• Security level: Basic
• Overall height: 45 mm
• Body width: 20 mm
• Body depth: 10 mm
• Internal shackle clearance (height): 15 mm
• Internal shackle clearance (width): 10 mm
• Operating temperature range: -25 to +55 °C

Final note

A straightforward padlock for securing electrical equipment, supplied with two keys and built from durable materials.
