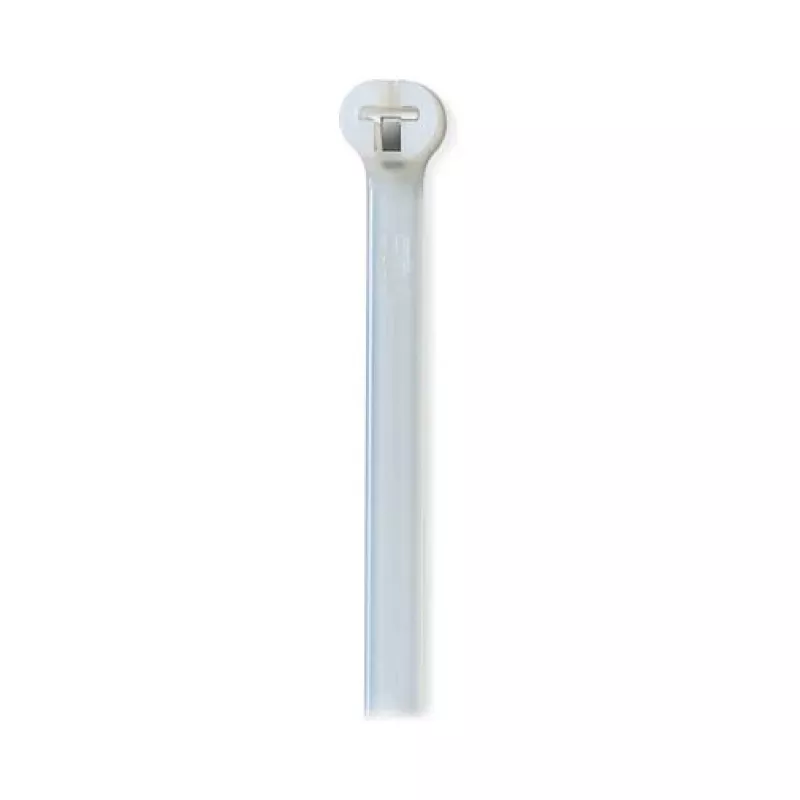

ABB TY23M Ty-Rap tiewrap, nylon 6.6, naturel, 92mm x 1,6mm, 80N, UL/EN/CSA62275

The ABB TY23M Ty-Rap cable tie is a high-performance fastening solution designed for professional wiring and cable management. Manufactured from durable Polyamide 6.6 (Nylon 6.6) in a natural colour, this cable tie offers excellent tensile strength and reliability for a wide range of applications. With a length of 92 mm and a width of 1.6 mm, it is ideal for securing small to medium bundles up to 20 mm in diameter. The stainless steel barb locking mechanism ensures a secure hold, while the low-profile head design allows for easy installation in tight spaces. Certified to UL E49405, CSA, and EN 62275 standards, this cable tie is halogen-free and has a UL 94 V-2 flammability rating. Each pack contains 100 pieces.

Advantages

• High tensile strength of 80 N (18 lbs) for reliable bundling
• Durable Polyamide 6.6 material with excellent temperature resistance (-40°C to +85°C)
• Stainless steel barb provides secure locking and prevents slippage
• Low-profile head design for space-saving installations
• Halogen-free and UL 94 V-2 rated for safety
• Certified to international standards (UL, CSA, EN 62275)

Suitable for

• Electrical wiring and cable management in control panels
• Automotive and industrial harness bundling
• Telecommunications and data center installations
• General purpose fastening in maintenance and repair

Key specifications

• Product Type: Cable Tie
• Series: Ty-Rap
• Material: Polyamide 6.6 (Nylon 6.6)
• Colour: Natural
• Length: 92 mm
• Width: 1.6 mm
• Tensile Strength: 80 N (18 lbs)
• Maximum Bundle Diameter: 20 mm
• Minimum Bundle Diameter: 1.6 mm
• Operating Temperature: -40°C to +85°C
• Flammability Rating: UL 94 V-2
• Locking Mechanism: Stainless Steel Barb
• Head Design: Low Profile
• UV Resistance: No
• Halogen-free: Yes
• Certifications: UL E49405, CSA, EN 62275
• Quantity per Pack: 100 pieces

Recommendations

For optimal performance, use Ty-Rap cable ties with compatible installation tools. Ensure the bundle diameter does not exceed the maximum rating. Store in a cool, dry place away from direct sunlight to maintain material properties.
