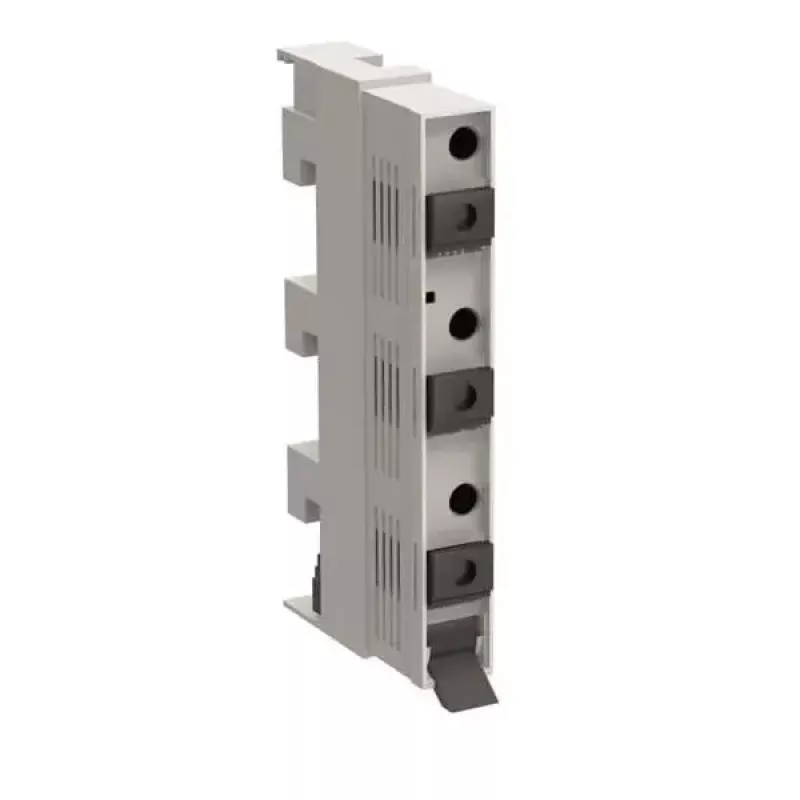

ABB XLPD0-FS-E18-3P 3-polige zekeringlastscheider, 63 A, NH00, DIN-rail 1SEP622349R0001

The ABB XLPD0-FS-E18-3P is a 3-pole fuse switch disconnector engineered for safe isolation and protection in low-voltage distribution systems. Unlike basic fuse holders, it combines load-breaking capability with a compact DIN-rail design, allowing maintenance and circuit isolation without removing the fuse. Its 63 A rating and NH00 fuse compatibility make it a versatile choice for industrial control panels and building installations.

Highlights

• 3-pole configuration for three-phase circuits
• Rated operational current: 63 A
• Accepts NH00 fuse links (gG type)
• High short-circuit withstand: 50 kA making and breaking capacity
• DIN rail mounting (TH35-15, TH35-7.5) for quick installation
• Wide terminal range: 1.5 to 50 mm²

In daily use

Install the XLPD0-FS-E18-3P on a standard DIN rail and connect incoming and outgoing cables via its screw terminals. Insert an NH00 fuse link (not included) to protect downstream equipment. The front-operated actuator allows manual switching, and the IP30 front cover provides basic protection against accidental contact. Suitable for ambient temperatures from -25 °C to +70 °C.

Full specifications

• Number of poles: 3
• Rated operational current (Ie): 63 A
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 8 kV
• Rated short-circuit making capacity (Icm): 50 kA
• Rated short-circuit breaking capacity (Icn): 50 kA
• Fuse size: NH00
• Fuse type: NH (gG)
• Mounting type: DIN rail (TH35-15, TH35-7.5)
• Terminal type: Screw terminals
• Main circuit terminal capacity: 1.5 ... 50 mm²
• Degree of protection: IP20 (terminals), IP30 (front)
• Standards: IEC/EN 60947-3
• Operating temperature: -25 ... +70 °C
• Actuator type: Front operated (handle not included)

Final note

The XLPD0-FS-E18-3P offers reliable circuit protection and isolation in a compact footprint, making it a practical component for panel builders and electricians.
