ABUS 4 MP IP-mini-tubecamera met 2,8 mm-objectief, IR- en witlicht-nachtzicht

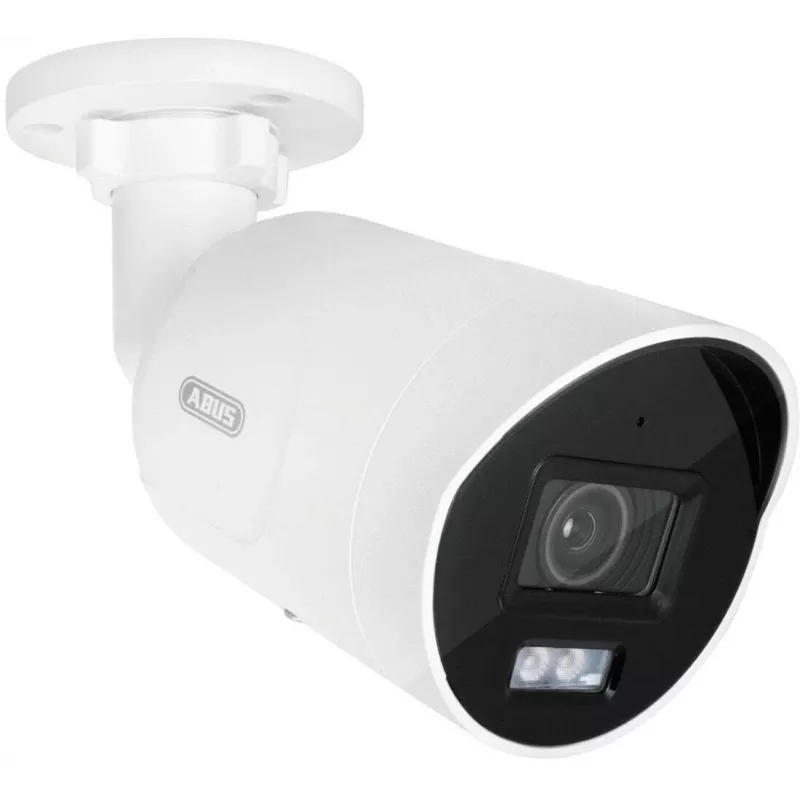

Monitoring a narrow corridor or entrance often forces you to choose between image detail and discreet installation. The ABUS 4 MP IP Mini Tube Camera resolves this by packing 4-megapixel resolution into a compact metal housing that blends into any environment. Its fixed 2.8 mm lens captures a 97° horizontal field of view, ideal for covering doorways, hallways, or cashier areas without blind spots.

Who is it for

This camera suits small businesses, retail shops, offices, and homeowners who need professional-grade surveillance without bulky equipment. It is especially useful where space is limited but image quality cannot be compromised, such as above a till, in a narrow corridor, or at a back entrance.

Main features

• 4 MP (2560 x 1440) progressive scan CMOS sensor for sharp, detailed footage.
• Dual night vision: infrared up to 30 m and white light up to 10 m, allowing colour images in low light.
• 120 dB Wide Dynamic Range (WDR) to handle challenging backlight and high-contrast scenes.
• 3D Digital Noise Reduction (3D DNR) for cleaner video in low-light conditions.
• Built-in microphone for audio recording without extra wiring.
• H.265, H.264, and MJPEG compression to balance quality and storage efficiency.
• MicroSD card slot supporting up to 256 GB for local recording.
• IP67 weatherproof metal housing for outdoor use in temperatures from -30°C to +60°C.
• Power over Ethernet (PoE 802.3af) or 12 V DC for flexible installation.

Specifications

• Image sensor: 1/2.8" Progressive Scan CMOS
• Max resolution: 2560 x 1440 (4 MP) at 25 fps
• Lens: fixed focal 2.8 mm, horizontal field of view 97°
• Night vision: IR up to 30 m, white light up to 10 m
• Video compression: H.265, H.264, MJPEG
• Audio: built-in microphone
• Network: 1x RJ45 10/100 Mbps Ethernet
• Power: 12 V DC or PoE (IEEE 802.3af), max consumption 6.5 W
• Local storage: MicroSD card slot (up to 256 GB)
• Ingress protection: IP67
• Operating temperature: -30°C to +60°C
• Dynamic range: 120 dB WDR
• Noise reduction: 3D DNR
• Housing material: metal

Tips

For the clearest night images, position the camera so that the white light illuminates the area of interest without causing glare. If you use PoE, a single network cable carries both data and power, simplifying installation. To comply with privacy regulations, ensure the camera's field of view does not capture public spaces beyond your property.
