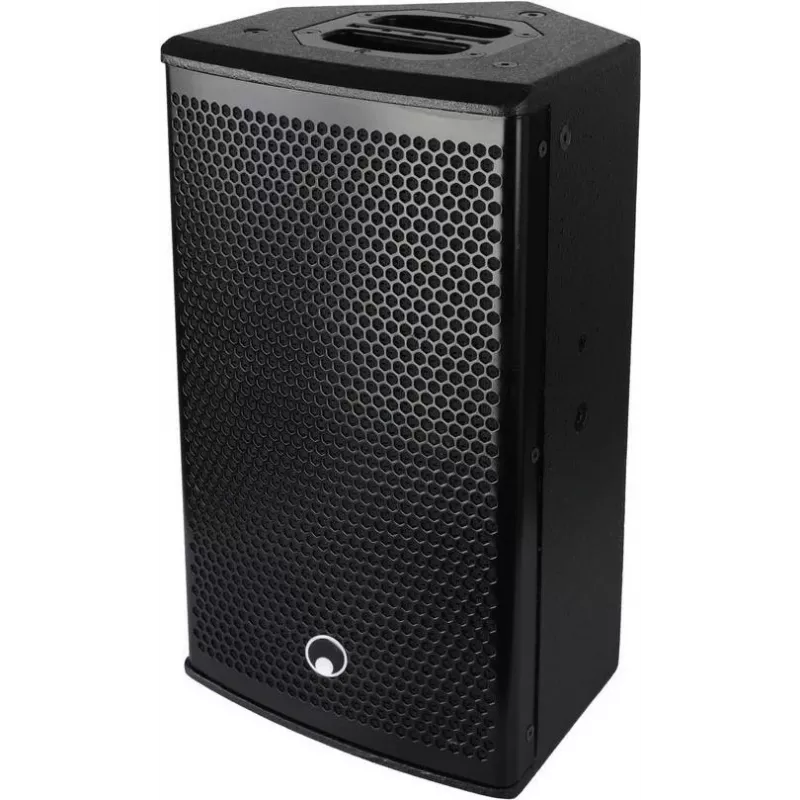

Actieve 2-weg topluidspreker Omnitronic PAS-208A MK3 met DSP, model 11039471

The Omnitronic PAS-208A MK3 is an active 2-way top speaker with integrated DSP, designed as a compact full-range top unit for live PA, DJ setups and small venue sound reinforcement. With built-in power amplification and digital signal processing, the speaker provides a ready-to-use solution that reduces system complexity by eliminating the need for external power amps or outboard tuning devices. The enclosure and transducer configuration are optimized for clear midrange presence and controlled high-frequency dispersion suitable for front-of-house and monitoring use.

Advantages

Integrated DSP allows factory and user-selectable presets to shape frequency response and apply protection, ensuring consistent performance across different environments. As an active 2-way system, the PAS-208A MK3 combines a dedicated woofer and high-frequency driver with onboard amplification for matched power handling and simplified setup. The compact, portable enclosure and NL4 input/output connections enable quick system integration and flexible rigging options for small to medium events.

Suitable for

Key specifications

How to use

Place the PAS-208A MK3 on a suitable speaker stand or mount it according to the venue’s rigging requirements. Connect the output of your mixer or DJ controller to the speaker’s balanced input using an appropriate cable. If multiple units are used, link additional cabinets via the speaker’s output connectors. Select the appropriate DSP preset for the application (PA, monitor, or DJ) and adjust the input gain on the speaker to match the mixer output level. Make incremental adjustments to level and EQ from the mixer and use the onboard DSP presets for additional tonal shaping and protection.

Recommendations

For reliable operation, allow the speaker to run at moderate levels during initial soundcheck and verify DSP presets and limits before full performance. Position the top unit to provide even coverage and avoid pointing the high-frequency horn directly at reflective surfaces. Use balanced cabling and secure mounting hardware for permanent installations or extended gigs.
