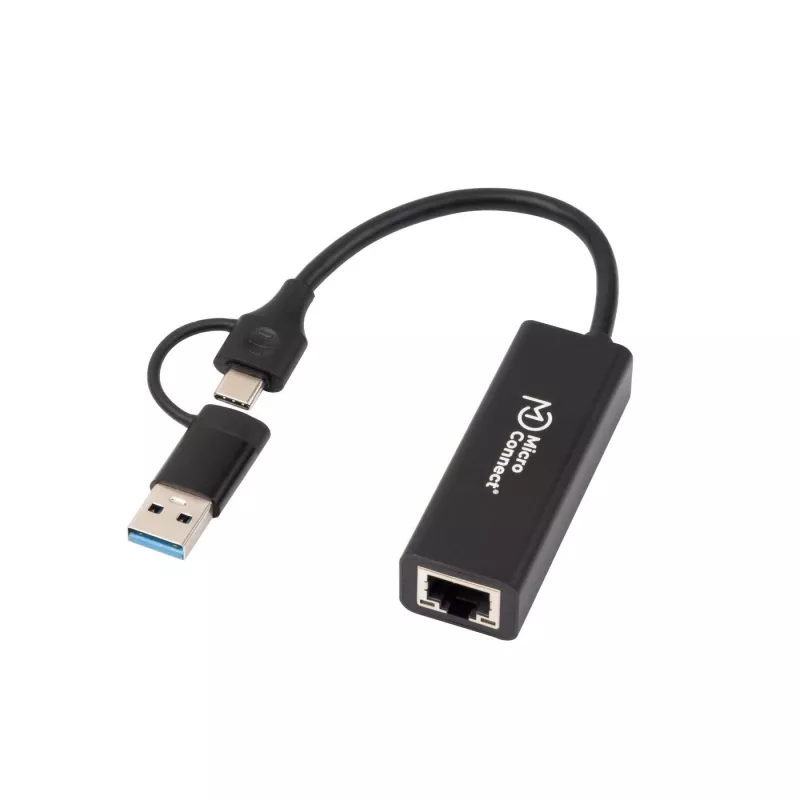

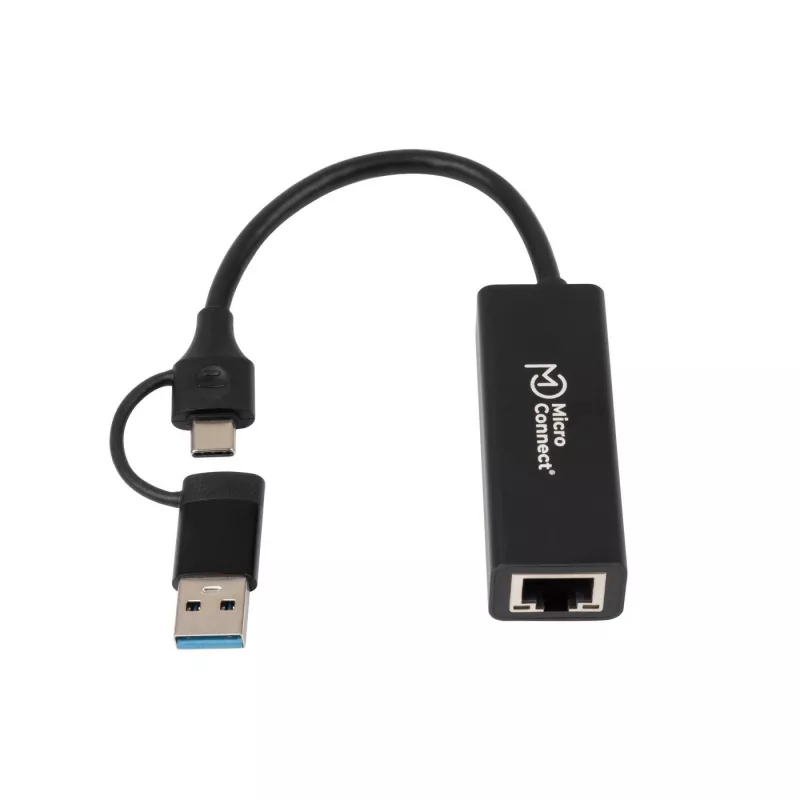

Adapter Microconnect MC-USBACNET1G USB-C naar RJ-45 0,2 m zwart

The MicroConnect MC-USBACNET1G is a compact 2-in-1 Gigabit Ethernet adapter that converts USB-C (including Thunderbolt 3) or USB 3.0/2.0/1.1 ports to an RJ45 network connection. Housed in an aluminum casing and measuring 0.2 m in cable length, this black adapter provides portable wired network access for Mac, Windows and Linux systems where a native Ethernet port is unavailable.

Advantages

This adapter supports Gigabit Ethernet speeds and is backward compatible with 10/100 Mbps and USB 2.0/1.1 hosts. It supports advanced features such as Wake-on-LAN (RealWoW and Wake Packet Detection), jumbo frames up to 16384 bytes, and includes built-in heat dissipation. Status LEDs indicate power, link and speed. Its small, lightweight design fits easily in a bag or pocket for mobile use.

Suitable for

• Connecting laptops or tablets with USB-C or USB-A ports to wired Ethernet
• Users needing reliable wired network access for streaming, large file transfers or stable connections
• Systems without a built-in Ethernet port (Ultrabooks, MacBooks, thin-and-light laptops)

Key specifications

• Model: MicroConnect MC-USBACNET1G
• Interfaces: USB-C (Thunderbolt 3 compatible) and USB 3.0 to RJ45
• Cable length: 0.2 m
• Ethernet standards: IEEE 802.3u (10/100 Mbps), IEEE 802.3ab (1000 Mbps), IEEE 802.3bz (2500 Mbps)
• Jumbo frame support: up to 16384 bytes
• Wake features: Wake Packet Detection (WPD), RealWoW remote wake-up
• LED indicators: power, network connection and speed (green/amber)
• Material: aluminum housing
• Color: black
• Compatible OS: Mac, Windows, Linux
• EAN: 5715063053409

How to use

Connect the adapter's USB-C or USB 3.0 plug to a compatible host port, then attach an Ethernet cable to the RJ45 jack. The operating system should detect the adapter automatically; install drivers only if prompted by your OS. Use the device settings on your computer to configure network parameters or enable Wake-on-LAN features if required.

Recommendations

For optimal performance, use Cat5e or higher quality Ethernet cables for Gigabit speeds, keep the adapter ventilated to allow heat dissipation, and update host network drivers when necessary to ensure full compatibility with Wake-on-LAN and jumbo frame functions.
