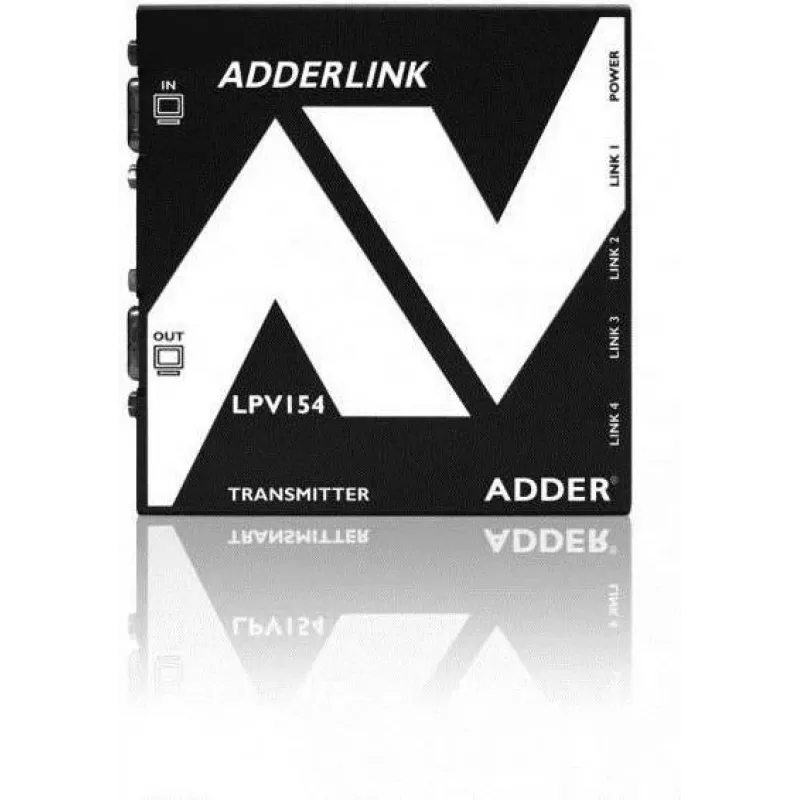

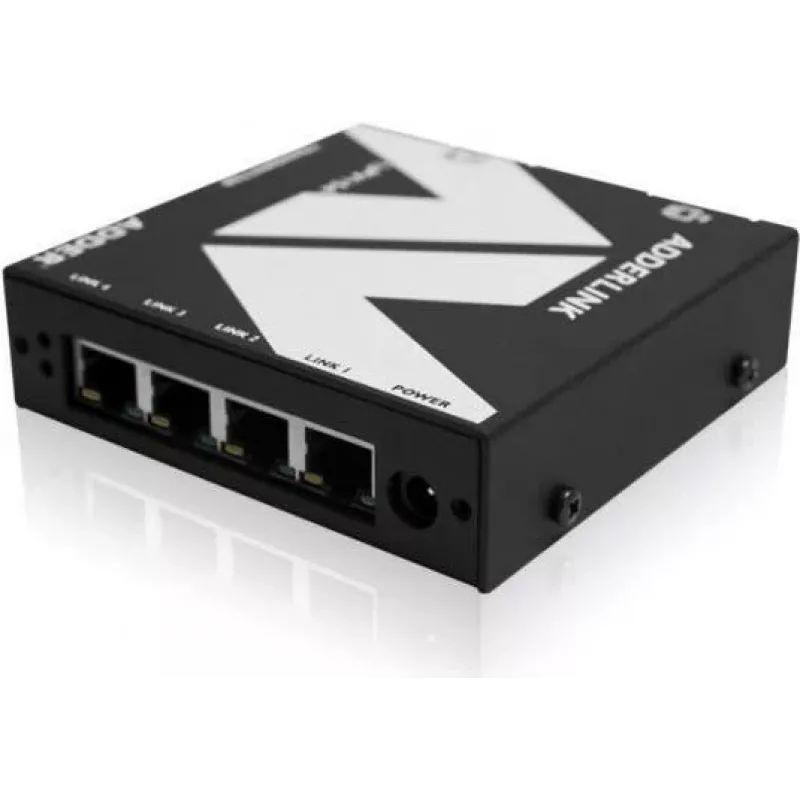

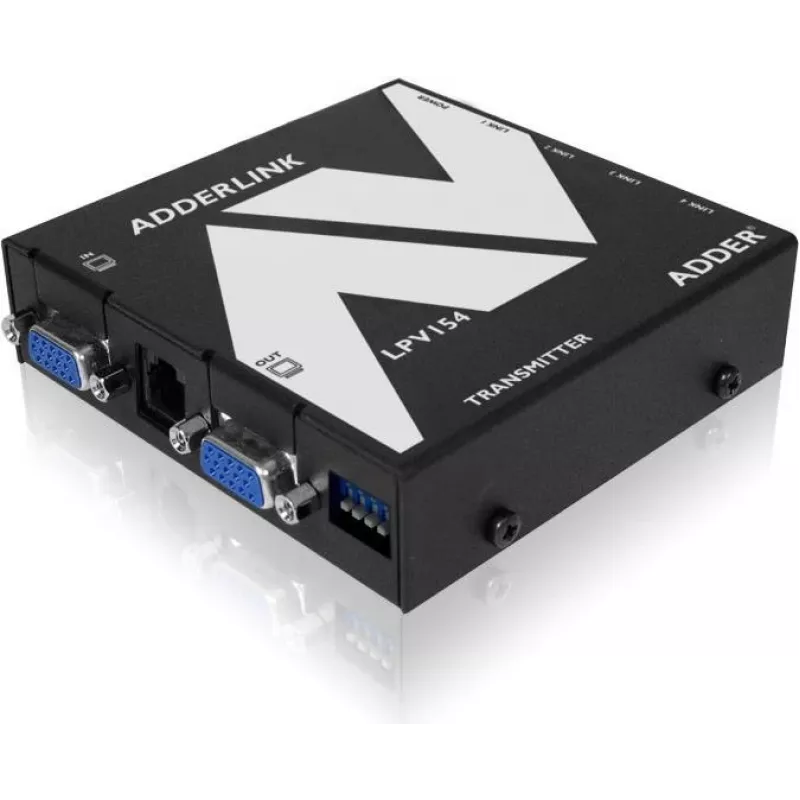

ADDER LPV154T AV extender transmitter – VGA & audio via CATx, 300 m, zwart ALPV154T-IEC

The ADDER LPV154T is an AV extender transmitter that delivers VGA video and stereo audio over a single CATx cable up to 300 meters, making it ideal for long-distance signal distribution in professional AV setups.

Advantages

With support for WUXGA resolution at 60Hz and a 150 MHz video bandwidth, this transmitter ensures sharp, reliable image quality. Its compact steel chassis and external 5V DC power supply provide durability and easy installation, while LED indicators offer clear status monitoring.

Suitable for

• Digital signage in retail and corporate environments
• Classroom and lecture hall AV systems
• Control rooms and industrial monitoring
• Extending legacy VGA sources to remote displays

Key specifications

• Transmitter unit for AV extension
• 1x VGA input, 1x 3.5mm audio input
• 1x RJ45 output for CAT5e/6/7 cable
• Maximum resolution: 1920 x 1200 @ 60Hz (WUXGA)
• Maximum transmission distance: 300 m
• External 5V DC, 2.5A power supply
• Operating temperature: 0 to 40°C

Recommendations

Pair with an ADDER LPV154R receiver for a complete point-to-point extension solution.
