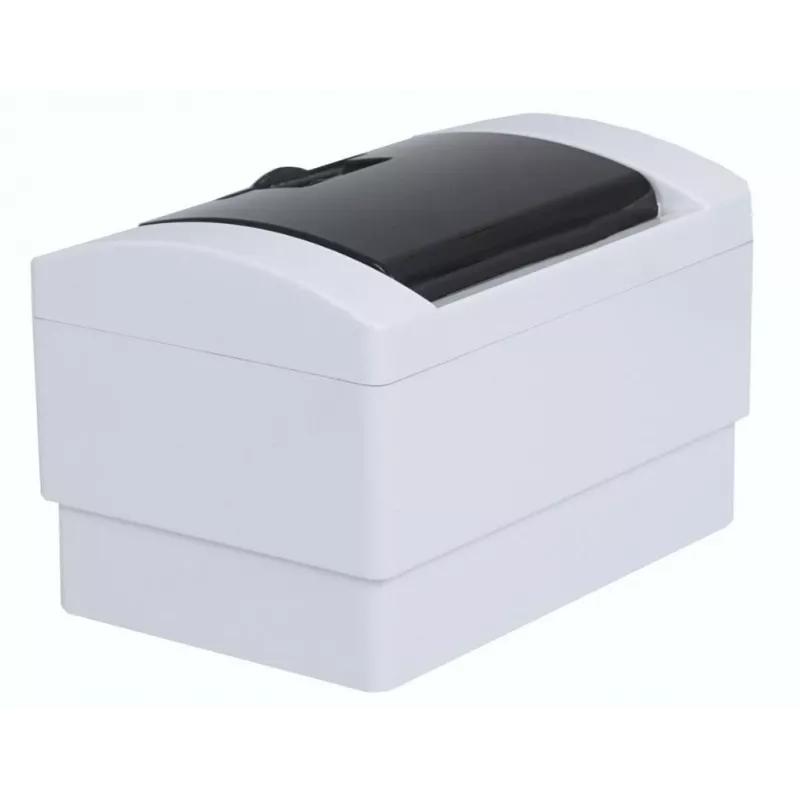

ADELID RM-NT-02T opbouw-verdeelkast, 2 modules, IP40, transparante deur

With an IK07 impact rating and a 650°C glow wire resistance, the ADELID RM-NT-02T is built to endure in demanding indoor environments. This 2-module surface-mounted distribution board combines robust plastic construction with a transparent PC door, offering clear visibility of installed devices while maintaining protection.

Overview

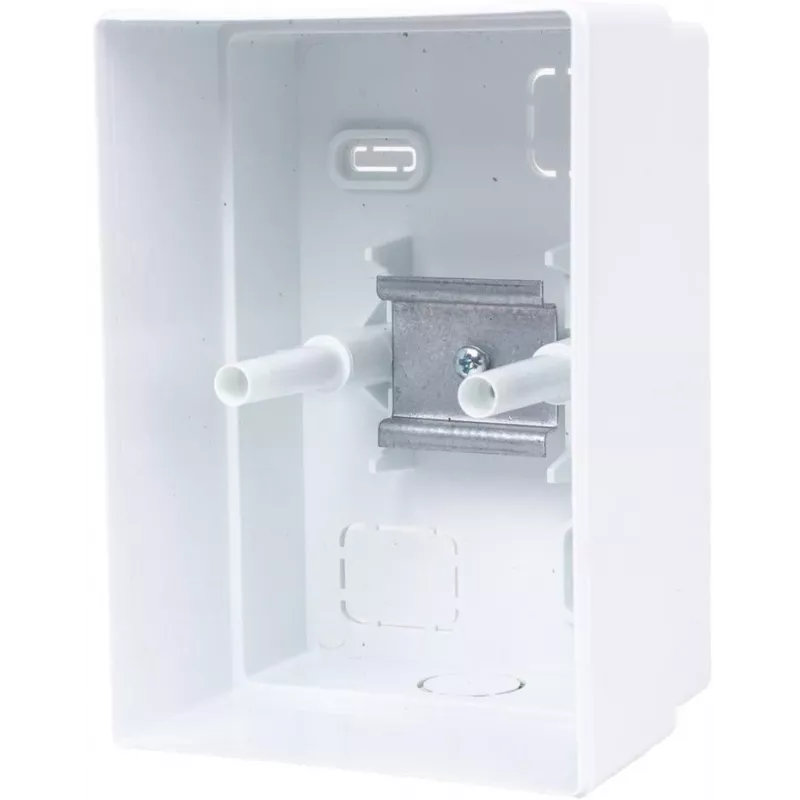

The ADELID RM-NT-02T is a single-row enclosure designed for surface mounting, accommodating up to two DIN rail modules. Its compact footprint makes it ideal for residential or light commercial applications where space is limited but reliability is non-negotiable. The enclosure includes a terminal block for neutral and protective earth (N+PE), simplifying wiring and ensuring compliance with installation standards.

What stands out

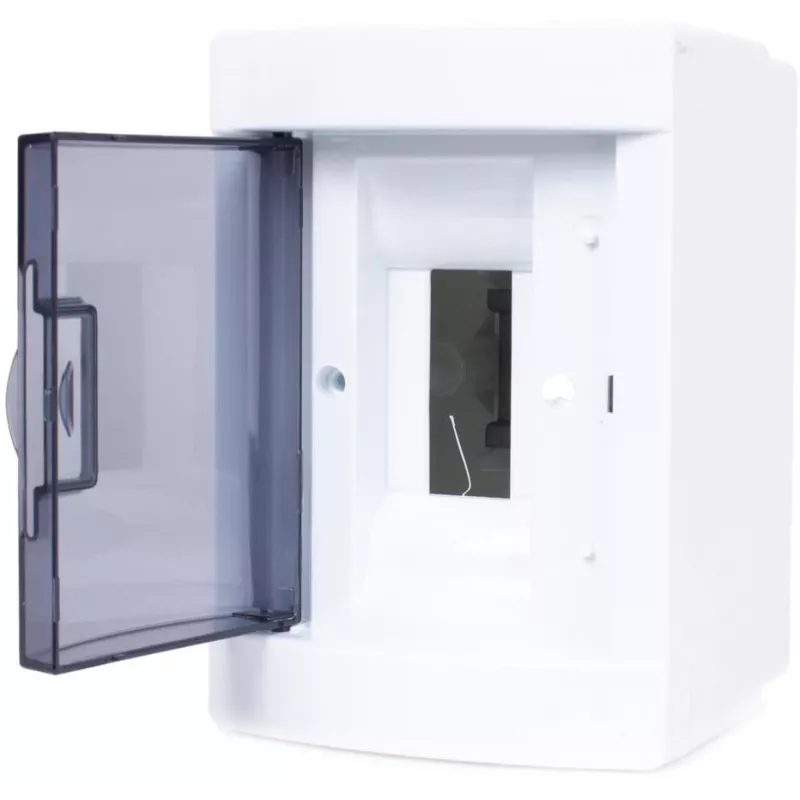

• Transparent door allows visual inspection without opening the enclosure
• High impact resistance (IK07) protects against mechanical stress
• Glow wire tested at 650°C for enhanced fire safety
• Class II double insulation ensures user safety without earthing
• Complies with PN-EN 60670-24, guaranteeing quality and interoperability

Technical details

• Mounting type: Surface-mounted
• Number of modules: 2
• Number of rows: 1
• IP rating: IP40
• IK rating: IK07
• Enclosure material: Plastic (ABS/PC)
• Door material: Transparent PC
• Color: White base, transparent door
• Terminal blocks included: Yes (N+PE)
• Rated insulation voltage (Ui): 500V AC
• Rated operational voltage (Ue): Up to 400V AC
• Max rated current: 63A
• Operating temperature range: -25°C to +60°C
• Storage temperature range: -35°C to +70°C
• Glow wire test temperature: 650°C
• Protection class: Class II (Double Insulation)
• Standard compliance: PN-EN 60670-24
• Application environment: Indoor

Our verdict

The ADELID RM-NT-02T is a no-nonsense solution for small electrical installations. Its transparent door and robust build make it a practical choice for electricians who value both safety and convenience.
