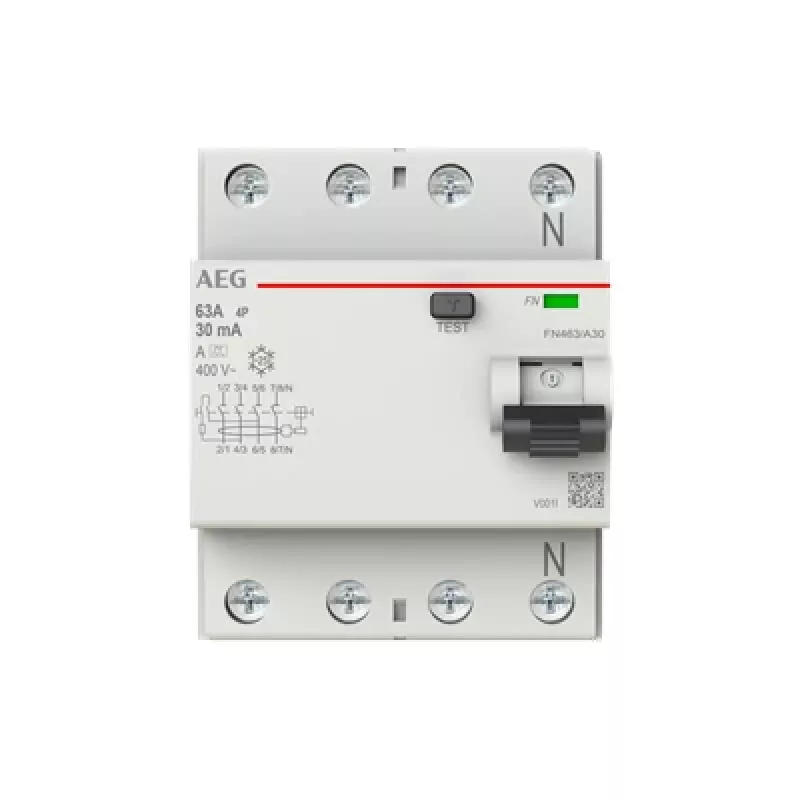

AEG Power Solutions aardlekschakelaar FN463/A30 4P Type-A 63A 30mA

The AEG Power Solutions FN463/A30 is a high-quality residual current circuit breaker (RCCB) designed for reliable protection against earth faults. With 4 poles, Type A sensitivity, and a rated current of 63A, it is ideal for commercial and industrial applications where safety and compliance are paramount.

Advantages

This RCCB offers robust construction, easy DIN rail mounting, and screw terminals for secure connections. It meets IEC/EN 61008 standards and provides instantaneous tripping for enhanced safety.

Suitable for

• Commercial buildings
• Industrial installations
• Distribution boards
• Systems requiring Type A residual current protection

Key specifications

• Number of Poles: 4
• Rated Current (In): 63 A
• Rated Residual Operating Current (IΔn): 30 mA
• Type of Residual Current: Type A
• Rated Voltage (Ur): 230/400 V AC
• Rated Frequency: 50/60 Hz
• Rated Conditional Short-Circuit Current (Inc): 10 kA
• Rated Conditional Short-Circuit Current (IΔc): 10 kA
• Tripping Characteristic: Instantaneous
• Mounting Type: DIN Rail
• Terminal Type: Screw Terminals
• Degree of Protection: IP20
• Electrical Endurance: 10000 cycles
• Mechanical Endurance: 20000 cycles
• Standards: IEC/EN 61008
• Operating Temperature Range: -25 to +55 °C
• Number of Modules: 4
• Rated Impulse Withstand Voltage (Uimp): 4 kV

Recommendations

For optimal safety, ensure correct installation by a qualified electrician. This device is suitable for use in TN, TT, and IT systems.
