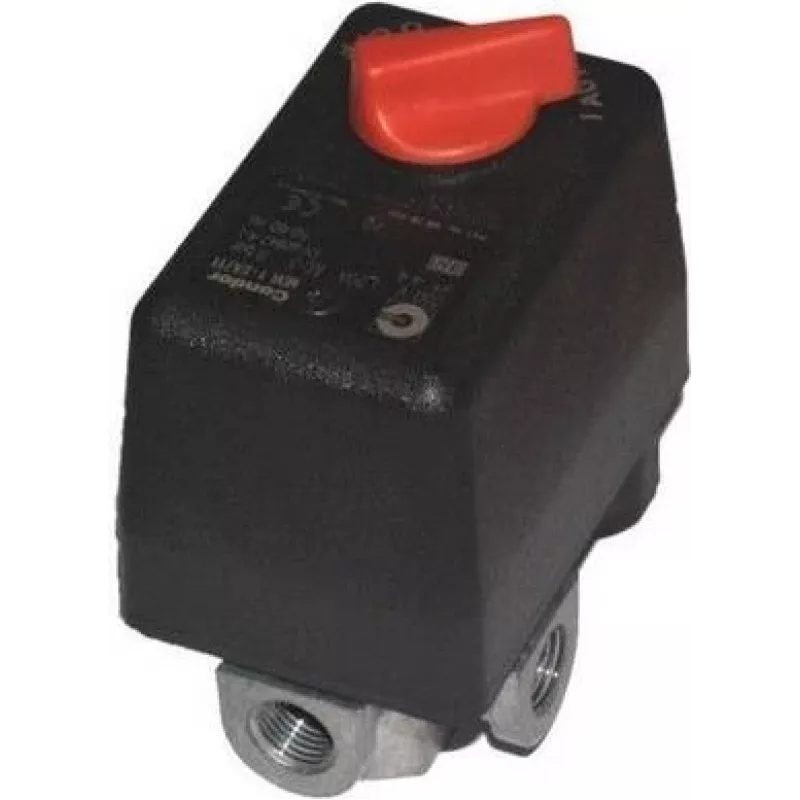

Aerotec drukschakelaar voor compressoren 4-8 bar, 230/400V, 16A, G 1/4 inch 9063048

This pressure switch for air compressors offers precise control of the switching pressure range from 4 to 8 bar, making it an essential component for reliable compressor operation. Its robust design and integrated unloader valve ensure smooth starts and protection of the compressor motor.

Advantages

The switch features an integrated unloader valve that releases pressure from the compressor head after shut-off, preventing motor overload on restart. The built-in ON/OFF switch provides convenient manual control, while the IP44 protection class ensures safe operation in dusty and damp environments. The high-quality plastic housing is durable and resistant to mechanical stress, and the 4-pole design with 16 A switching capacity supports both single-phase and three-phase motors.

Suitable for

• Air compressors up to 12 bar maximum operating pressure
• Pneumatic systems requiring adjustable pressure control
• Workshop and garage compressor setups
• Industrial applications with 230V or 400V power supply

Key specifications

• Adjustable switching pressure range: 4 - 8 bar
• Maximum operating pressure: 12 bar
• Electrical connection: 230V AC (1-phase) / 400V AC (3-phase)
• Max. switching current: 16 A
• Number of poles: 4-pole
• Pressure connection thread: G 1/4" (female)
• Integrated unloader valve: Yes
• Integrated ON/OFF switch: Yes
• Protection class: IP44
• Number of cable entries: 3
• Housing material: High-quality plastic

Recommendations

For optimal performance, install the pressure switch close to the compressor tank and ensure all electrical connections are made by a qualified electrician. Regularly check the pressure settings and unloader valve function to maintain efficient operation.
