Afdekplaat Rittal VX 8660.034 Zwart Staal 800 mm Diepte 100 mm Hoogte

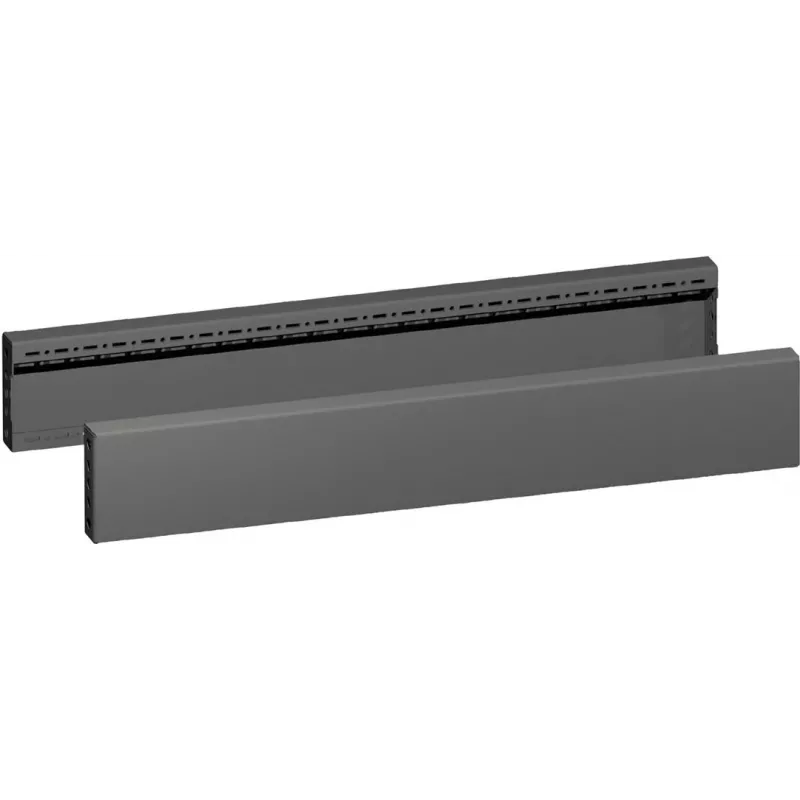

Trim panel Rittal VX 8660.034 is a black steel finishing panel designed to close off the side of a base/plinth unit and to provide additional stability or internal configuration options for bayed base/plinths. It is supplied in packs of two, each panel measuring 800 mm in depth and 100 mm in height, and is suitable for use with 200 mm high base/plinths either alone or paired (two 100 mm panels).

Advantages

The black steel construction offers durable protection and a uniform appearance for enclosure bases. The 100 mm height allows flexible use as a single finishing element or in pairs to match 200 mm base/plinth heights. Supplied as a two-piece pack for easy installation and replacement; lightweight design facilitates handling while maintaining required rigidity.

Suitable for

Key specifications

How to use

Position the trim panel at the side of the base/plinth unit and secure it according to the enclosure manufacturer's instructions or the mounting points provided on the base. For 200 mm high base/plinths, install one 200 mm trim panel or fit two 100 mm panels stacked as required. Ensure panels are aligned with adjoining units in bayed assemblies to maintain a continuous exterior surface and proper mechanical support.

Recommendations

Use compatible fastening hardware as specified by Rittal and avoid overtightening to prevent deformation of the steel. When combining two 100 mm panels to match a 200 mm base, verify alignment and load distribution across the bayed base/plinth to preserve stability.
