AG Neovo LMK-01 2,18 m (86 inch) zwart

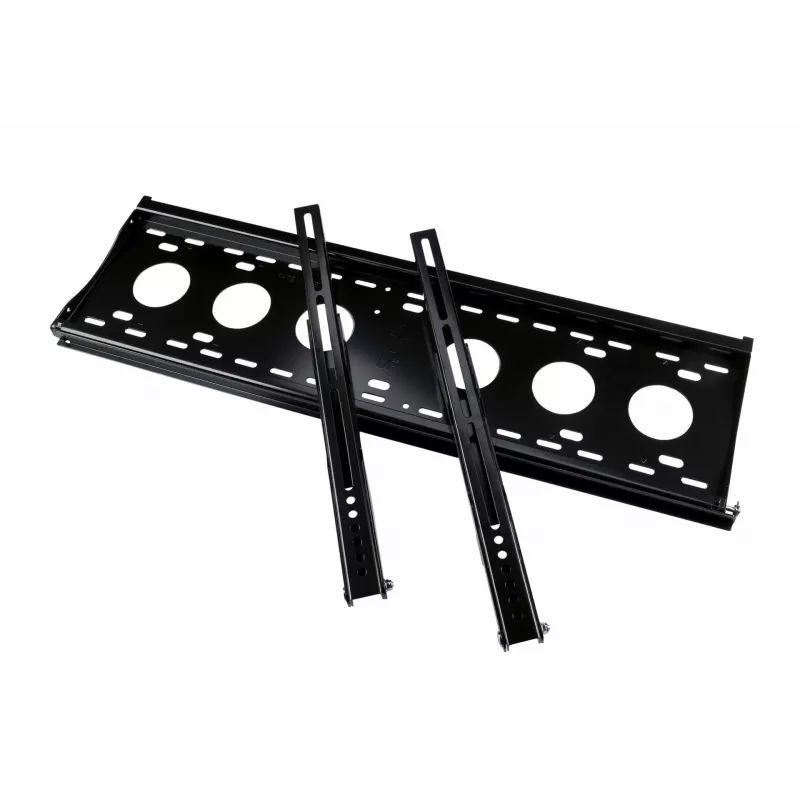

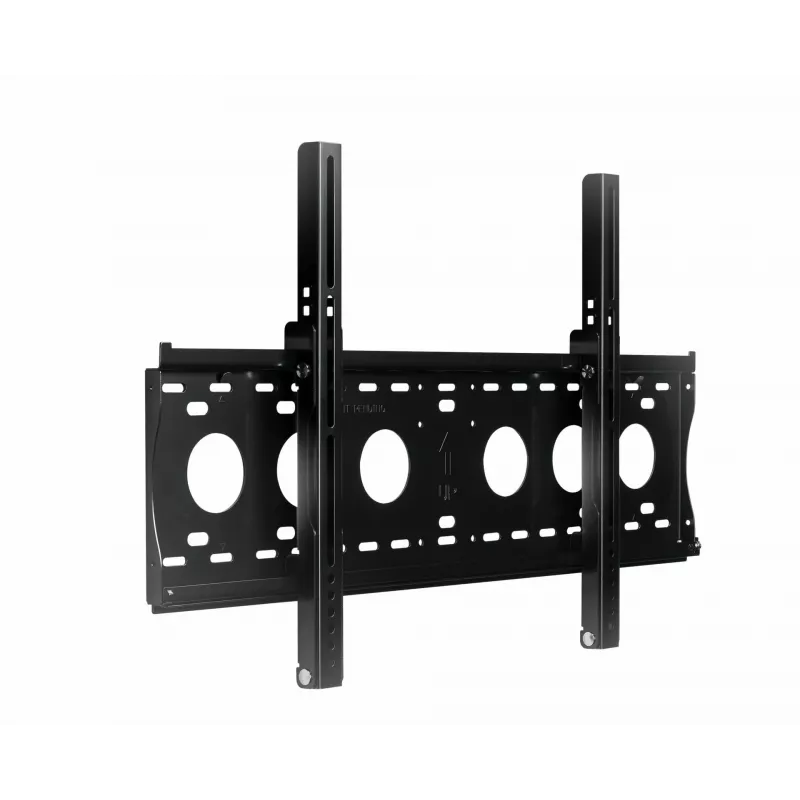

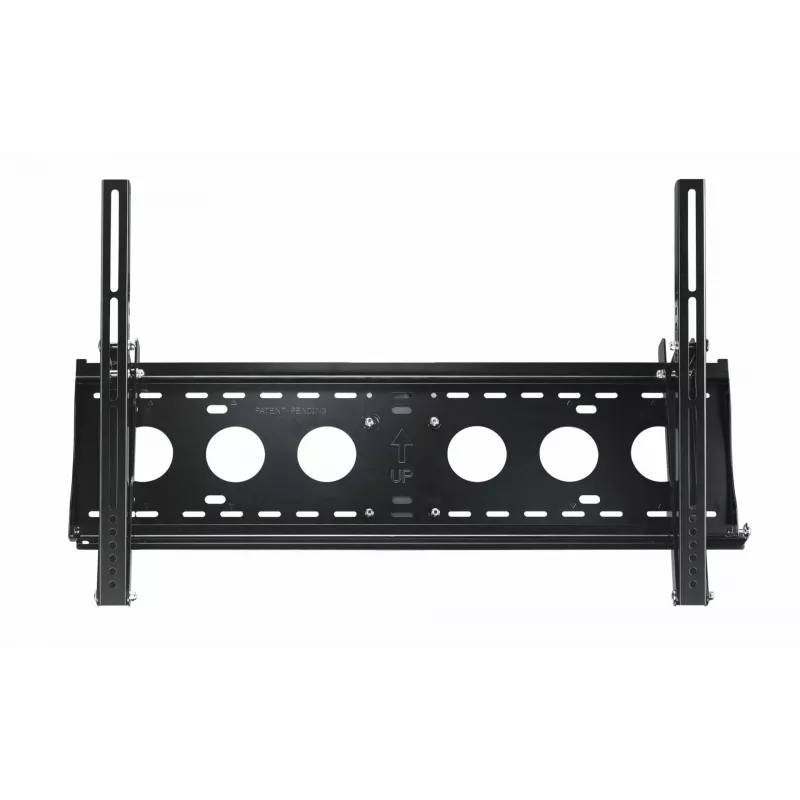

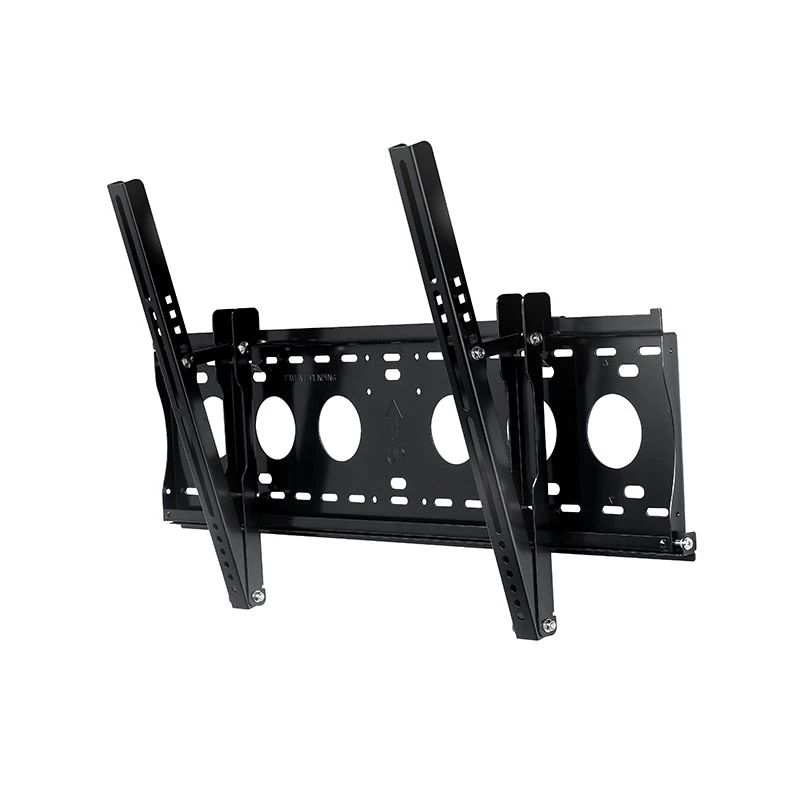

The AG Neovo LMK-01 is a wall mount kit designed for flat-panel screens from 42" up to 86". It supports VESA patterns up to 750 x 450 mm and a maximum load of 80 kg. The mount offers a tilt range of 0° to 15° and comes in a black finish suitable for residential and professional installations.

Advantages

The mount provides robust support for large displays with a rated capacity of 80 kg and compatible VESA sizes up to 750 x 450 mm. Its 0–15° tilt range allows for basic angle adjustment to reduce glare and optimize viewing. With a compact, all-black appearance and a total unit weight of 5.1 kg, the LMK-01 integrates into a variety of environments while supporting a single display up to 86".

Suitable for

• Wall-mounting large TVs and commercial displays (42"–86")
• Conference rooms and meeting spaces
• Reception areas and digital signage installations
• Home entertainment setups with large screens

Key specifications

• Maximum screen size: 86"
• Maximum VESA mount: 750 x 450 mm
• Maximum weight capacity: 80 kg
• Number of displays supported: 1
• Product colour: Black
• Product weight: 5.1 kg
• Tilt range: 0° to 15°

How to use

Choose a suitable solid wall and confirm that it can support the combined weight of the mount and display. Follow the included installation instructions to attach the wall plate securely, align and fix the mounting arms to the display using the appropriate VESA hole pattern (up to 750 x 450 mm), then lift and secure the display onto the wall plate. Adjust the tilt within the 0–15° range to achieve the desired viewing angle and confirm all fasteners are tightened before regular use.

Recommendations

Use appropriate wall anchors or mounting hardware for the wall type (concrete, brick, or timber stud). Verify the TV or display weight does not exceed the 80 kg capacity and ensure VESA hole pattern compatibility. For safety, two people are recommended when lifting and mounting large screens.
