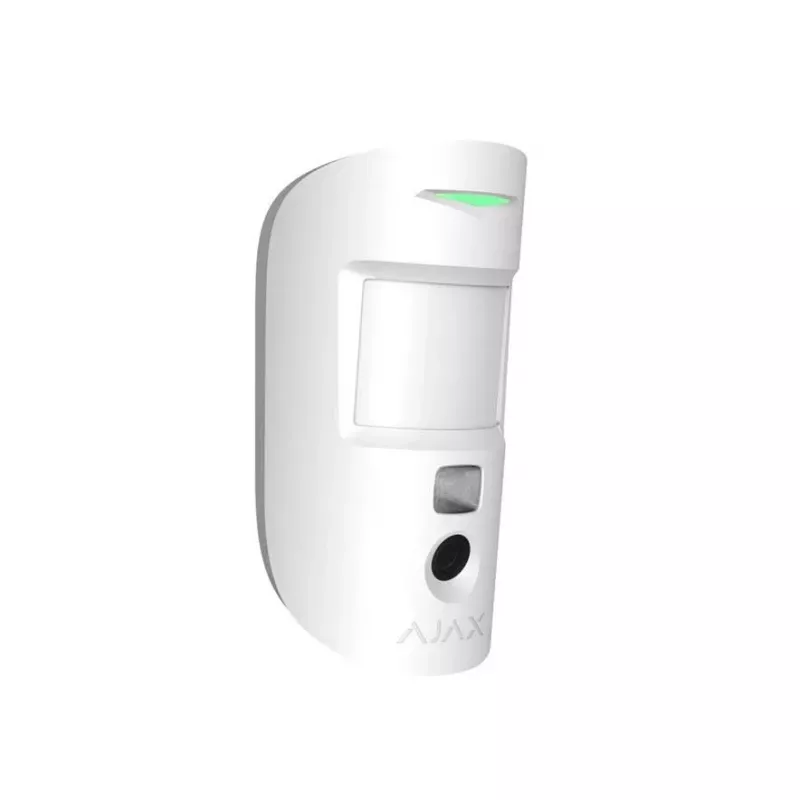

AJAX MotionCam Indoor (PhOD) wit - PIR-bewegingsmelder met camera

The AJAX MotionCam Indoor (PhOD) is a wireless motion detector with a built-in camera that captures photos on demand or upon alarm. Designed for indoor use, it combines a passive infrared (PIR) sensor with a VGA camera to provide visual verification of events. The device is compatible with AJAX Hub systems and supports Jeweller and Wings wireless protocols for reliable communication up to 1700 m in open space.

Advantages

Photo on Demand (PhOD) allows you to request images at any time via the Ajax app. The detector features pet immunity up to 20 kg, tamper protection, and IR backlight for night vision up to 7 m. With a battery life of up to 4 years (2x CR123A), it offers long-term, maintenance-free operation.

Suitable for

• Indoor security systems requiring visual event verification
• Homes with pets (up to 20 kg)
• Integration with AJAX Hub 2, Hub 2 Plus, or Hub 2 (4G)

Key specifications

• Detection element: PIR sensor
• Motion detection range: up to 12 m
• Detection angles: horizontal 88.5°, vertical 80°
• Camera sensor: CMOS, photo resolution up to 640x480 pixels (VGA)
• Photo series: 1-5 photos
• IR backlight: yes, up to 7 m
• Wireless technology: Jeweller (control), Wings (image transmission)
• Communication range: up to 1700 m (open space)
• Frequency band: 868.0 – 868.6 MHz
• Power supply: 2 x CR123A batteries (included)
• Battery life: up to 4 years
• Operating temperature: -10°C to +40°C
• Humidity: up to 75%
• Tamper protection: yes (against opening, removal)
• Color: white
• Compatibility: Ajax Hubs (Hub 2, Hub 2 Plus, Hub 2 (4G))
• Certification: CE, EN 50131 Grade 2

Recommendations

For optimal performance, install the MotionCam Indoor at a height of 2.4 m in a corner of the room. Avoid direct sunlight and heat sources. Use only recommended CR123A batteries.
