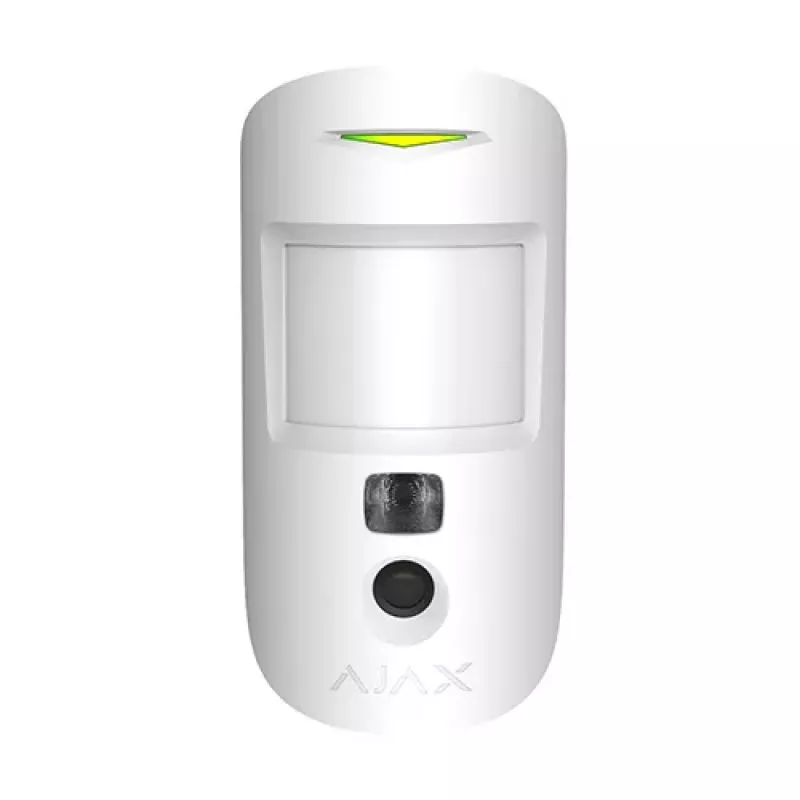

AJAX MotionCam Indoor wit PIR-bewegingsmelder met camera

The AJAX MotionCam Indoor is a wireless motion detector with a built-in camera, designed for indoor security applications. It combines a passive infrared (PIR) sensor with a camera that captures a series of photos upon alarm, providing visual verification of events. The device communicates via Jeweller and Wings protocols, ensuring reliable alarm and image transmission over distances up to 1700 m in open space.

Advantages

Pet immunity up to 50 cm height and 20 kg weight reduces false alarms. Adjustable sensitivity (3 levels) and anti-tampering features including tamper protection and jamming detection enhance security. Battery-powered with up to 4 years of battery life, the detector is easy to install without wiring.

Suitable for

• Indoor use in homes, offices, and retail spaces
• Integration with AJAX security systems (Hub 2, Hub 2 Plus, Hub 2 4G)
• Applications requiring visual alarm verification

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection range: Up to 12 m
• Detection angle: 88.5° horizontal, 80° vertical
• Camera resolution: Up to 640x480 pixels (series of photos)
• Communication protocols: Jeweller (alarm), Wings (image transmission)
• Wireless range: Up to 1700 m (open space)
• Frequency band: 868.0 – 868.6 MHz
• Power supply: 2 × CR123A batteries
• Battery life: Up to 4 years
• Pet immunity: Up to 50 cm height, 20 kg weight
• Operating temperature: -10°C to +40°C
• Humidity: Up to 75%
• Color: White
• Recommended installation height: 2.4 m

Recommendations

For optimal performance, install the MotionCam Indoor at the recommended height of 2.4 m and ensure compatibility with an AJAX hub. Regularly check battery status via the AJAX app.
