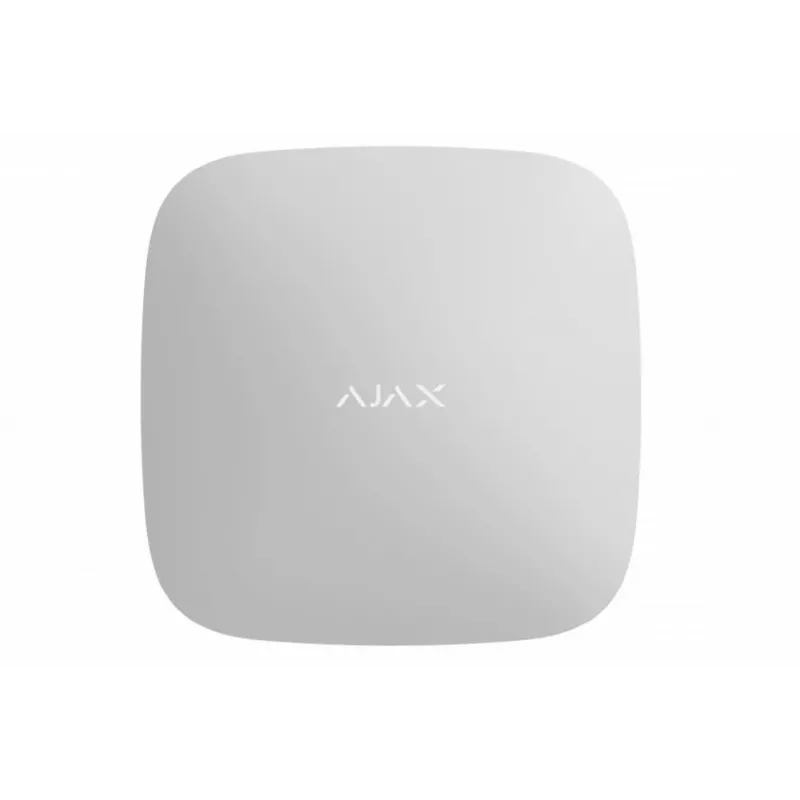

Ajax ReX 2 smart home signaalversterker bedraad & draadloos 1700 m bereik

Ajax ReX 2 is a smart home signal extender that expands the coverage area of an Ajax security system. It supports wired (Ethernet) and wireless connections and extends radio communication up to 1,700 m to help connect detectors and devices across large properties. ReX 2 works with compatible Ajax hubs (Hub 2, Hub 2 Plus, Hub Hybrid) and supports Jeweller for command and alarm transmission and Wings for photo data, enabling timely delivery of events and visual alarm verification.

Advantages

ReX 2 increases the protected area and allows flexible placement of security devices, supporting up to five range extenders per system to cover large estates, business centres, warehouses, or production facilities. It provides fast alarm delivery (from 0.3 s), photo verification with MotionCam detectors, encrypted transmission, dual-protocol radio communication, and a backup battery for continued operation during power outages. The unit also supports automatic firmware updates over the air and quick installation via QR code.

Suitable for

• Business centres and office complexes
• Large private estates and farms
• Warehouse complexes and distribution centres
• Production facilities and industrial buildings

Key specifications

• Maximum radio communication range with hub: up to 1,700 m
• Supports wired Ethernet connection as an alternative/additional channel
• Alarm transmission speed: from 0.3 second
• Photo verification support with MotionCam and MotionCam Outdoor detectors
• Backup battery runtime: up to 38 hours
• Protocols: Jeweller (commands/events) and Wings (visual data)
• Compatible hubs: Hub 2, Hub 2 Plus, Hub Hybrid
• AC input voltage: 110–240 V, 50/60 Hz
• Dimensions: 163 × 36 × 163 mm
• Weight: 0.33 kg
• Colour: White

How to use

Install ReX 2 in a location that improves radio coverage between the hub and connected devices; placement may be adjusted to achieve optimal signal strength. Add the extender to the Ajax system by scanning its QR code in the Ajax app, assign a name and room, and complete the real‑time configuration in the app. If required, ReX 2 can operate via Ethernet as the primary or backup channel. When used with MotionCam detectors, the extender relays alarm events and photo snapshots to users and monitoring stations.

Recommendations

For reliable performance, place ReX 2 so that its radio path to the hub is as unobstructed as possible; use Ethernet where radio penetration is limited by steel or concrete. Regularly allow automatic OS Malevich updates to install and ensure detectors and hubs have the appropriate firmware for photo verification features.
