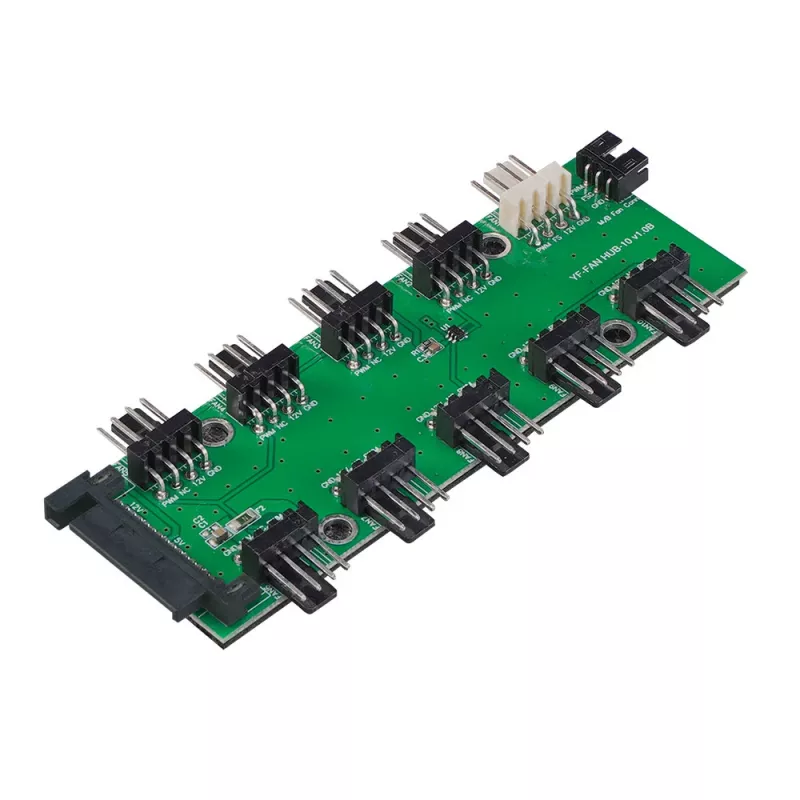

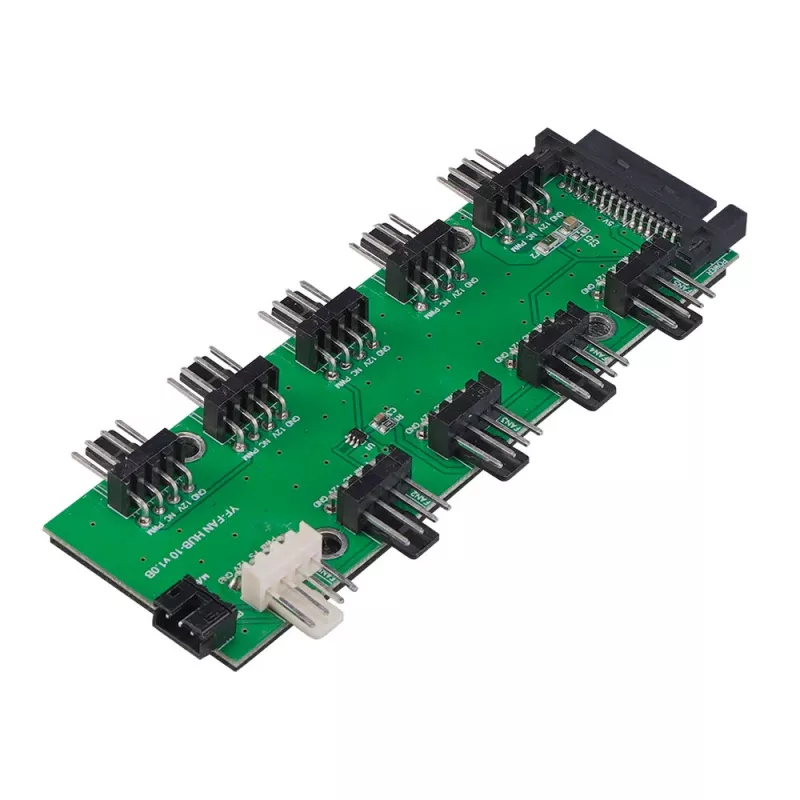

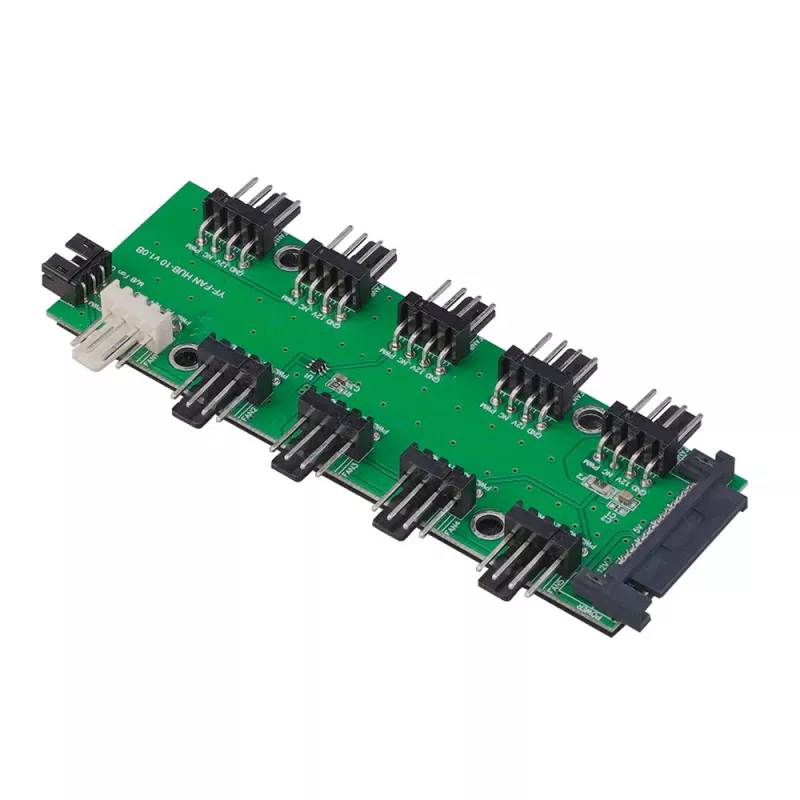

Akasa FLEXA FP10H PWM fan header expander 1 naar 10 met 30cm kabel

The Akasa FLEXA FP10H is a high-quality PWM fan header expander that allows you to connect up to 10 PWM fans to a single motherboard fan header. With a 30cm cable, it provides flexible installation options and ensures synchronized PWM control for all connected fans. The SATA power connector delivers ample power, supporting up to 4.5A total current output. Ideal for building high-performance PCs with multiple fans, this expander simplifies cable management and enhances airflow.

Advantages

Expand a single PWM fan header to support up to 10 fans, reducing cable clutter and enabling centralized fan control. The synchronized PWM signal ensures all fans operate at the same speed, maintaining consistent cooling performance. The self-adhesive pad allows easy mounting inside the case.

Suitable for

• PC builders and enthusiasts who need to control multiple PWM fans from one motherboard header
• High-performance gaming or workstation systems requiring extensive cooling
• Custom water cooling loops with multiple radiator fans
• Server or NAS builds where efficient airflow is critical

Key specifications

• Number of Fan Headers: 10
• Input Fan Connector: 1x 4-pin PWM (Motherboard)
• Output Fan Connectors: 10x 4-pin PWM (Fans)
• Power Input: SATA Power Connector
• PWM Control: Yes (Synchronized for all connected fans)
• Fan Speed Monitoring: Yes (Only for Fan 1 header)
• PWM Cable Length: 30 cm
• Mounting Type: Self-adhesive pad
• Material: PCB
• Compatibility: 4-pin PWM fans
• Maximum Current Output (per port): 1A
• Maximum Total Current Output: 4.5A
• Voltage: 12V DC
• Included Accessories: Self-adhesive pad

Recommendations

For optimal performance, connect the SATA power cable directly to the power supply. Ensure that the total current draw of all connected fans does not exceed 4.5A. This expander is best used with PWM fans that support speed control via the motherboard.
