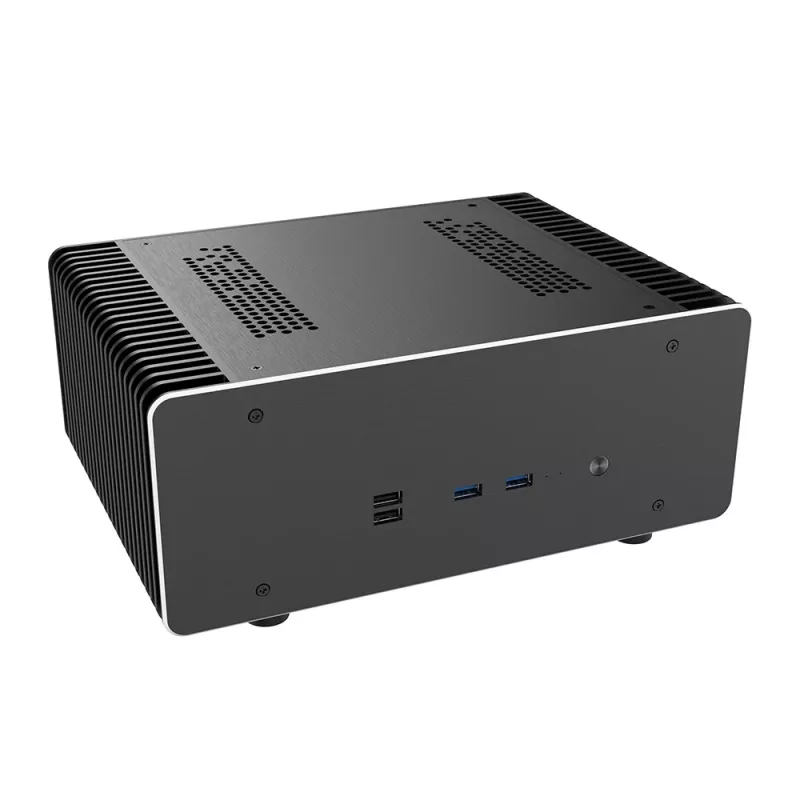

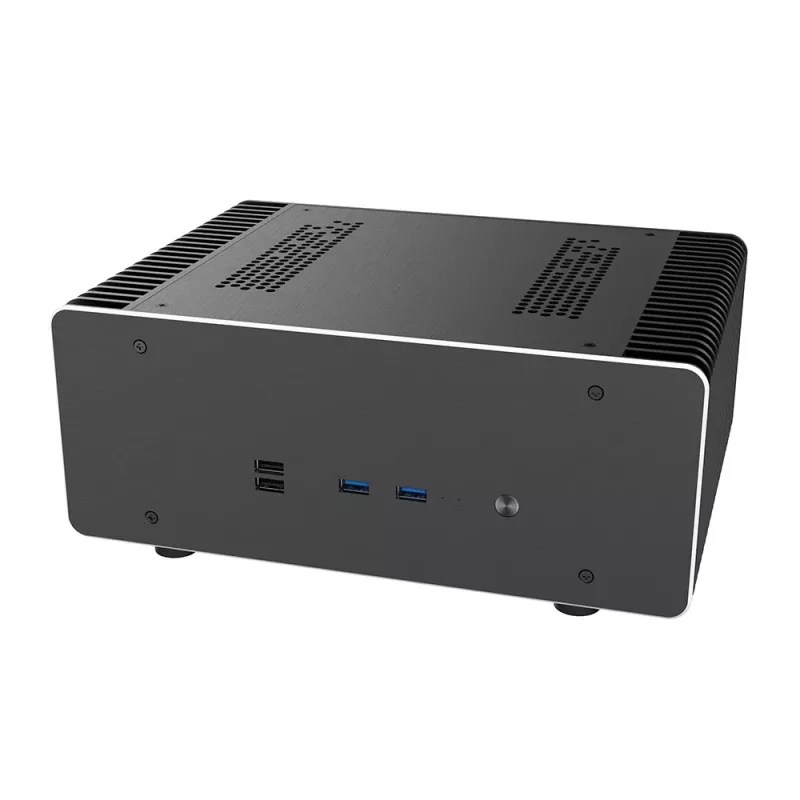

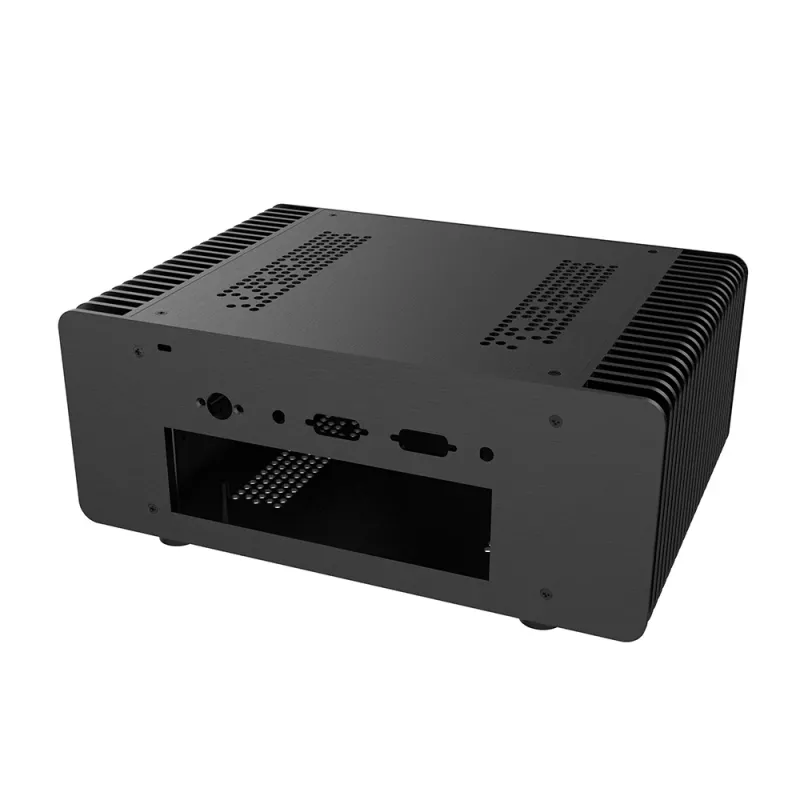

Akasa Maxwell Pro Plus Mini-ITX fanless chassis Intel LGA 1700 zwart

The Akasa Maxwell Pro Plus is a premium Mini-ITX fanless chassis designed for Intel LGA 1700 processors (12th, 13th, 14th Gen). Its solid aluminum construction acts as a passive heatsink, enabling silent operation with CPUs up to 65W TDP. Ideal for HTPC, office, or industrial applications where noise-free computing is essential.

Advantages

Completely silent fanless cooling, robust aluminum build, VESA mountable, and compact footprint. Supports up to 2.5" SSD/HDD and offers versatile front I/O including USB 3.2 Gen 1 and USB 2.0 ports.

Suitable for

• Home theater PCs (HTPC)
• Silent office workstations
• Industrial embedded systems
• Digital signage

Key specifications

• Case Type: Mini-ITX Fanless Chassis
• Material: Aluminum
• Color: Black
• Motherboard Form Factor: Mini-ITX
• CPU Socket: Intel LGA 1700
• Supported CPU Generations: Intel 12th, 13th, 14th Gen Core i3/i5/i7/i9
• Max CPU TDP: 65W
• Cooling: Fanless Passive
• Drive Bays: 1 x 2.5" SSD/HDD (up to 9.5mm)
• Front I/O: 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A, 1 x Audio Out, 1 x Mic In
• Expansion Slots: None
• Power Supply: Internal DC-DC ATX power board (not included)
• VESA Mount: 75x75mm, 100x100mm
• Security: Kensington Lock Slot
• Power Connector: DC-in jack (for external AC adapter)

Recommendations

Pair with an Akasa external AC adapter and a compatible DC-DC power board for a complete silent system. Ensure CPU TDP does not exceed 65W for optimal thermal performance.
