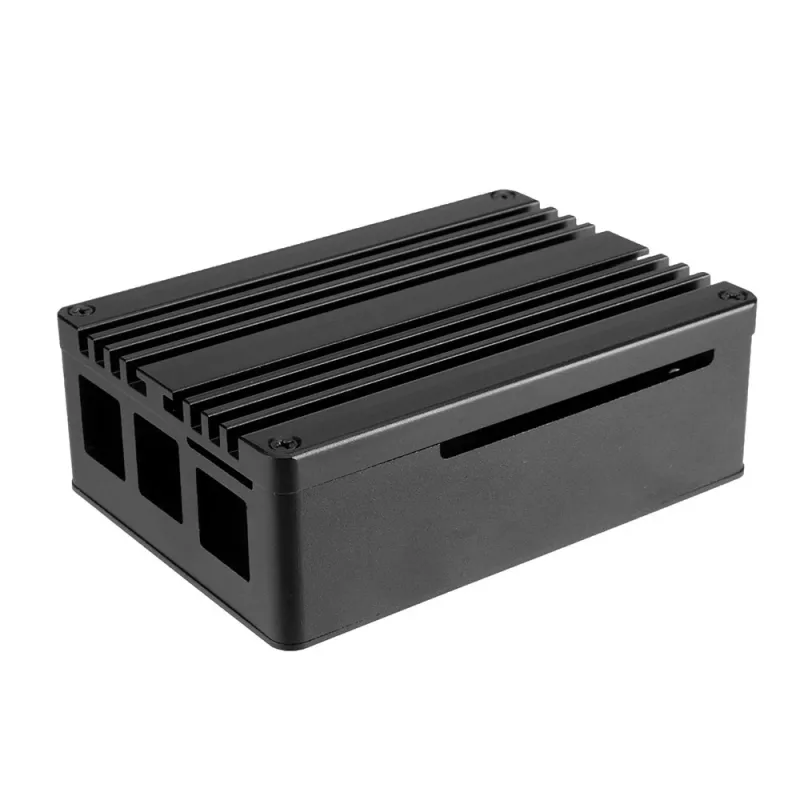

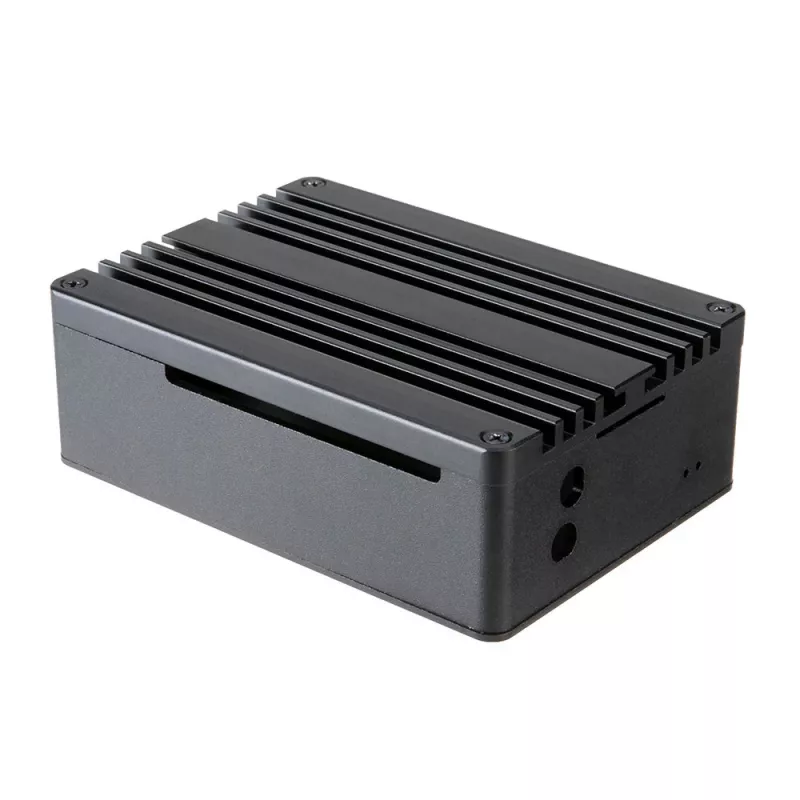

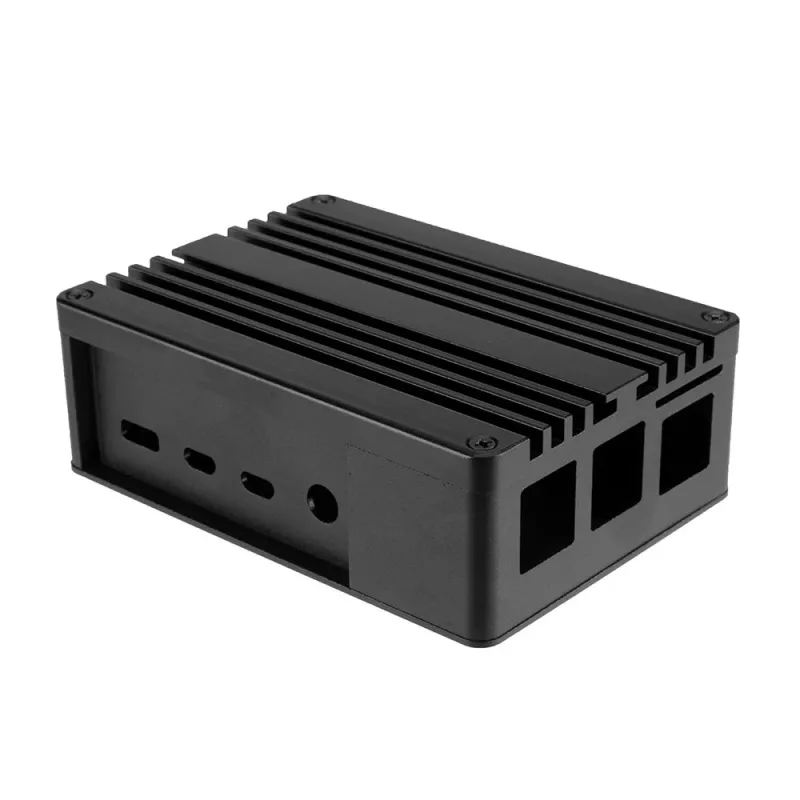

Akasa Pi-4 Case - geanodiseerd aluminium - zwart

The Akasa Pi-4 Case is a premium, fanless enclosure designed specifically for the Raspberry Pi 4 Model B. Crafted from anodized aluminum, this case provides excellent heat dissipation while maintaining a sleek, compact profile. It offers full access to all ports, GPIO header, and SD card slot, making it ideal for media centers, industrial applications, IoT projects, and silent computing setups.

Advantages

Silent operation with passive cooling; durable, dust-proof construction; easy assembly with included thermal kit; VESA mountable for flexible placement.

Suitable for

• Raspberry Pi 4 Model B
• Media centers and home theater PCs
• Industrial automation and IoT projects
• Silent computing environments

Key specifications

• Material: Anodized Aluminum
• Color: Black
• Cooling: Fanless (passive) with integrated heatsink
• GPIO Access: Yes (40-pin header cut-out)
• Port Access: Full access to USB 3.0, USB 2.0, Gigabit Ethernet, dual Micro HDMI, audio/video, USB-C power
• Antenna Support: External Wi-Fi/Bluetooth antenna cut-outs
• Mounting: VESA 75x75mm and 100x100mm compatible
• LED Indicators: Visible
• SD Card Access: Yes
• Dimensions: 95 x 68 x 47 mm
• Weight: 0.15 kg

Recommendations

For optimal thermal performance, ensure proper ventilation around the case. The included thermal kit aids in heat transfer from the Raspberry Pi's processor to the aluminum chassis.
