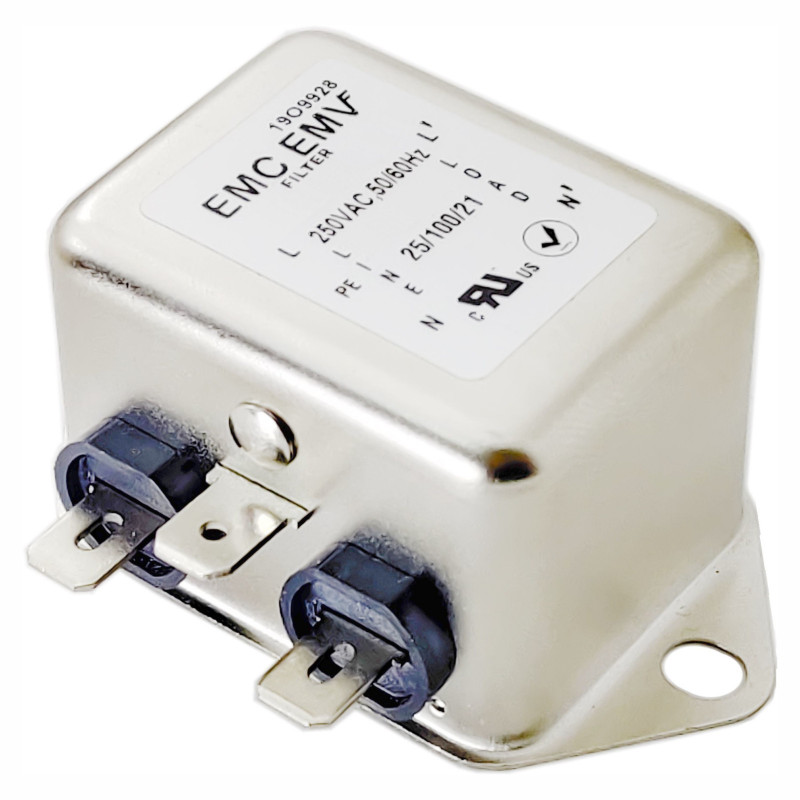

Akyga EN2010-12-F eenfasig EMC-filter, 12 A, 120-250 V AC, 50/60 Hz, 6,3 mm platte stekker

The Akyga EN2010-12-F is a single phase EMI filter designed for stable operation under higher loads, supporting up to 12 A. Its two-pole design and 6.3 mm connectors ensure easy installation and secure connection, while the metal housing protects against external interference. With low leakage current and a wide voltage range, it is suitable for precision and robust applications.

Key features

• Supports up to 12 A
• Two-pole design
• 6.3 mm connectors
• Metal housing
• Low leakage current
• Wide voltage range

Specifications

• Brand: Akyga
• MPN: EN2010-12-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 12 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C - +100°C
• Product size (L x W x H): 61 x 56 x 29 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138453
