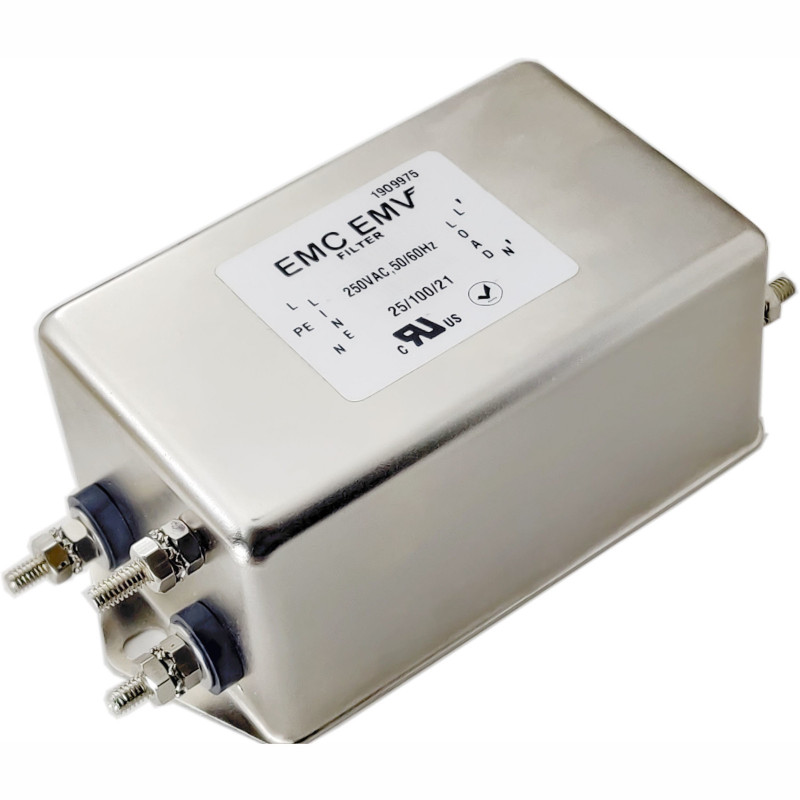

Akyga EN2020-30-S eenfasig EMC-filter, 30 A, 120-250 V AC, 50/60 Hz, M4-schroefaansluitingen

The Akyga EN2020-30-S is a single-phase EMI filter designed for demanding conditions and high current loads up to 30 A. It is suitable for industrial applications, server rooms, power systems and advanced automation installations, effectively protecting equipment from electromagnetic interference. The filter features M4 screw connectors and a metal housing for durability and shielding.

Key features

• Anti-interference EMI filter
• Maximum working current: 30 A
• M4 connectors
• Metal housing
• 2 poles

Specifications

• Brand: Akyga
• MPN: EN2020-30-S
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 30 A
• Leads: M4 connectors
• Leakage current: 0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 124 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138583
