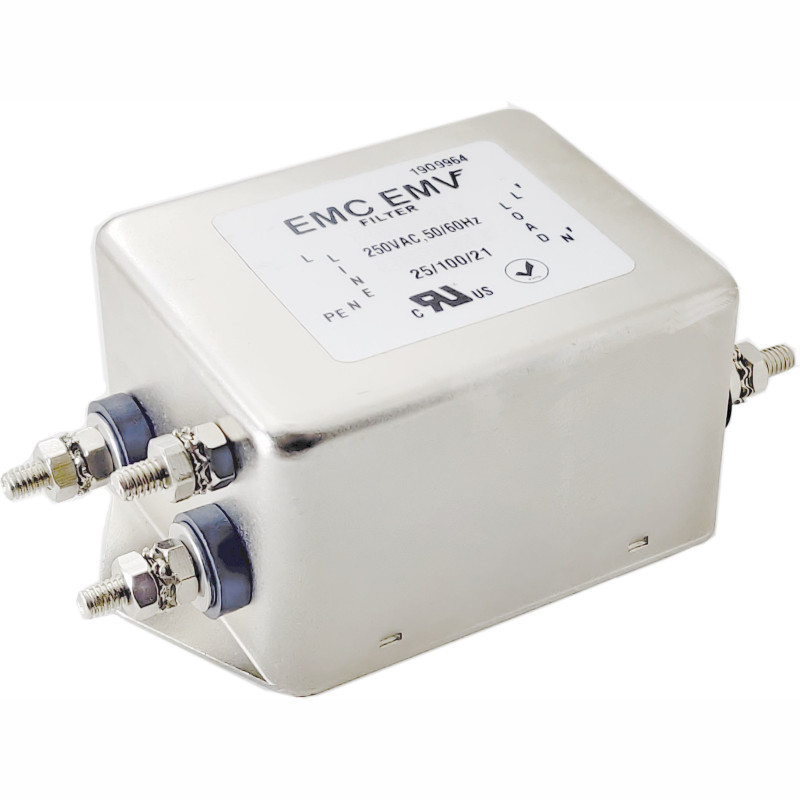

Akyga EN2030-20-S eenfasig EMC-netfilter 20 A, 120–250 V AC, 50/60 Hz, M4-schroefaansluitingen

The Akyga EN2030-20-S is a single phase EMI filter designed for systems requiring effective interference filtering at currents up to 20 A. It is suitable for industrial environments, automation, and advanced power equipment, providing a reliable and clean power supply.

Key features

• Maximum working current: 20 A
• M4 screw connectors for stable connection
• Metal housing for mechanical protection and interference suppression
• Leakage current: 0.90 mA @ 120 VAC 60 Hz, 1.57 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Operating temperature: -25°C to +100°C
• CE, RoHS, and REACH compliant

Specifications

• Brand: Akyga
• MPN: EN2030-20-S
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 20 A
• Leads: M4 connectors
• Leakage current: 0.90 mA @ 120 VAC 60 Hz, 1.57 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 95 x 52 x 38 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138675
