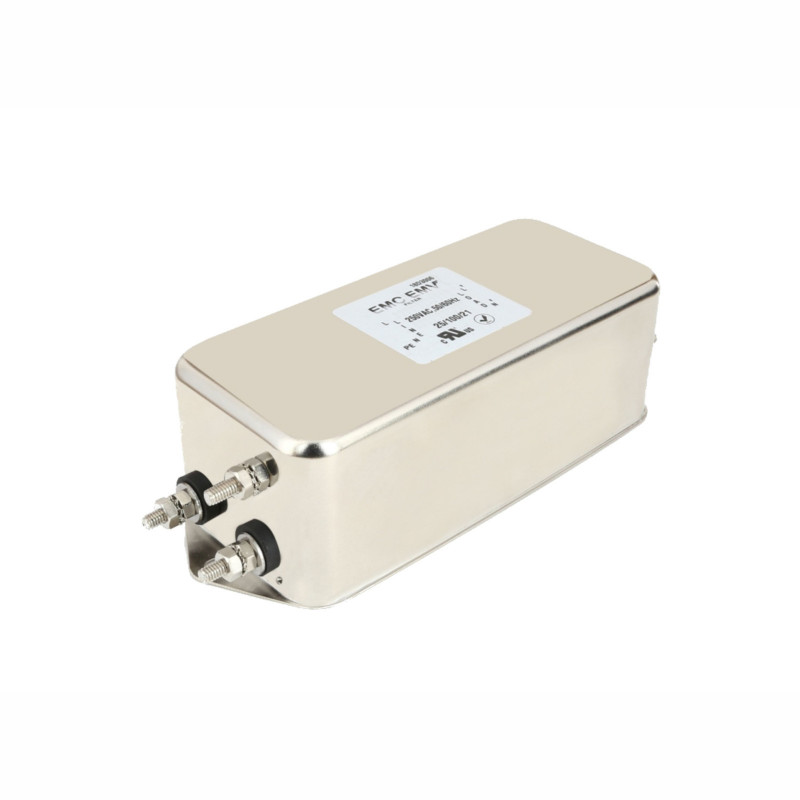

Akyga EN2070-36-S eenfasige EMI-netfilter 36 A, 120–250 V AC, 50/60 Hz, M4-schroefaansluitingen

The Akyga EN2070-36-S is a single-phase EMI filter designed to protect advanced power systems from electromagnetic interference at loads up to 36 A. It features M4 screw connectors and a metal housing for effective shielding and resistance to external influences.

Key features

• Maximum working current: 36 A
• M4 screw connectors
• Metal housing
• Number of poles: 2
• Leakage current: 0.90 mA @ 120 VAC 60 Hz, 1.57 mA @ 250 VAC 50 Hz
• Operating temperature: -25°C to +100°C
• CE, RoHS, and REACH compatibility

Specifications

• Brand: Akyga
• MPN: EN2070-36-S
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 36 A
• Leads: M4 connectors
• Leakage current: 0.90 mA @ 120 VAC 60 Hz, 1.57 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 162 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138866
