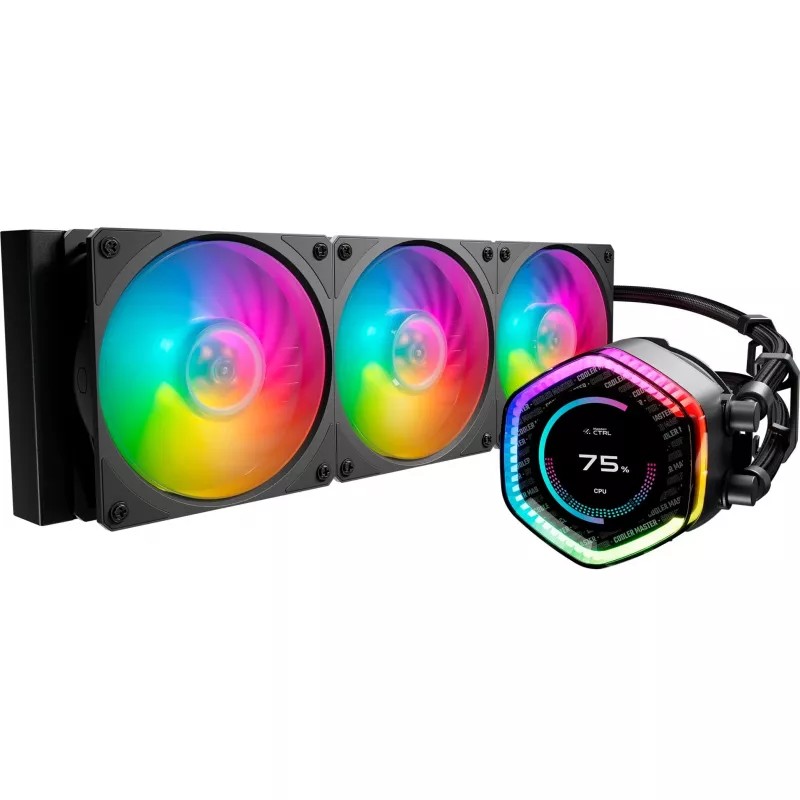

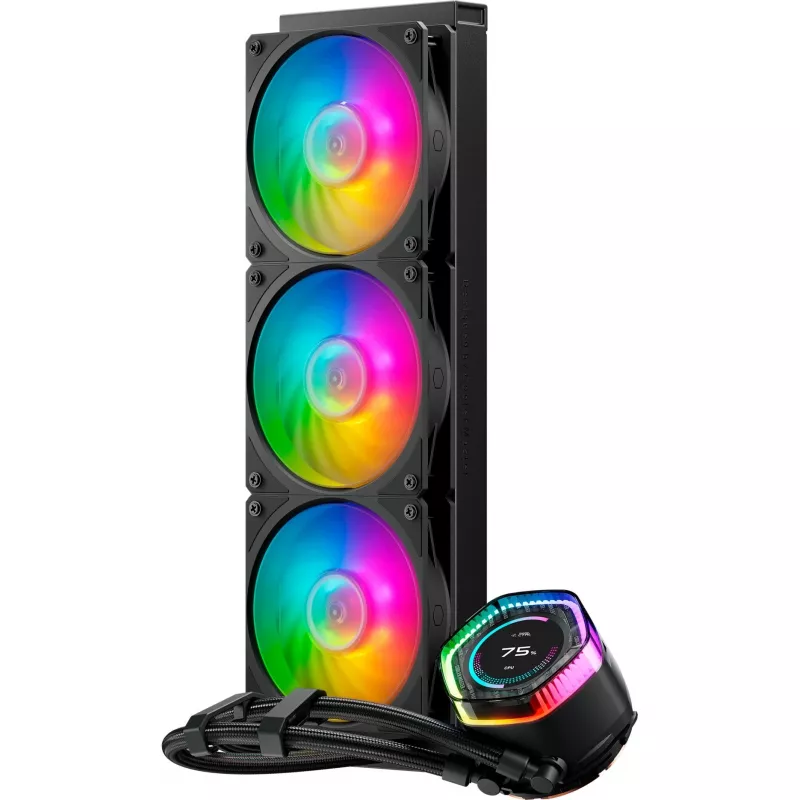

All-in-one-vloeistofkoeler Cooler Master MasterLiquid 360 ION

The Cooler Master MasterLiquid 360 ION is an all-in-one liquid cooler designed for high-performance processors. It combines a low-profile, high-density radiator with three pre-installed Mobius 120P ARGB fans and a Gen X dual-chamber pump featuring a 2.1-inch customizable LCD screen. The unit supports major desktop CPU sockets and uses EPDM + IIR composite tubing for improved airtightness, bendability and reduced evapotranspiration.

Advantages

The dual-chamber pump with a single-piece impeller and graphite ceramic shaft increases structural strength and temperature resistance while maintaining efficient coolant flow. A 2.1-inch LCD on the pump offers full display customization via MasterCtrl software, and built-in ARGB lighting and automatic PWM adjustment enable broad compatibility with major motherboards. The included Mobius 120P ARGB fans and an in-house designed radiator provide high fin density and balanced fan curves for effective heat dissipation. Tube clips and eco-friendly, reduced-volume packaging add practical installation and transport benefits.

Suitable for

• Cooling high-performance desktop CPUs in gaming and workstation builds
• Systems requiring a compact, low-profile radiator with strong thermal performance
• Users wanting customizable pump display and ARGB lighting

Key specifications

• Type: All-in-one liquid cooler
• Fan diameter: 120 mm (Mobius 120P ARGB, x3)
• Airflow: 107.1 m³/h (typical fan specification)
• Maximum air pressure: 3.63 mmH2O
• Bearing: Loop Dynamic Bearing (LDB)
• Supported sockets: LGA 1150 / 1151 / 1155 / 1156 / 1200 / 1700, AM4, AM5
• Product colour: Black
• Weight: 2 kg

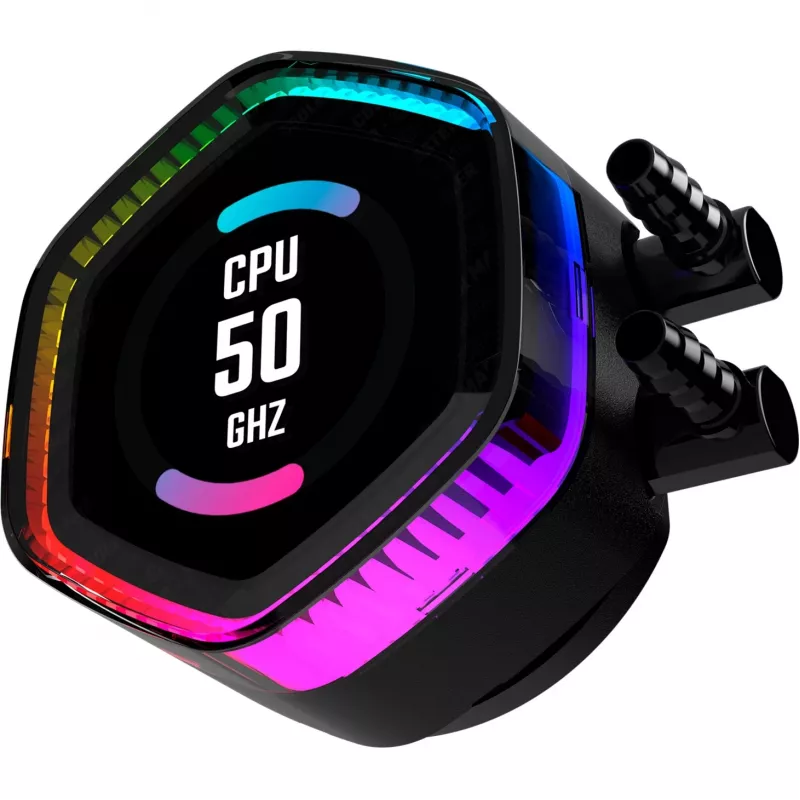

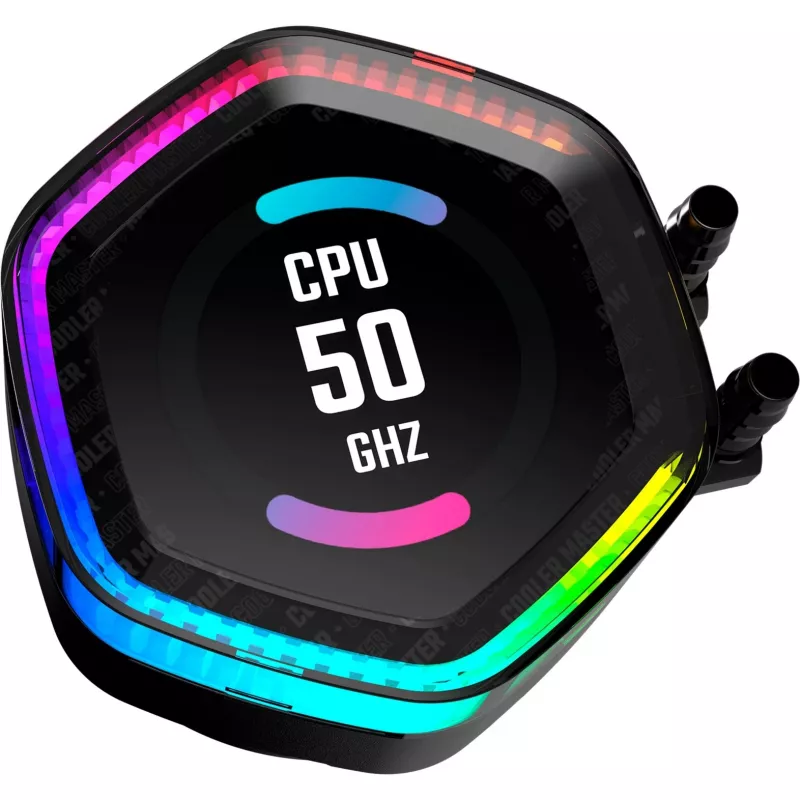

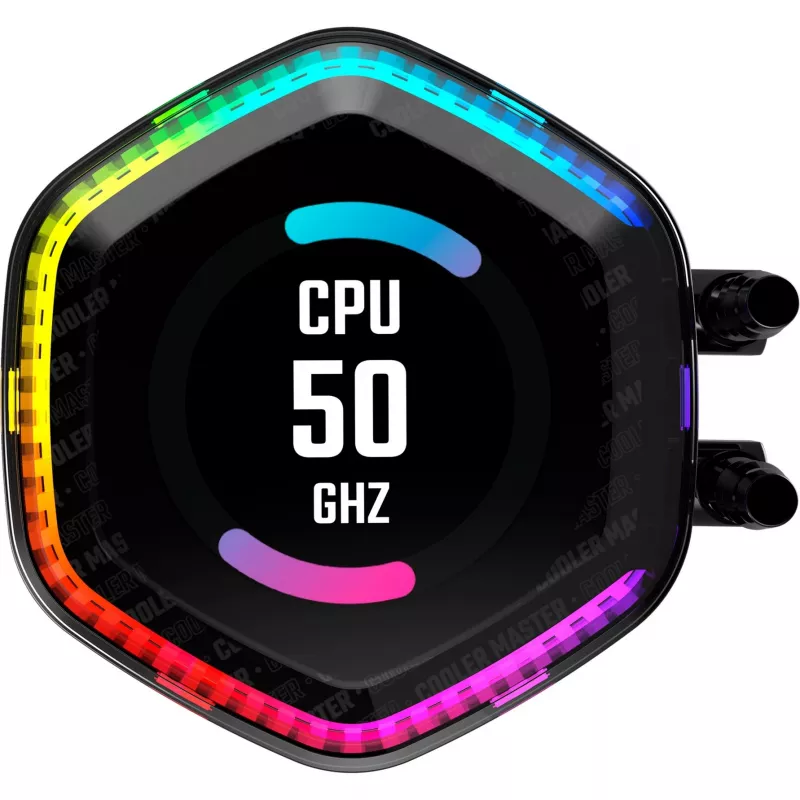

• Pump display: 2.1-inch LCD, customizable via MasterCtrl

How to use

Install the radiator and fans to a compatible case mounting position and secure the pump/block to the CPU socket following the included Cooler Master mounting instructions for the specific socket. Connect the pump power, RGB and PWM fan headers to the motherboard or supplied controller, then install MasterCtrl software to customize the 2.1-inch LCD and ARGB lighting. Ensure tubing is routed with included tube clips to reduce stress and aid cable management. Power on the system and verify pump and fan operation in BIOS or monitoring software.

Recommendations

For optimal performance, mount the radiator where airflow is unobstructed and set the motherboard fan curve to allow automatic PWM adjustment. Periodically check tubing and fittings for secure seating; avoid excessive bending near the pump and radiator to preserve tube integrity.
