All-in-one-vloeistofkoeler DeepCool MYSTIQUE 240 ARGB

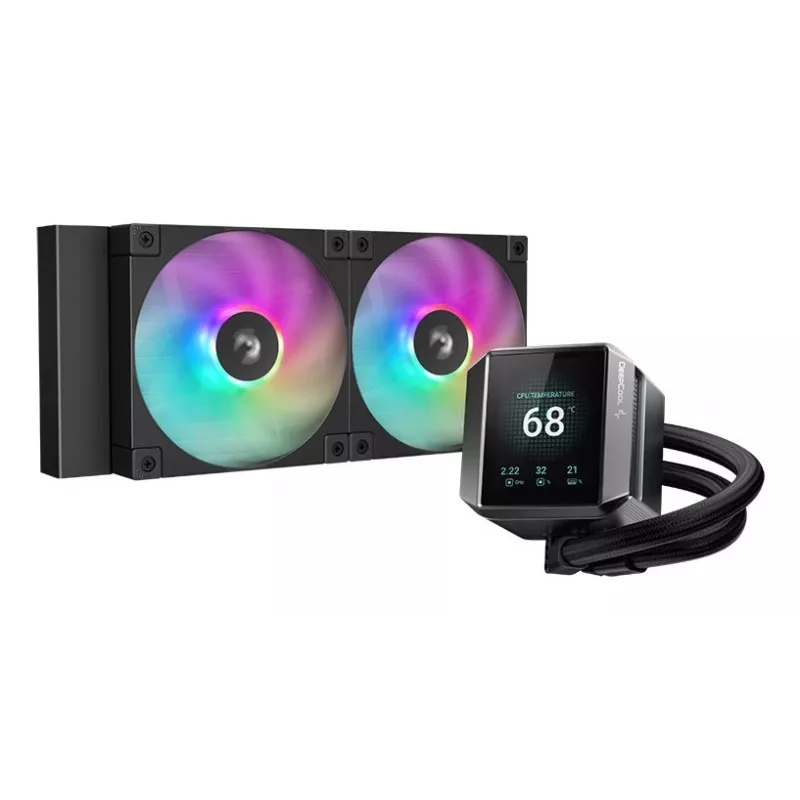

The DeepCool MYSTIQUE 240 ARGB is an all-in-one liquid CPU cooler with a 2.8" TFT LCD on the pump head and two high-performance 120 mm ARGB fans. The 2.8" display supports 640×480 resolution and 16.7M colors and can show custom images or animated GIFs; a built-in gyroscope automatically adjusts the screen orientation. The cooler uses DeepCool's 5th generation pump and an optimized coldplate with 0.1 mm intensive flow channels to improve heat transfer. Included software (DeepCreative) provides system statistics, device control, RGB synchronization and thermal warning features. The package includes mounting hardware for mainstream Intel and AMD sockets and DeepCool's patented Anti-Leak Technology for improved reliability.

Advantages

The MYSTIQUE 240 ARGB combines a sharp 2.8" customizable LCD with upgraded cooling components — a 5th generation high-performance pump and a redesigned coldplate — for efficient heat dissipation. Two FT12 SE PWM ARGB fans with FDB bearings deliver stable airflow and pressure while remaining quiet. Anti-Leak Technology reduces internal pressure-related failures, and DeepCreative software allows real-time monitoring, RGB control and automatic screen orientation.

Suitable for

• Cooling modern desktop CPUs in gaming and workstation builds
• PC builders who want a customizable LCD on the pump head
• Systems requiring compact 240 mm AIO cooling with ARGB lighting
• Users who need software control for fan, pump and RGB settings

Key specifications

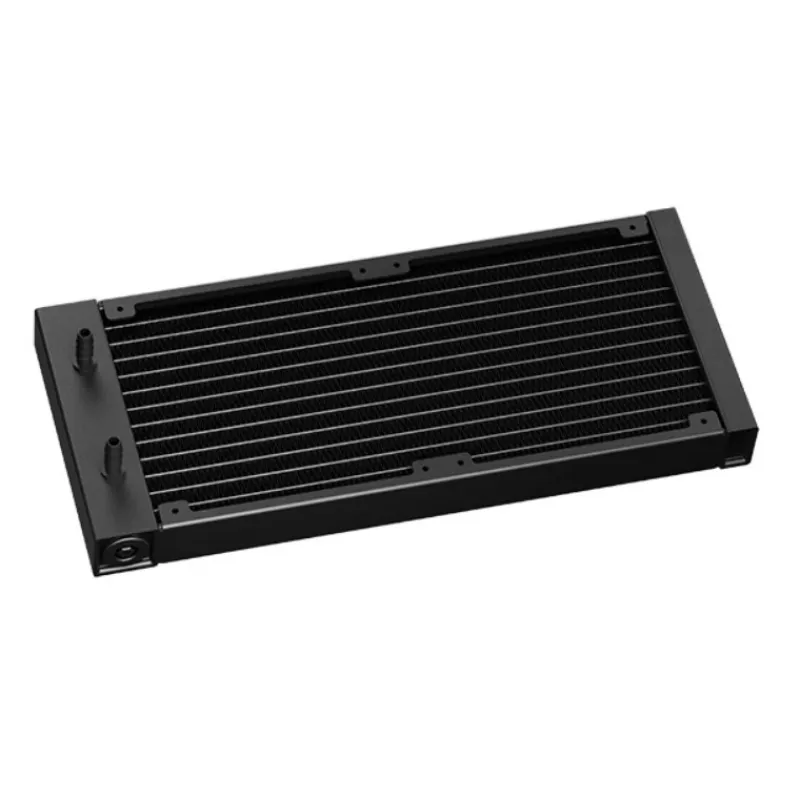

• Radiator size: 240 mm (dual 120 mm fans)

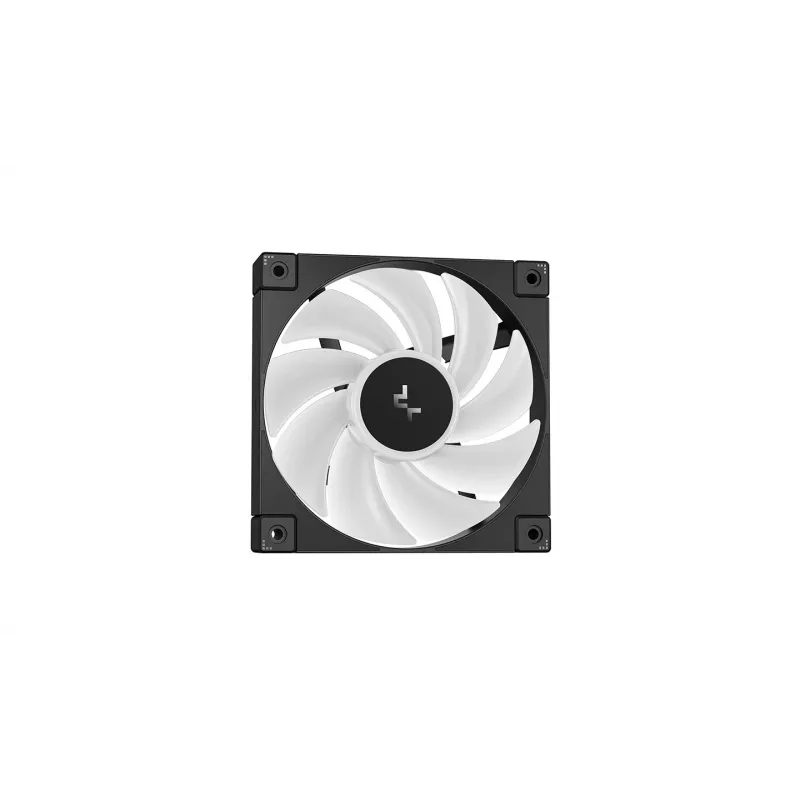

• Fans: 2 × FT12 SE PWM ARGB, PBT blades, Fluid Dynamic Bearings
• Fan speed range: 500–2400 RPM (per product data)
• Maximum air pressure: 3.48 mmH2O (per product data)
• Pump: DeepCool 5th generation, up to 3400 RPM, ≤21 dB(A)
• LCD: 2.8" TFT, 640×480 resolution, 16.7M colors, gyroscope auto-orientation

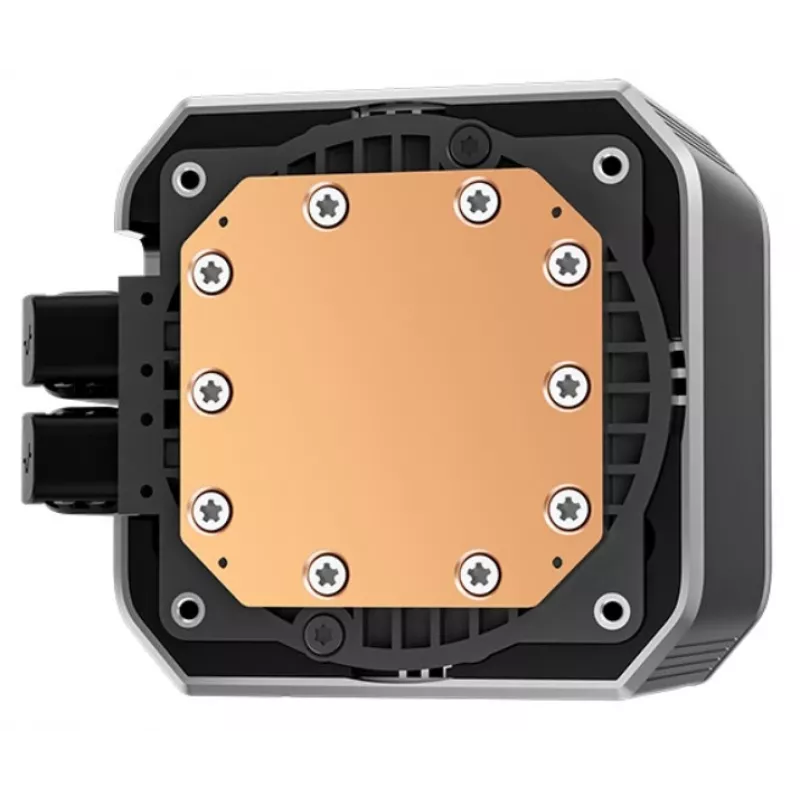

• Coldplate: redesigned with 0.1 mm intensive flow channels
• Anti-Leak Technology: built-in pressure regulation valve

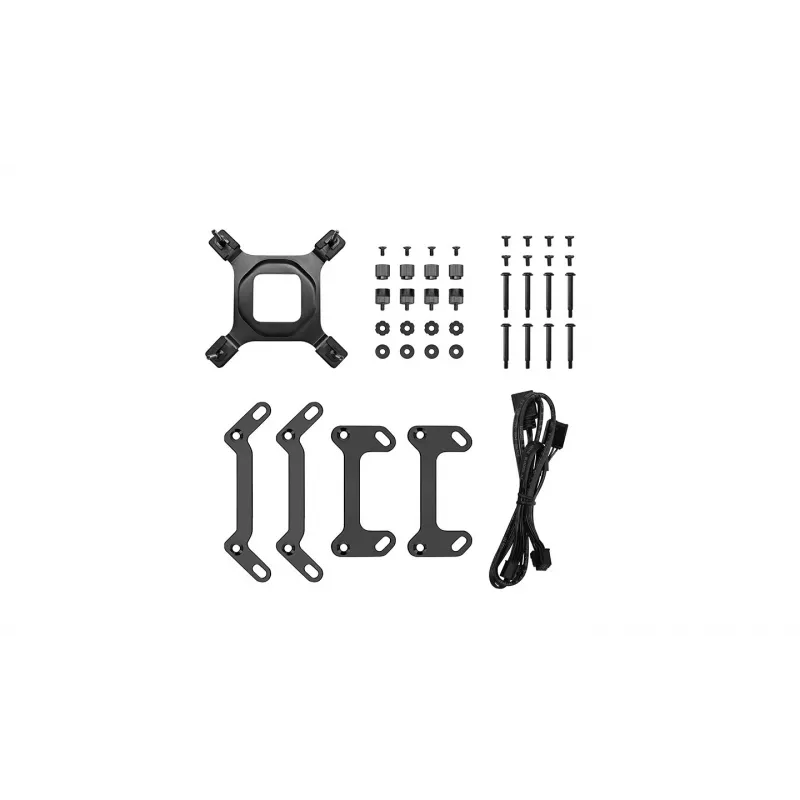

• Compatibility: mainstream Intel and AMD sockets (mounting hardware included)
• Manufacturer part number (MPN): R-LX550-BKADSNC-G-1
• EAN: 6933412728870

How to use

Install the radiator and fans into a compatible 240 mm mounting location in your PC case, attach the pump head to the CPU using the supplied mounting hardware and thermal paste, and connect the fan, pump and ARGB cables to the appropriate headers on your motherboard or controller. Install the DeepCreative software to upload images or GIFs to the 2.8" display, adjust fan and pump curves, and configure RGB synchronization or thermal color warnings.

Recommendations

Ensure firm but even mounting pressure when securing the pump to the CPU, route tubing without sharp bends, and connect ARGB and fan headers according to the motherboard manual. Keep the DeepCreative software updated to receive feature and compatibility improvements.
