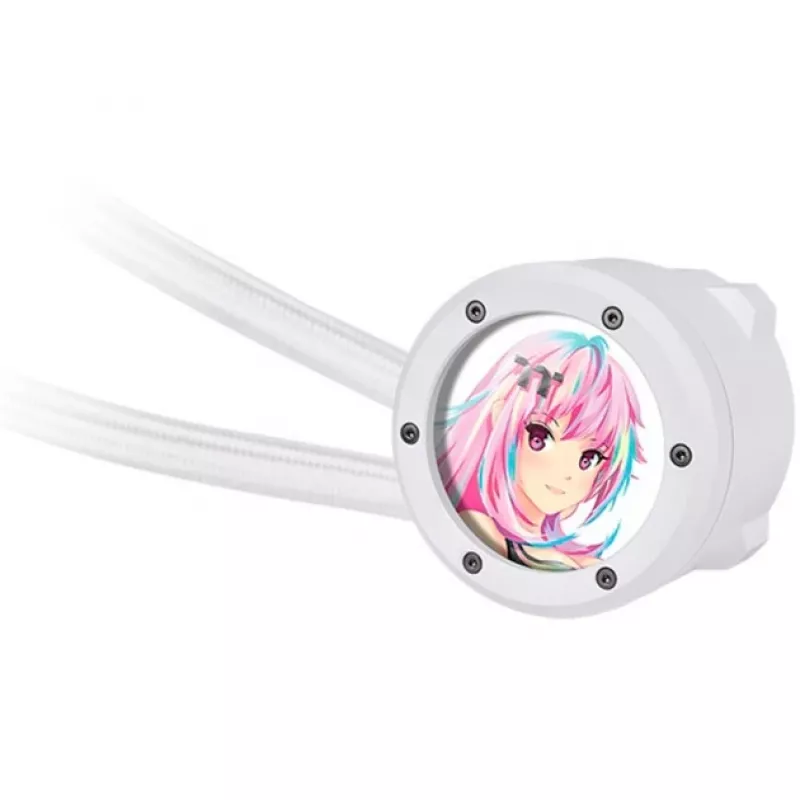

All-in-one-vloeistofkoeler Thermaltake TH360 V2 Ultra EX ARGB 12 cm wit

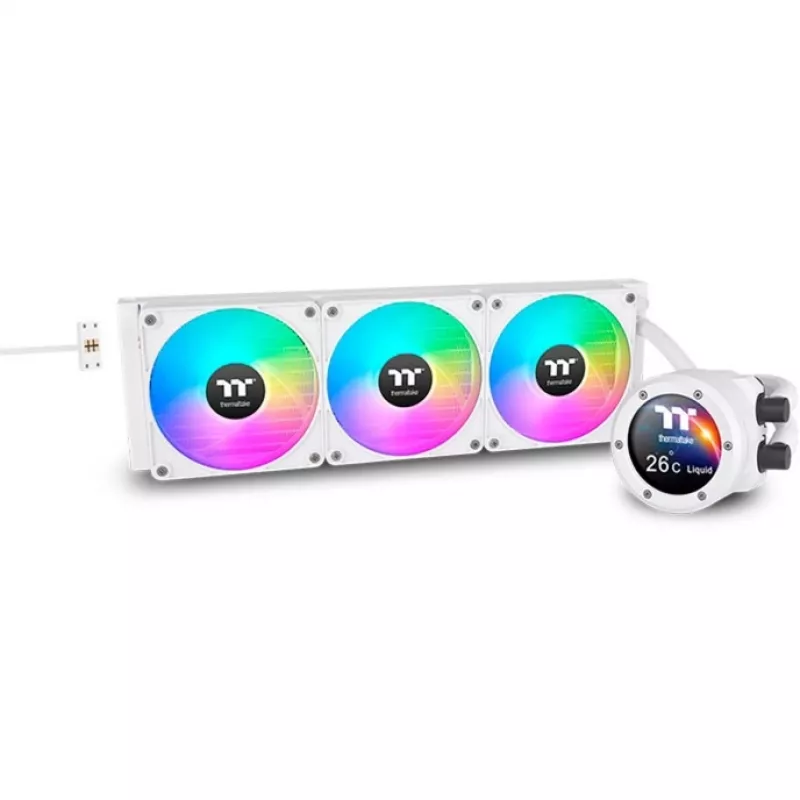

The Thermaltake TH360 V2 Ultra EX ARGB 12 cm White is an all-in-one liquid cooler designed for efficient CPU cooling in desktop systems. This AIO combines a slim 27 mm radiator with a thicker 20 mm copper chamber, a high-performance copper base plate and a reliable pump for continuous coolant circulation. The unit includes CT EX ARGB fans with MagForce 2.0 quick connect for simplified cabling and a 2.1" LCD display (480×480) that supports 16.8M colors for custom images or videos.

Advantages

The cooler provides improved cooling performance through its enhanced radiator design and copper cold plate while maintaining a compact form factor. MagForce 2.0 pogo-pin connectors reduce alignment faults and let you daisy-chain or quickly connect fans with a single cable, minimizing cable clutter. The included CT120 EX ARGB Sync fans deliver up to 68 CFM airflow and 2.95 mm-H2O static pressure at noise levels around 28.5 dB-A. The 2.1" high-resolution LCD is customizable via TT RGB Plus 2.0 and the lighting can sync with major motherboard RGB software (ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome) using a 5V ARGB header.

Suitable for

• CPU cooling in mid-tower and full-tower desktop builds
• Systems requiring a compact radiator with enhanced cooling surface
• Builds where cable management and ARGB synchronization are important

Key specifications

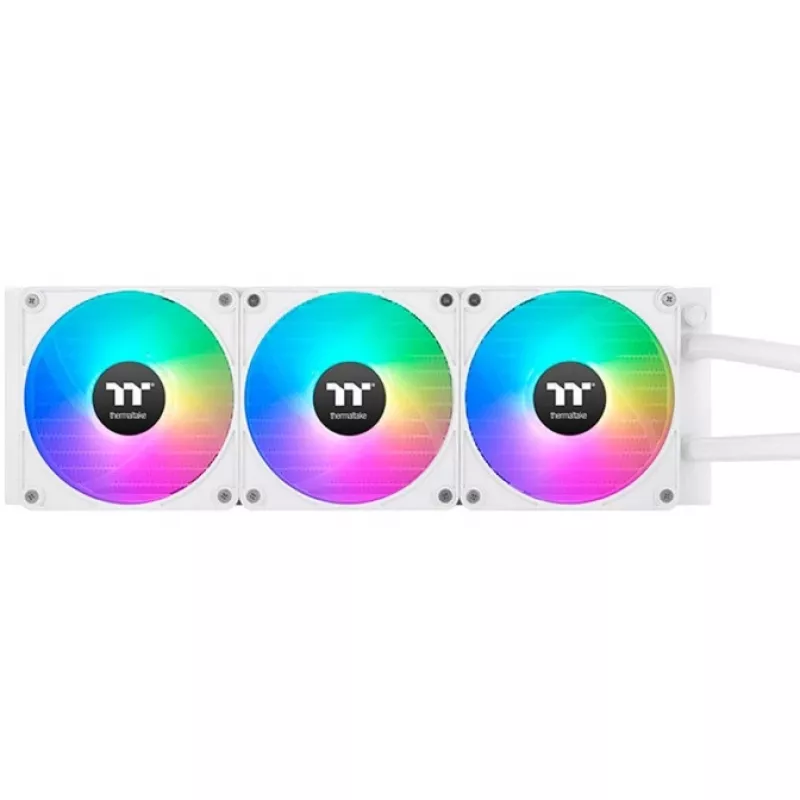

• Fan size: 120 mm (CT120 EX ARGB Sync White)
• Fan speed: 500–2000 RPM
• Airflow: 68 CFM
• Static pressure: 2.95 mm-H2O
• Noise level: 28.5 dB-A
• Radiator thickness: 27 mm (slim)
• Copper chamber thickness: 20 mm
• LCD display: 2.1" (480×480), 16.8M colors
• RGB control: TT RGB Plus 2.0 and motherboard 5V ARGB header compatibility
• Color: White

How to use

Install the radiator and fans into a compatible chassis mounting location (360 mm support) following standard AIO cooler mounting procedures. Attach the copper base plate to the CPU with the provided mounting bracket and thermal interface material, then secure the pump unit. Connect the CT EX fans using the MagForce 2.0 quick connect or individual cables included in the package. Plug the pump power and ARGB connectors to the motherboard headers or to the supplied controller. Use TT RGB Plus 2.0 software or your motherboard RGB software to configure the LCD content and lighting effects.

Recommendations

For best results, verify motherboard compatibility with a 5V addressable RGB header before installation, ensure unobstructed airflow in the chassis, and periodically check tubing and fittings for secure connections. Avoid operating the system without sufficient coolant circulation and follow Thermaltake’s installation guide for socket-specific mounting instructions.
