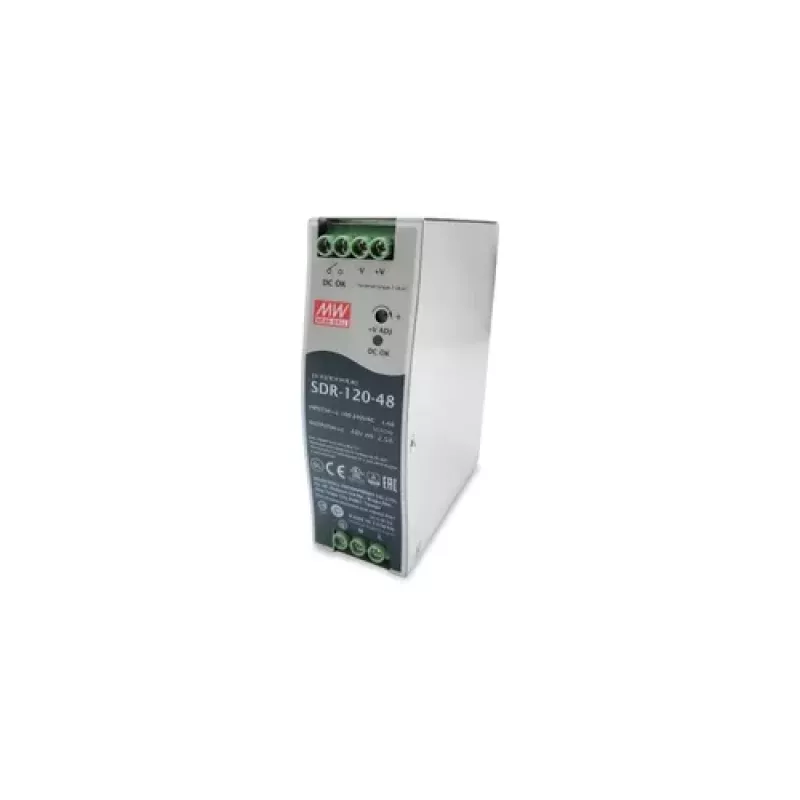

Allied Telesis AT-SDR120-48 DIN-rail voeding 48V 120W

The Allied Telesis AT-SDR120-48 is a high-efficiency DIN rail power supply delivering 48V DC at 120W. Designed for industrial environments, it provides reliable power for networking equipment, automation systems, and other 48V devices. With a compact metal housing and convection cooling, it ensures silent operation and long service life.

Advantages

High efficiency >90% reduces energy waste and heat generation. Wide input voltage range (100-240V AC) allows global use. Comprehensive protection features safeguard connected equipment against overload, overvoltage, and short circuits. DIN rail mounting simplifies installation in control cabinets.

Suitable for

• Industrial automation systems
• Network switches and routers
• Security and surveillance equipment
• Telecommunications infrastructure

Key specifications

• Output Voltage: 48V DC
• Output Current: 2.5A
• Output Power: 120W
• Input Voltage: AC 100-240V
• Input Frequency: 47-63Hz
• Mounting: DIN Rail
• Efficiency: >90%
• Protection: Overload, Overvoltage, Short Circuit
• Operating Temperature: -20°C to 70°C
• Cooling: Convection
• Indicators: DC OK LED
• MTBF: >500,000 hours

Recommendations

For optimal performance, use with Allied Telesis switches and industrial equipment requiring 48V DC power. Ensure proper ventilation and mounting on a standard DIN rail.
