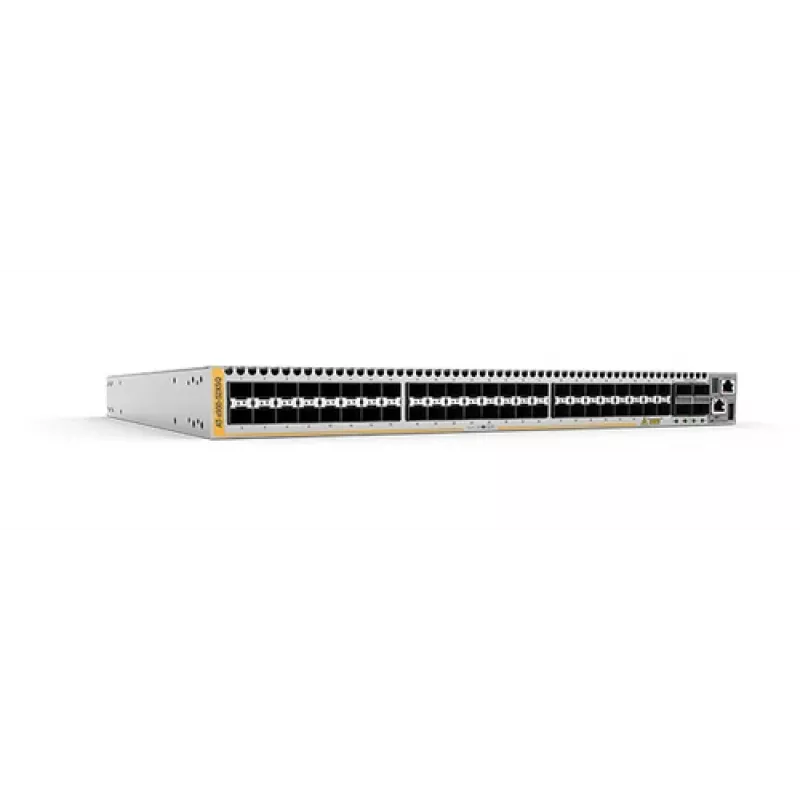

Allied Telesis AT-X950-52XSQ Advanced Layer 3 stackable switch met 48x 10G SFP+ en 4x 40/100G QSFP28

Network bottlenecks and sluggish data transfer can cripple a growing business. The Allied Telesis AT-X950-52XSQ eliminates these constraints with high-density 10 Gigabit connectivity and future-proof 40/100G uplinks, delivering the throughput modern networks demand.

Who is it for

This advanced Layer 3 stackable switch is built for enterprise core and aggregation layers, data centres, and high-performance campus networks. It suits organisations that need reliable, scalable switching with robust management and security features.

Main features

• 48x 10G SFP+ ports for high-speed server and uplink connectivity
• 4x 40/100G QSFP28 ports for flexible, high-bandwidth uplinks
• Advanced Layer 3 routing with static routes, RIP, OSPF, and BGP4
• Stackable architecture for simplified management and resilience
• Comprehensive security with 802.1X, RADIUS, TACACS+, and ACLs
• Hot-swappable power supplies and fan modules for high availability
• Dual software images and configuration files for reliable upgrades

Specifications

• Switching capacity: 2.16 Tbps
• Forwarding rate: 1.607 Bpps
• MAC address table: 128K entries
• VLAN support: 4K VLANs, private VLANs, voice VLANs
• Quality of Service: 8 queues per port, strict priority and WRR scheduling
• Management: Web-based GUI, CLI, SNMP v1/v2c/v3, RMON, sFlow
• Power supply: Dual internal hot-swappable AC PSUs (included)
• Form factor: 1U rack-mountable

Tips

For maximum performance, use Allied Telesis compatible SFP+ and QSFP28 transceivers. Configure link aggregation between switches to increase bandwidth and provide redundancy.
