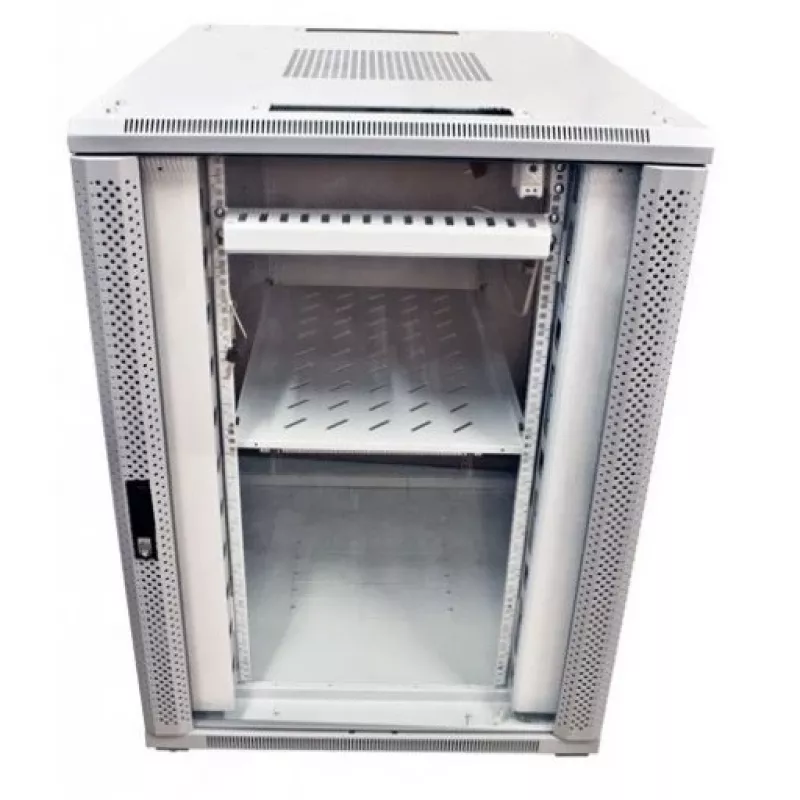

ALLNET 42U 19-inch netwerkkast 800x800mm lichtgrijs met glazen deur SNB-serie

The ALLNET SNB Series network cabinet offers a robust and secure housing solution for your 19-inch rack equipment. With 42U of rack space, 800mm width and depth, and a light grey (RAL 7035) finish, this freestanding cabinet is ideal for data centers, server rooms, and network closets requiring high capacity and professional appearance.

Advantages

High static load capacity of 800 kg supports heavy servers and networking gear. Tempered glass front door allows easy equipment monitoring while maintaining security. Removable, lockable side panels provide convenient access for cable management and maintenance. Depth-adjustable mounting rails accommodate various equipment depths. Passive ventilation with preparation for active fan units ensures optimal cooling.

Suitable for

• Data centers and server rooms requiring 42U of 19-inch rack space
• Network infrastructure installations needing secure, lockable enclosures
• IT professionals seeking a durable, high-capacity cabinet with easy access

Key specifications

• Rack Standard: 19 inch
• Rack Units: 42U
• External Dimensions (WxDxH): 800 x 800 x 2055 mm
• Front Door: Tempered glass, lockable, opens 180°
• Rear Door: Solid steel, lockable
• Color: Light Grey (RAL 7035)
• Material: Steel
• Static Load Capacity: 800 kg
• Protection Class: IP20
• Side Panels: Removable, lockable
• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Front and rear, depth-adjustable
• Ventilation: Passive (prepared for active fan units)
• Delivery State: Flat-packed (disassembled)
• Included Accessories: 4x leveling feet, 4x castors, 20x cage nuts, 2x keys
• Compliance: RoHS, CE

Recommendations

This cabinet is delivered flat-packed for cost-effective shipping. Assembly is required. Ensure adequate space for installation and cable management. For optimal airflow, consider adding optional fan units.
