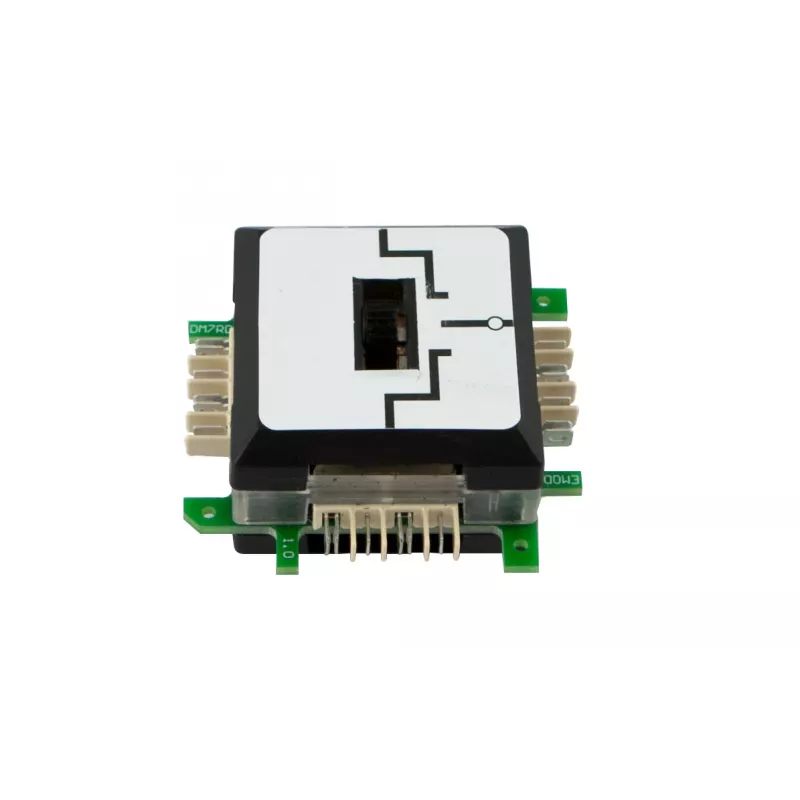

ALLNET ALL-BRICK-0018 6A transistor-schakelmodule

The ALLNET ALL-BRICK-0018 is a high-quality 6A transistor switch module designed for industrial automation and control applications. This single-channel NPN transistor switch module features opto-isolated control input, ensuring reliable and safe switching of loads up to 6A at 48V DC. With DIN rail mounting and screw terminals, it integrates easily into existing control cabinets.

Advantages

Opto-isolated input provides galvanic isolation between control and load circuits, protecting sensitive controllers from voltage spikes. The built-in LED status indicator offers immediate visual feedback on switching state. Short-circuit protection enhances system reliability and reduces downtime.

Suitable for

• Industrial automation systems
• PLC output expansion
• Motor and valve control
• Lighting and heating control
• Signal switching in harsh environments

Key specifications

• Module Type: Transistor Switch Module
• Number of Channels: 1
• Switching Element: NPN Transistor
• Max. Switching Current: 6 A
• Max. Switching Voltage: 48 V DC
• Control Input Voltage: 12 - 24 V DC
• Isolation Type: Opto-isolated
• Mounting Type: DIN Rail
• Connection Type: Screw Terminals
• Status Indicator: LED
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Housing Material: Plastic
• Protection Features: Short-circuit protection
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a regulated 12-24V DC power supply. Ensure load current does not exceed 6A and voltage stays within 48V DC. Suitable for use in industrial environments with proper enclosure.
