ALLNET ALL-SGO83-M22-Blindplug unmanaged outdoor switch 3 poorten Gigabit 100W met 2x M22 blindstop

The ALLNET ALL-SGO83-M22-Blindplug is a rugged, unmanaged outdoor switch designed for reliable network connectivity in harsh environments. With 3 Gigabit Ethernet ports and a total PoE budget of 100W, it powers devices like IP cameras and access points while ensuring stable data transmission. The included 2x M22 blind plugs allow for easy sealing of unused cable entries, maintaining the IP67 rating. Ideal for industrial and outdoor installations, this switch offers fanless operation, wide temperature tolerance, and surge protection.

Advantages

Robust IP67 housing protects against dust and water immersion. Fanless design ensures silent operation and reduced maintenance. Redundant DC power input (48-57V) enhances reliability. Supports PoE/PoE+ (IEEE 802.3af/at) for flexible device powering. Includes M22 blind plugs for weatherproof sealing.

Suitable for

• Outdoor surveillance systems
• Industrial automation networks
• Remote monitoring stations
• Smart city infrastructure

Key specifications

• Switch type: Unmanaged
• Ports: 3 x 10/100/1000 Mbps Gigabit Ethernet
• PoE standard: IEEE 802.3af/at (PoE/PoE+)
• Total PoE budget: 100 W
• IP rating: IP67
• Housing material: Die-cast aluminum
• Operating temperature: -40°C to 75°C
• Power input: Redundant DC 48-57V
• MAC address table: 8K entries
• Jumbo frame support: Up to 9K bytes
• Forwarding mode: Store-and-Forward
• Cooling: Fanless
• Surge protection: 6KV
• ESD protection: 8KV contact / 15KV air
• Mounting: Wall mount, DIN rail (optional)

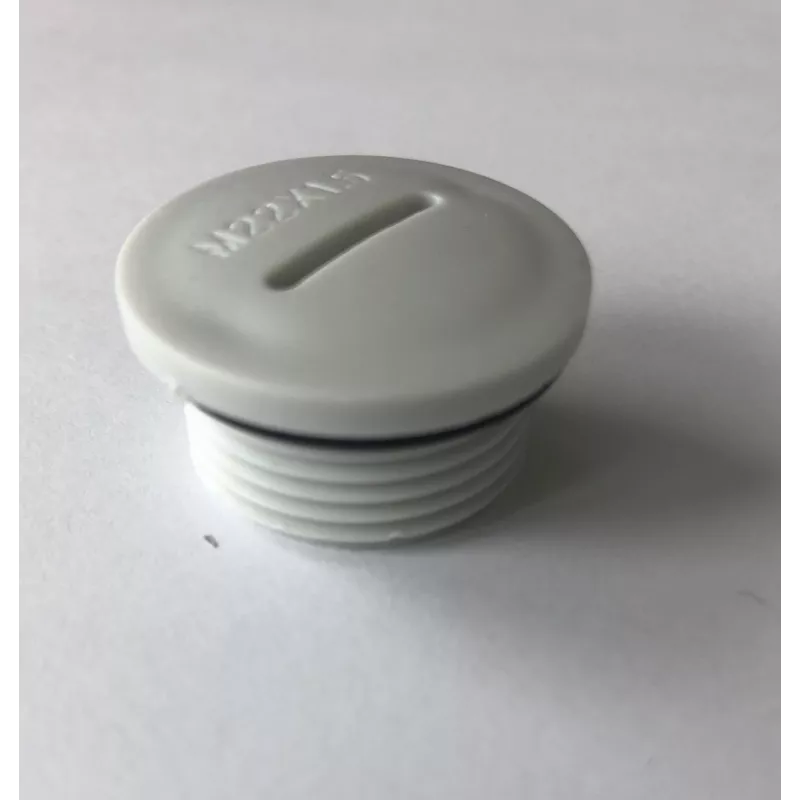

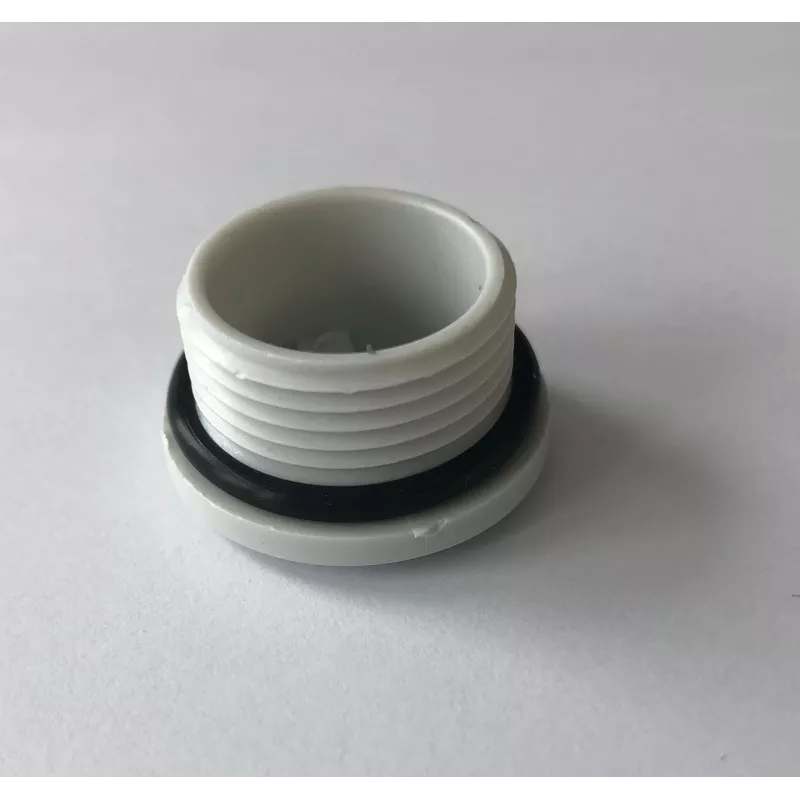

• Included accessories: 2x M22 blind plugs

Recommendations

For optimal performance, use a regulated DC power supply (48-57V) and ensure proper grounding. The M22 blind plugs should be installed on unused ports to maintain IP67 integrity. Suitable for outdoor cabinets, poles, and walls.
