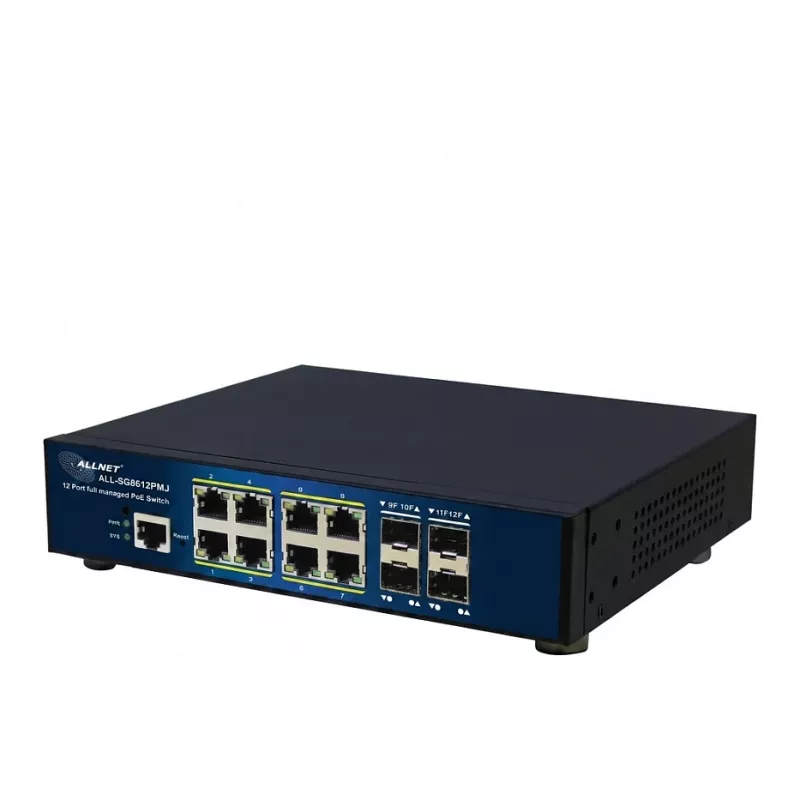

ALLNET Fully Managed Layer 2+ switch, 12 poorten, 8x GbE PoE+ 300W, 4x SFP, rackmount (ALL-SG8612PMJ)

The ALLNET ALL-SG8612PMJ is a fully managed Layer 2+ switch designed for small to medium businesses and enterprise edge networks. It offers 12 ports including 8 Gigabit Ethernet PoE+ ports with a total PoE budget of 300W, plus 4 SFP slots for fiber uplinks. The switch supports advanced management features such as VLAN, QoS, ACL, and SNMP, making it ideal for IP surveillance, VoIP, and wireless access point deployments.

Advantages

High PoE budget of 300W supports power-hungry devices like PTZ cameras and high-performance access points. Fanless design ensures silent operation in office environments. Layer 2+ management provides enhanced security and traffic control. Compact 1U rackmount form factor saves space.

Suitable for

• IP surveillance systems with multiple PoE cameras
• VoIP phone deployments
• Wireless LAN with PoE access points
• Small to medium business networks requiring advanced management

Key specifications

• 12 ports: 8x 10/100/1000Base-T (PoE+) + 4x 1000Base-X SFP
• PoE budget: 300W, IEEE 802.3af/at
• Switching capacity: 24 Gbps
• Forwarding rate: 17.85 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9 KB
• VLAN: 802.1Q, port-based, protocol-based
• QoS: 8 queues, 802.1p, DSCP
• Security: ACL, port security, 802.1X, DHCP snooping
• Management: CLI, web GUI, SNMP v1/v2c/v3, RMON
• Power: internal AC 100-240V
• Mounting: 19-inch rackmount (1U)
• Dimensions: 440 x 208 x 44 mm
• Operating temperature: 0°C to 50°C

Recommendations

For optimal performance, use Category 6 or higher cabling for Gigabit connections. Ensure adequate ventilation in the rack. The switch supports both desktop and rackmount installation.
