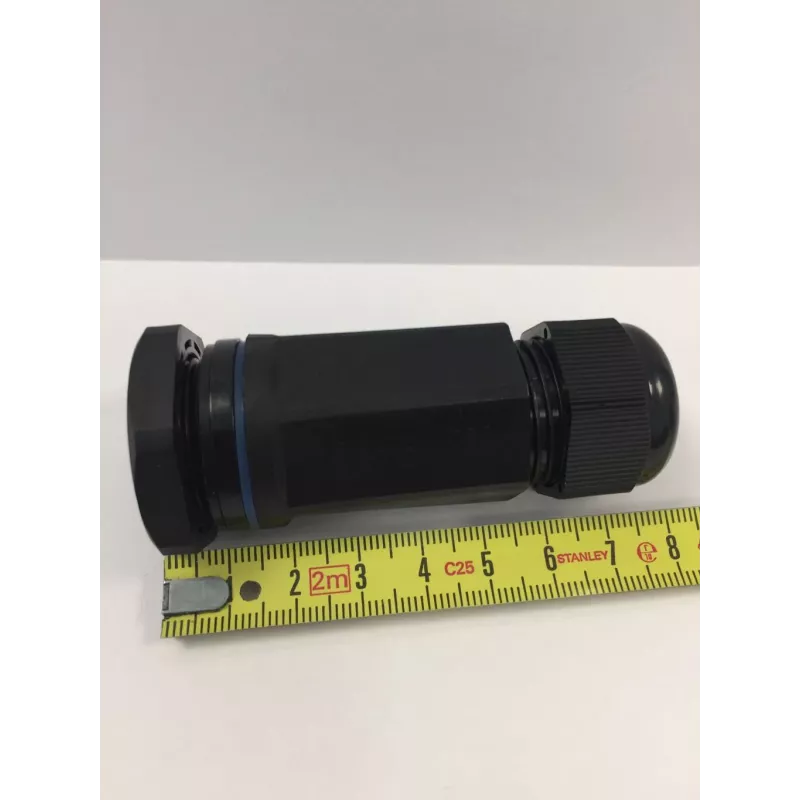

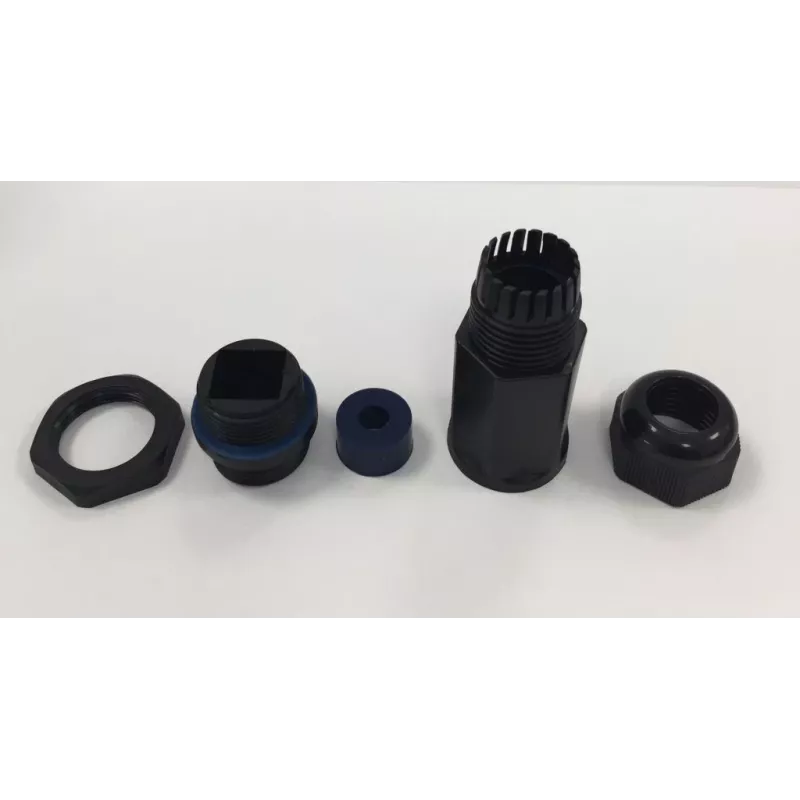

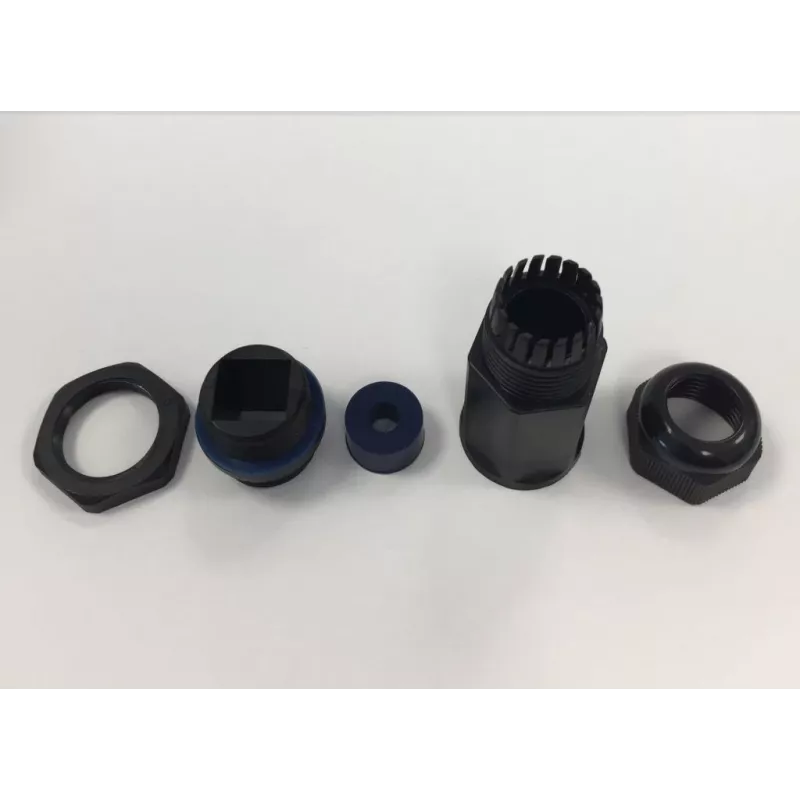

ALLNET installatie-kabelwartel M25x1,5 zwart IP68 lang

The ALLNET ALL-CAB-KV-01-L is a high-quality cable gland designed for secure and reliable cable entry in industrial and commercial installations. With a metric M25 thread and 1.5 mm pitch, this long version provides a clamping range of 13-18 mm and an IP68 rating for dust-tight and waterproof protection. Made from durable polyamide PA6 with an NBR seal, it offers excellent resistance to pressure, UV, and extreme temperatures.

Advantages

This cable gland ensures a tight seal against dust and water ingress, making it suitable for harsh environments. Its long design allows for thicker panels or additional clearance. The halogen-free, UV-resistant material and UL94 V-2 flammability rating enhance safety and longevity.

Suitable for

• Industrial control cabinets
• Outdoor electrical enclosures
• Automation and machinery installations
• Solar and renewable energy systems
• Marine and offshore applications

Key specifications

• Product Type: Cable Gland
• Thread Size: M25 x 1.5 mm
• Clamping Range: 13 - 18 mm
• IP Rating: IP68
• Material: Polyamide PA6, NBR Seal
• Color: Black (RAL 9005)
• Operating Temperature: -40°C to +100°C (static), -20°C to +80°C (dynamic)
• Pressure Resistance: Up to 10 bar
• Certifications: CE, RoHS, REACH

Recommendations

For optimal performance, ensure the panel hole is properly sized and the gland is tightened to the recommended torque. Use with appropriate lock nuts for added security.
