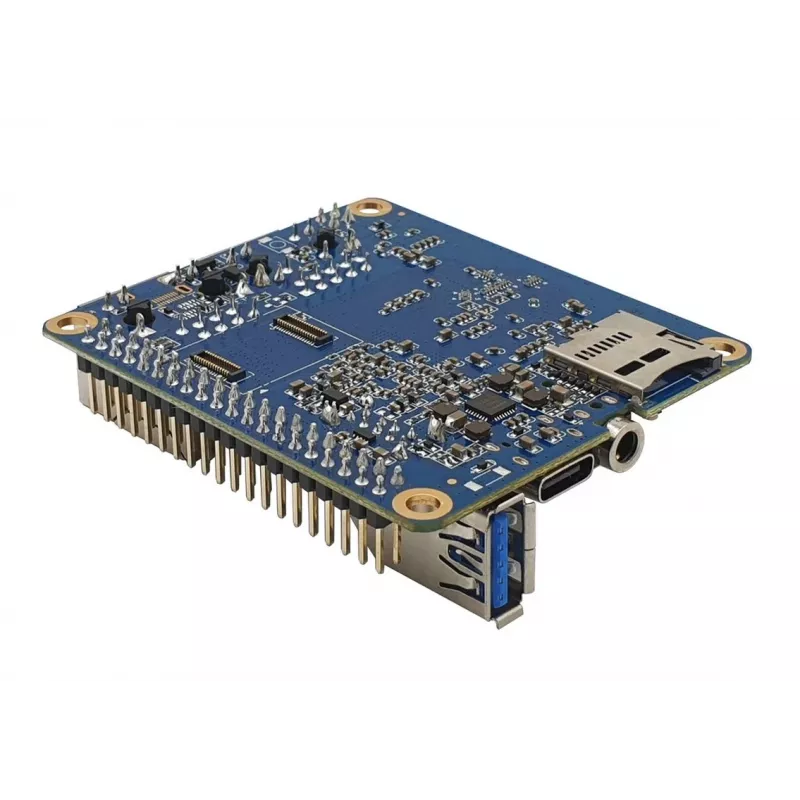

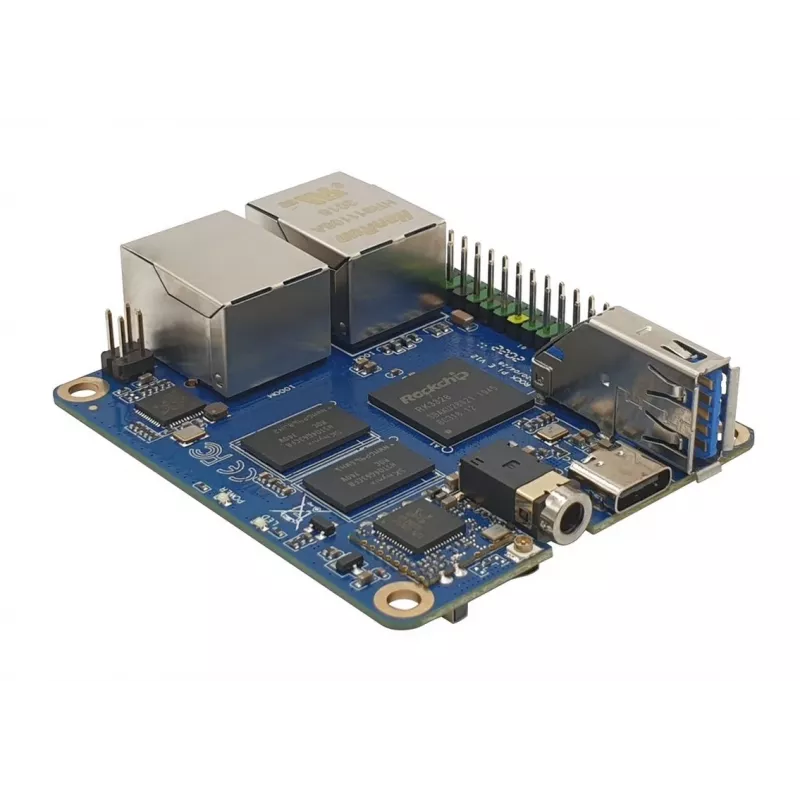

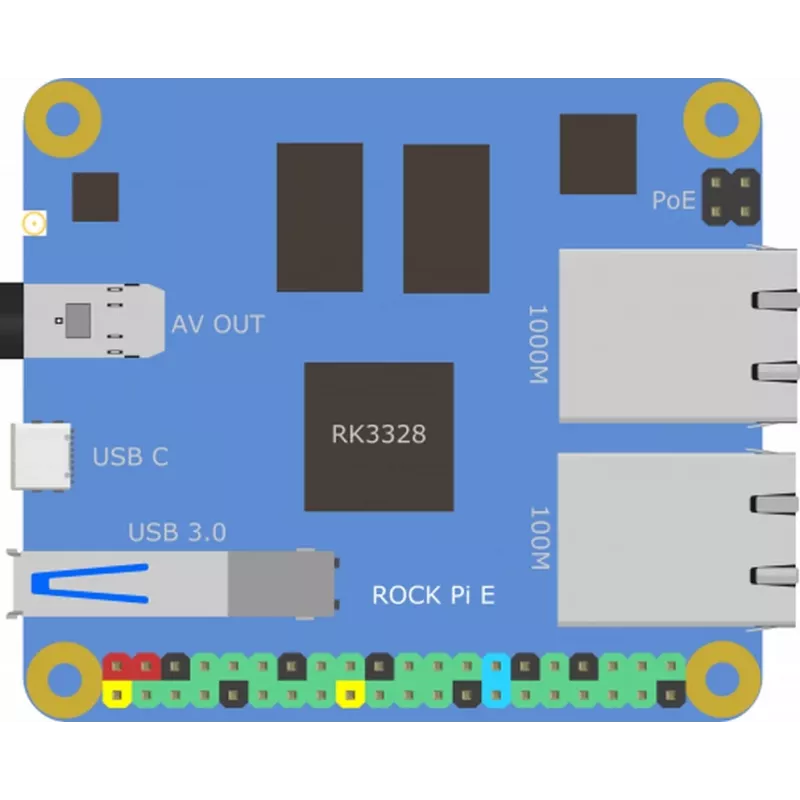

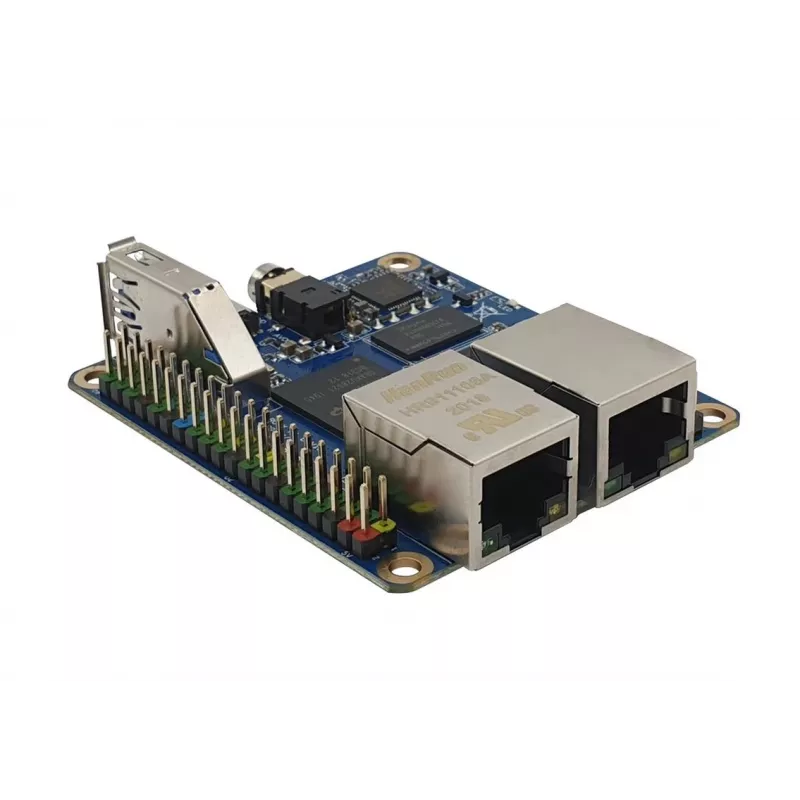

ALLNET Rock Pi E D8P dual-ethernetboard RK3328 1GB RAM zonder Wi-Fi/BT PoE

For developers and IoT enthusiasts building network-centric projects, the ALLNET Rock Pi E D8P offers a compact yet powerful platform. This single-board computer features a Rockchip RK3328 quad-core processor and 1GB RAM, making it ideal for edge computing, network appliances, and automation tasks. With dual Gigabit Ethernet and PoE support, it's perfect for creating custom routers, firewalls, or network-attached storage solutions.

Key specifications

• SoC: Rockchip RK3328, quad-core ARM Cortex-A53
• GPU: Mali-450 MP2
• RAM: 1GB DDR3
• Ethernet: 2x Gigabit LAN ports
• PoE: IEEE 802.3af/at (Power over Ethernet)
• Wireless: Not included (no Wi-Fi/BT)
• USB: 1x USB 2.0 Type-A, 1x USB Type-C (OTG/power)
• Storage: MicroSD slot, eMMC connector
• GPIO: 26-pin header
• Power: USB-C (5V DC) or PoE
• OS: Debian, Ubuntu, Android, Armbian

Why choose it

The Rock Pi E D8P stands out with its dual Gigabit Ethernet ports, enabling high-bandwidth networking applications that many SBCs lack. Its PoE capability simplifies deployment by allowing power and data over a single cable, reducing wiring clutter. The board's low power consumption and headless design make it a reliable choice for always-on server roles.

Ideal use cases

• Custom network router or firewall
• Network-attached storage (NAS) for small offices
• IoT gateway for sensor data aggregation
• Edge computing node for AI inference
• Development platform for embedded Linux projects

Good to know

This version does not include Wi-Fi or Bluetooth; plan for wired connectivity or add a USB adapter if needed. The board is designed for headless operation (no video output), so it's best used in server or remote configurations. With PoE, ensure your switch provides 802.3af/at power. The 1GB RAM is sufficient for lightweight tasks, but for heavier workloads consider higher RAM variants.
